FISCHER ELEKTRONIK

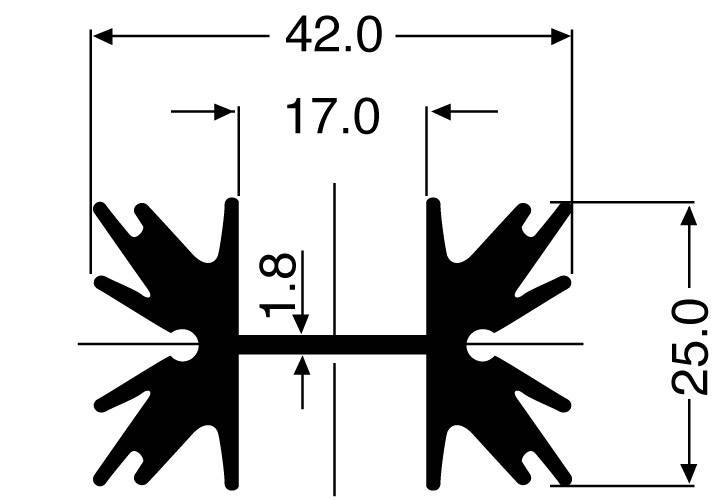

Fischer Elektronik 10019199 SK 129 50,8 STS Pin heat sink 4 K/W (L x W x H) 50 x 42 x 25 mm TO 220, SOT 32

Technical drawing with dimensional specifications of a symmetrical form: Width 42 mm, Opening 17 mm, and Height 25 mm.

Delivery time: 3-4 days

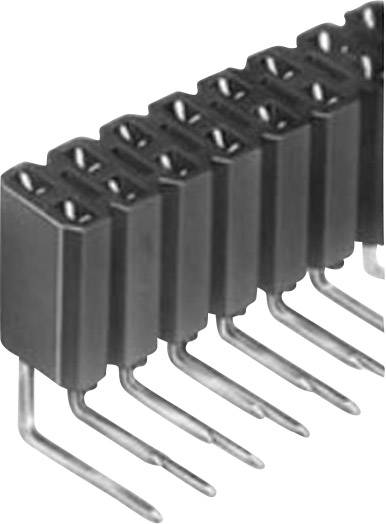

Fischer Elektronik Socket Strip

A black, vertical plug connector with multiple metal pins arranged in a row. Suitable for electronic connections.

Content 1 pc(s)
No. of rows 2
Pins per row 10

Delivery time: 3-4 days

Fischer Elektronik 10022554 SK 75 50 Heat sink 4.5 K/W (L x W x H) 50 x 32 x 14 mm TO 220, TO 126

(1)

'Type A' is a technical diagram showing the cross-sectional dimensions of a component. Width: 32mm, Height: 14mm, Central width: 17.78mm.

Ideal heat sink for voltage regulators, transistors, thyristors, triacs, etc.

Delivery time: 3-4 days

Fischer Elektronik Transistor bracket

A metal clip attached to a smooth surface with three long, thin pins protruding underneath.

Snap-in transistor retaining springs THFU 5 for transistor design TO 218, TO 220, TO 247, TO 264.

Delivery time: 3-4 days

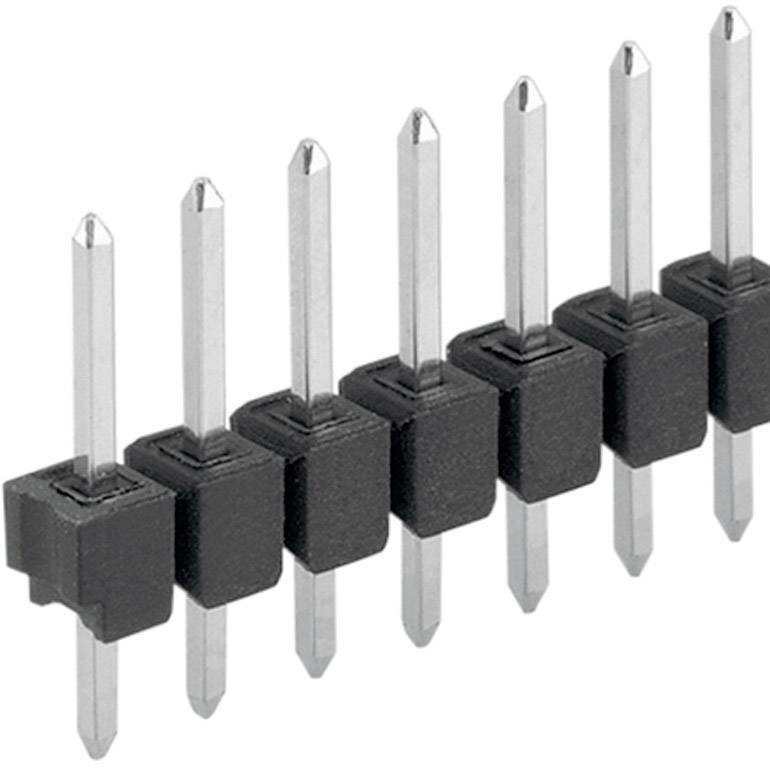

Fischer Elektronik SL 11/139/ 36/Z

(4)

Several straight pins, vertically arranged and separated by black plastic mounting brackets, suitable for electronic connectors.

Content 1 pc(s)
No. of rows 1
Pins per row 36

Currently not available

Fischer Elektronik 10101602 SK 482 50 SA + 2x THFU 2 Fin heat sink 4.75 K/W (L x W x H) 50 x 33 x 35 mm TO 218, TO 220, TO 3P, TO

(2)

Technical drawing of a heatsink with dimensions: 35mm height, 25mm length, 10.3mm upper width, 8mm lower width, M3 thread.

Delivery time: 3-4 days

while stocks last

Fischer Elektronik 10042818

Black pin header connector with five pins, suitable for electronic connections.

Content 1 pc(s)
No. of rows 1
Pins per row 20

Delivery time: 3-4 days

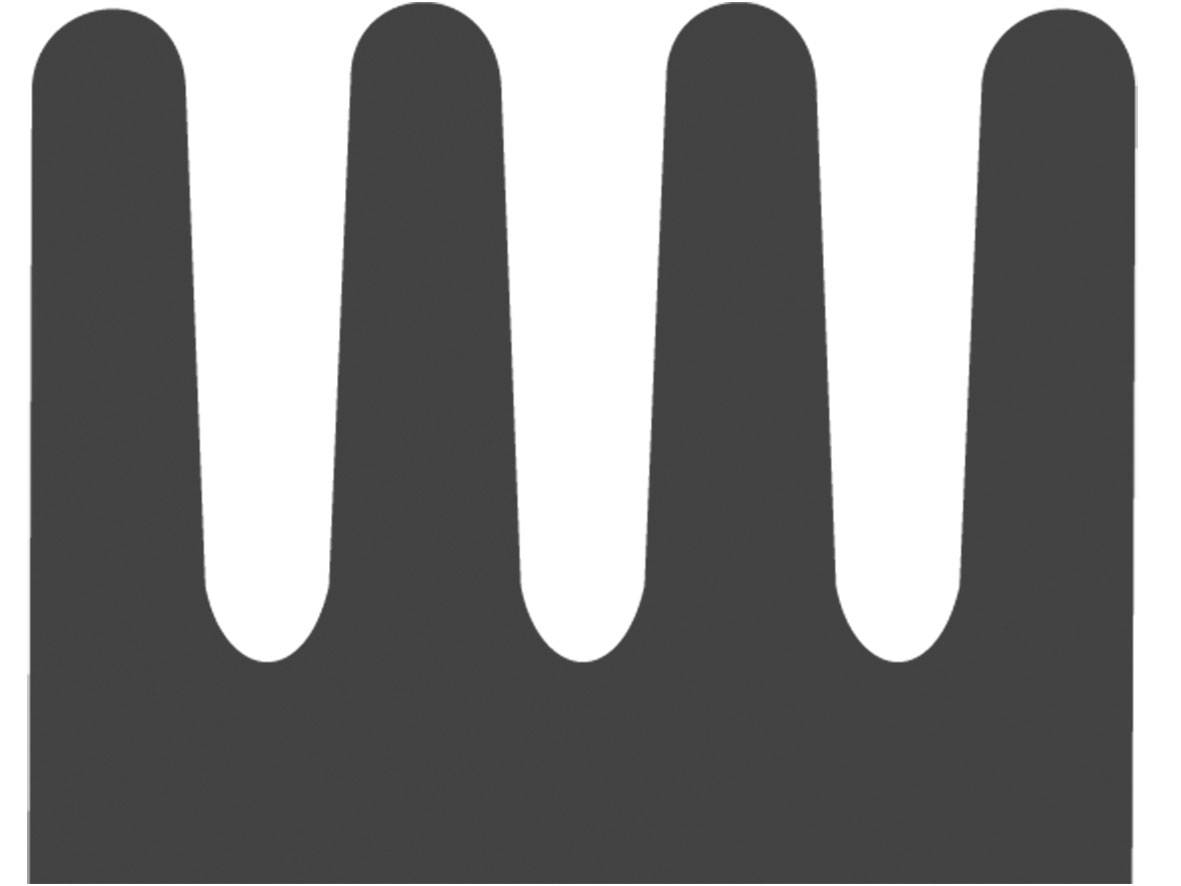

Fischer Elektronik 10037135 ICK SMD A 13 SA SMD heat sink 63 K/W (L x W x H) 13 x 6.3 x 4.8 mm

(1)

Fischer Elektronik 10037135 ICK SMD A 13 SA SMD heat sink 63 K/W (L x W x H) 13 x 6.3 x 4.8 mm

Low design, reduced weight and effective heat conductivity.

Delivery time: 3-4 days

Fischer Elektronik 10134499 SK 638 50 SA Fin heat sink 10.5 K/W (L x W x H) 50 x 10.3 x 40 mm

A black semiconductor chip with three metal legs, mounted on a heatsink, for heat dissipation in electronic devices.

Profile pressed thread

Delivery time: 3-4 days

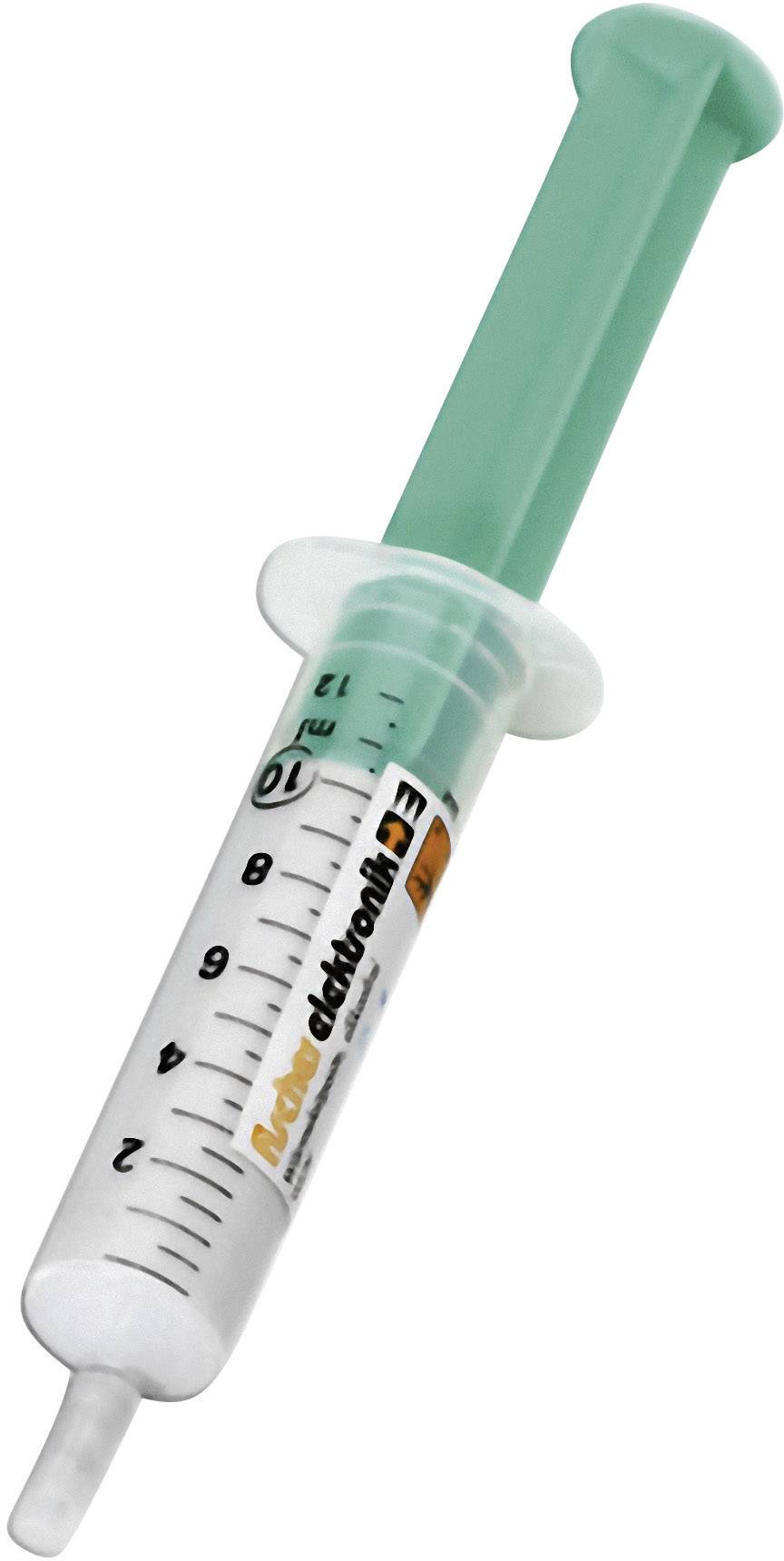

Fischer Elektronik WLPK 10 Thermally conductive paste 10 W/mK 10 ml Max. temperature: 150 °C

(1)

A white syringe with a green cap, marked with a scale and lettering on the side, is lying sideways.

Thermal conductivity 10 W/mK
Silicone-free

Currently not available

Fischer Elektronik 10019215 SK 13 35 SA-220 Heat sink 17 K/W (L x W x H) 35 x 17 x 13 mm TO 220

(9)

Fischer Elektronik 10019215 SK 13 35 SA-220 Heat sink 17 K/W (L x W x H) 35 x 17 x 13 mm TO 220

Currently not available

Fischer Elektronik Suitable for: TO 220 (L x W x H) 22.1 x 10.2 x 10.7 mm

(1)

Technical Drawing of a Conical Object with Dimensions: Width 10.67, Height 22.1, Diameter 7.87, Thickness 0.6 and 2.54

Material thickness 0.8 mm

Currently not available
