MEAN WELL

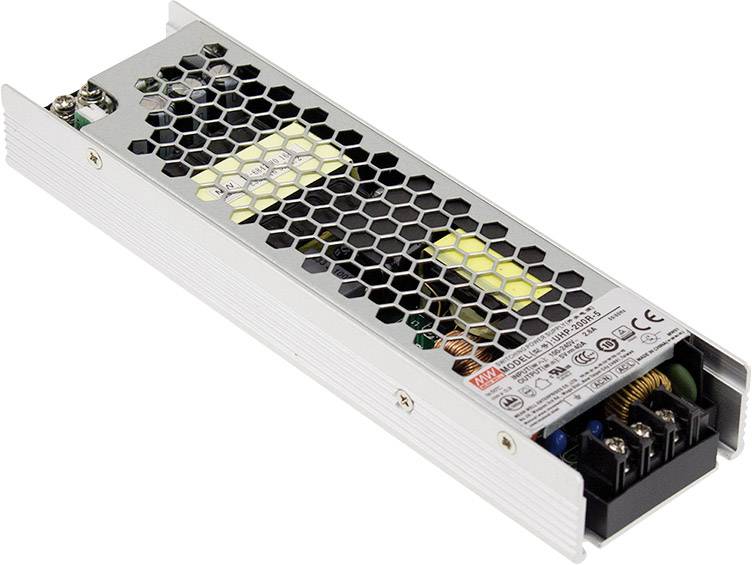

MEAN WELL UHP-200R-12 SMPSU 12.6 V DC 16.7 A 200.4 W

A rectangular power supply unit with a metal casing and honeycomb ventilation, showing markings and connection terminals on one side.

Closed type (U-bracket) · Universal input · Overload protection by switching off, auto recovery · Protected against short circuit, overload, overvoltage, excess temperature · Built-in PFC circuit · DC-OK signal and redundancy function · EN61000-3-2,-3, EN55032, EN60950-1

Delivery time: 3-4 days

MEAN WELL GSM220A12-R7B Bench PSU (fixed voltage) 12 V DC 15 A 180 W

Black laptop power adapter with mains connection and round plug.

Bench power supply unit · Universal input · Protected against short circuit, overload, over voltage · Insulation class I · For applications in medical technology EN 60601-1 (2x MOP Level) · Energy efficiency level VI (DOE)

Delivery time: 3-4 days

Mean Well ELG-200-42-3Y LED driver Constant voltage, Constant current 199.9 W 4.76 A 42 V DC Suitable for flammable surfaces

A rectangular LED power supply with clearly marked 'Input' and 'Output' terminals and technical specifications on the label.

Protective conductor carried out in the primary cable · Constant current and constant voltage· Independant operating device · Wide-range input. · Metal housing · Overload protection through current limitation, auto recovery · Protected against short circuit, overload, overvoltage, excess temperature · Built-in PFC circuit · Suitable for LED lighting applications · Corresponds to 6kV Surge Immunity Level

Currently not available

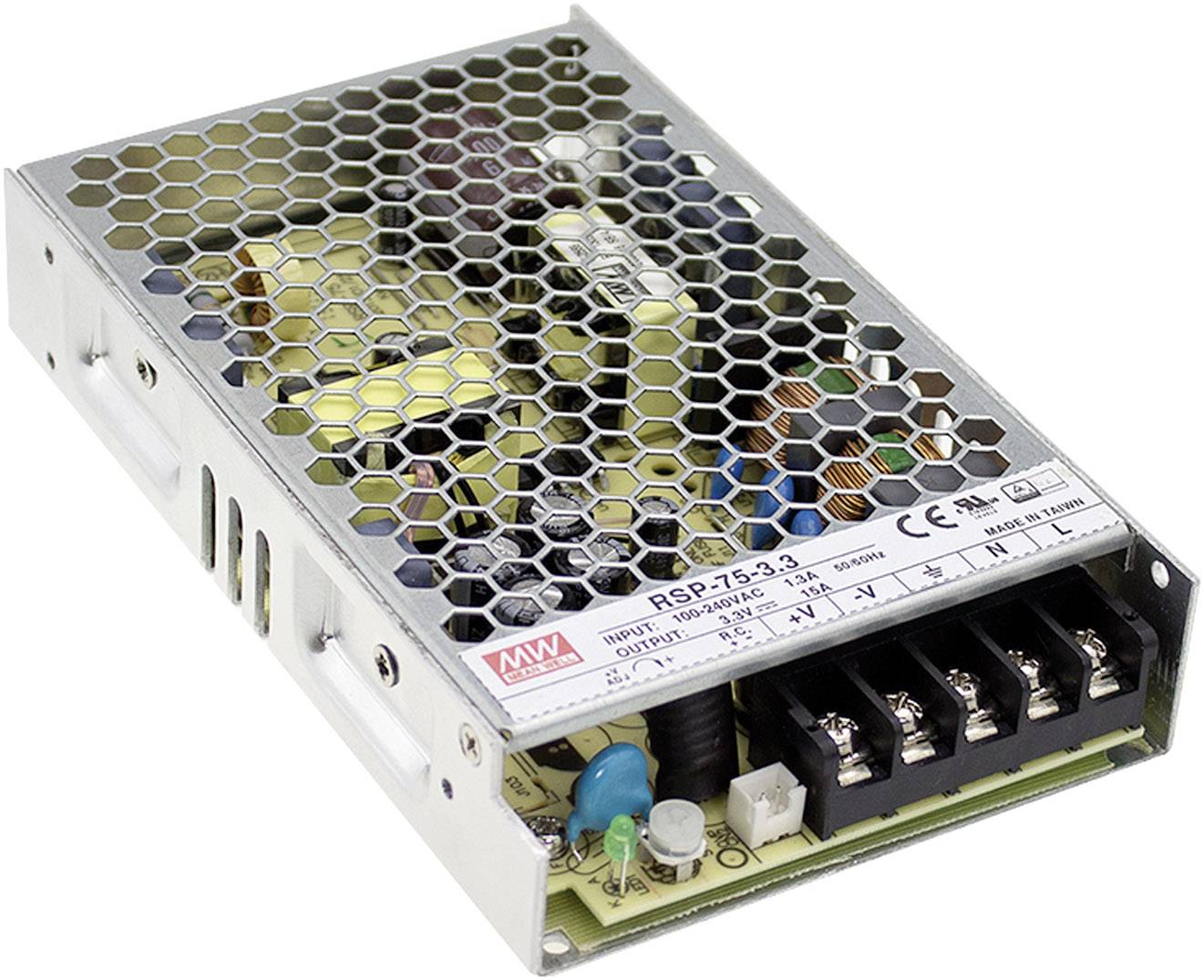

Mean Well RSP-75-12 AC/DC PSU module (+ enclosure) 6.3 A 75 W 12 V DC 1 pc(s)

Output voltage (max.) 12 V DC
Max. output current 6.3 A

Currently not available

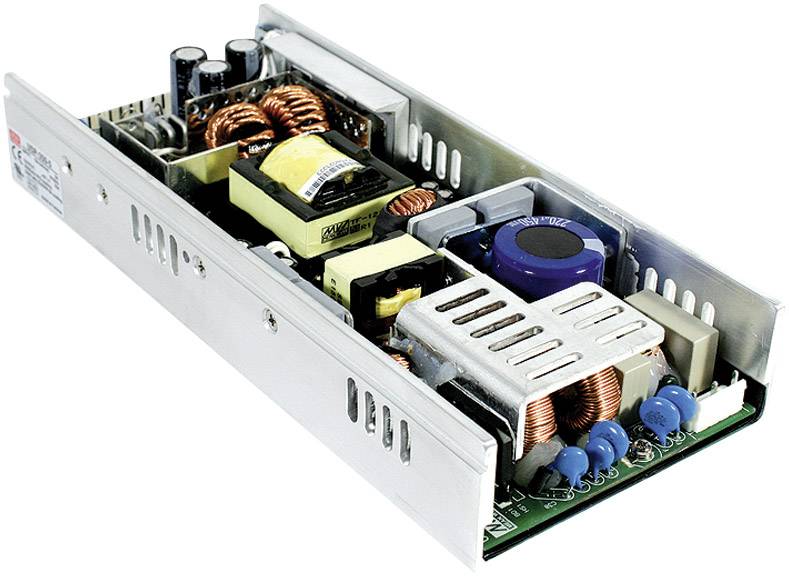

Mean Well USP-350-48 AC/DC PSU module (open frame) 48 V DC 6.25 A

Mean Well USP-350-48 AC/DC PSU module (open frame) 48 V DC 6.25 A

Open frame (U-bracket) · Contact pin for nylon-crimp terminals · Universal input · Overload protection, current limiting, ...

Currently not available

Mean Well ELG-100-36DA-3Y LED driver Constant current, Constant voltage 95.76 W 2.66 A 36 V DC DALI, Suitable for flammable

Mean Well ELG-100-36DA-3Y LED driver Constant current, Constant voltage 95.76 W 2.66 A 36 V DC DALI, Suitable for flammable

DALI interface · Protective conductor carried out in the primary cable · Constant current, constant voltage · Independant operating device · Wide-range input. · Metal housing · Overload protection through current limitation, auto recovery · Protected against short circuit, overload, overvoltage, excess temperature · Built-in PFC circuit · Suitable for LED lighting applications · Corresponds to 6kV Surge Immunity Level

Currently not available

Mean Well LED driver Constant current 74.9 W 175 - 350 mA 107 - 214 V DC Suitable for flammable surfaces, Approved for use on

Mean Well LED driver Constant current 74.9 W 175 - 350 mA 107 - 214 V DC Suitable for flammable surfaces, Approved for use on

Current limitation can be set via internal potentiometer on the bottom of the housing · Constant current · Protective conductor carried out in the primary cable · Independant operating device · Wide-range input. · Metal housing · Overload protection through current limitation, auto recovery · Protected against short circuit, overload, overvoltage, excess temperature · Built-in PFC circuit · Suitable for LED lighting applications · SELV compliant · Corresponds to 6kV Surge Immunity Level

Currently not available

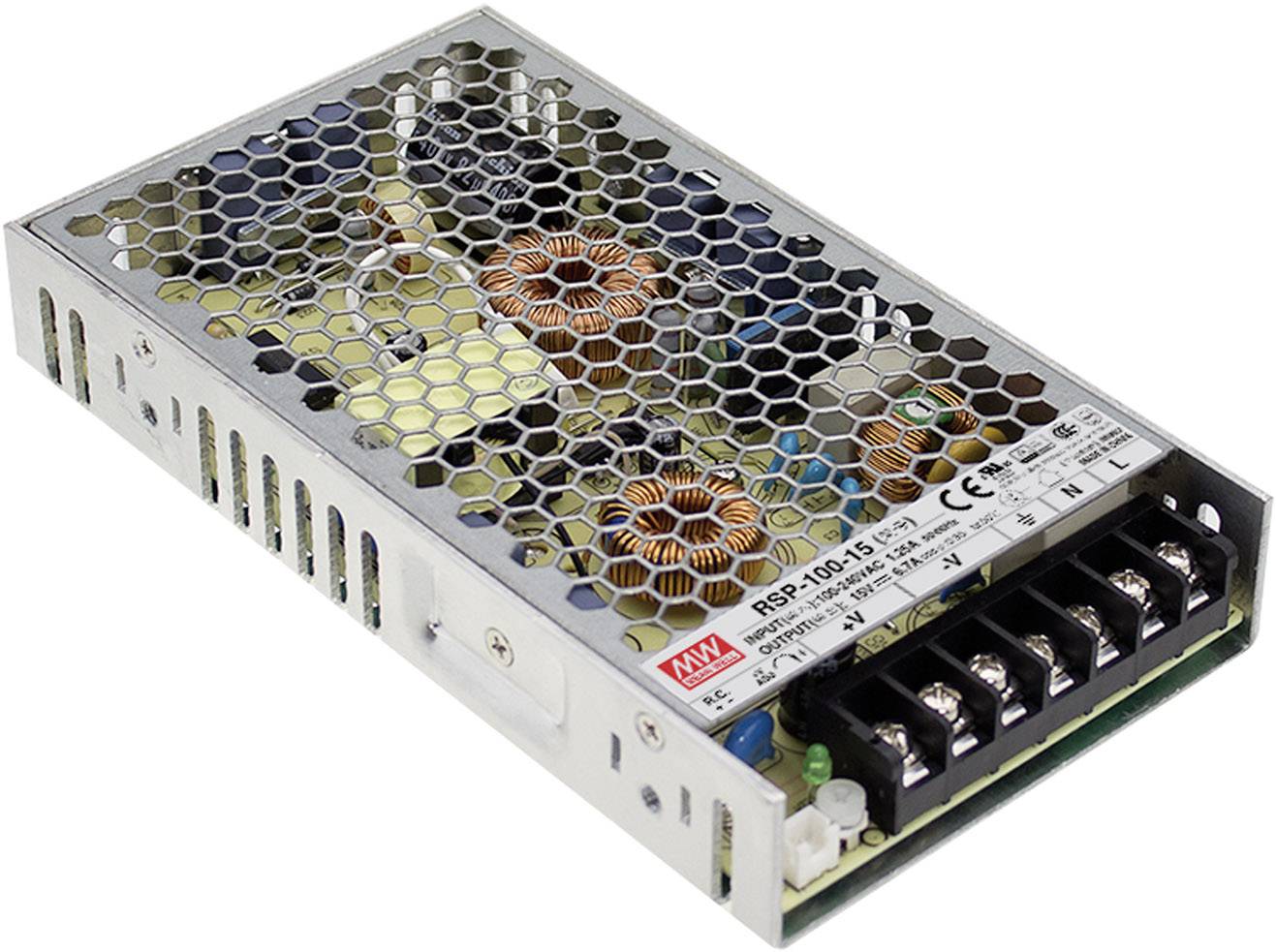

Mean Well RSP-100-48 AC/DC PSU module (+ enclosure) 2.1 A 100 W 48 V DC 1 pc(s)

(5)

Metal-encased power supply unit with a ventilation grid, suitable for industrial applications.

Output voltage (max.) 48 V DC
Max. output current 2.1 A

Currently not available

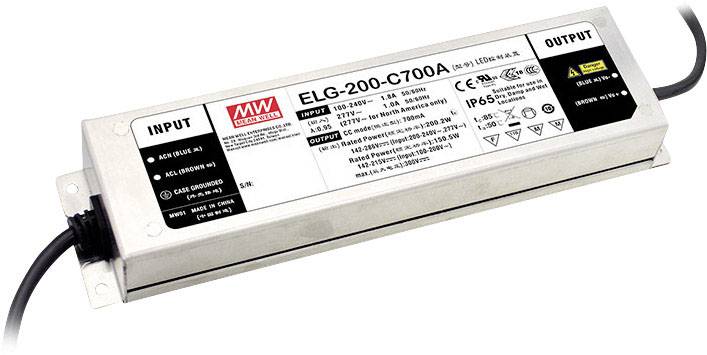

Mean Well LED driver Constant current 199.5 W 525 - 1050 mA 95 - 190 V DC Suitable for flammable surfaces, Approved for use on

Mean Well LED driver Constant current 199.5 W 525 - 1050 mA 95 - 190 V DC Suitable for flammable surfaces, Approved for use on

Current limitation can be set via internal potentiometer on the bottom of the housing · Protective conductor carried out in the primary cable · Constant current · Independant operating device · Wide-range input. · Metal housing · Overload protection through current limitation, auto recovery · Protected against short circuit, overload, overvoltage, excess temperature · Built-in PFC circuit · Suitable for LED lighting applications · Corresponds to 6kV Surge Immunity Level

Currently not available

MEAN WELL MDD01N-15 DC/DC converter (module) 34 mA 1 W No. of outputs: 2 x Content 1 pc(s)

'Black, rectangular electronic component with the inscription 'MEAN WELL MDD01N-05'. Shows connections for Vin, Com, -Vo, and +Vo.'

SIP7/SIL7-casing · Input/output insulation 6000 V DC or 4200 V DC (reinforced insulation) · Medical Safety Approved (1x MOP/2x MOP) (ANSI/AAMI IT 60601-1) · Low patient leakage (below 2 µA) · Efficiency up to 82% · Short-circuit-proof (max. 3 s) · Low Cost

Delivery time: 3-4 days

MEAN WELL RS-50-24 SMPSU 24 V DC 2.2 A 52 W

(11)

Metallic power supply with multiple screw terminals, labelled with '+V', '-V' and 'COM'. Primarily used for electronic devices.

Output 24 V DC / 2.2 A
Power 52 W
Screw terminal

Delivery time: 3-4 days

Mean Well DKA30B-15 DC/DC converter 30 W No. of outputs: 2 x Content 1 pc(s)

Mean Well DKA30B-15 DC/DC converter 30 W No. of outputs: 2 x Content 1 pc(s)

2" x 1.8" housing · For direct PCB mounting · Wide input voltage range 2:1 · DC decoupling of input and output · Built-in ...

Currently not available
