MEAN WELL

MEAN WELL PWM-200-48KN LED driver 200.1 W 4.17 A 48 V 1 pc(s)

48 V
4.17 A

Delivery time: 3-4 days

MEAN WELL UHP-1000-48 SMPSU 48 V DC 21 A 1008 W

A rectangular, ventilated power supply with a metal mesh cover and visible electronic components on the open side.

Closed design (U-bracket) · Wide-range input · Slim and thin profile (41 mm) · Fan-less design, cooling by free air convection · Built-in PFC circuit · Protected against short circuit, overload, overvoltage, overheating · Operating altitude up to 5000 m · LED display for switching on · EN 60335-1, EN 61558-1

Delivery time: 3-4 days

MEAN WELL NPF-90-12 LED driver, LED transformer Constant voltage, Constant current 90 W 7.5 A 7.2 - 12 V DC not dimmable, PFC

A rectangular electrical power supply with labelling and two cables at the ends. Mains socket compatible, model 'NPF-60-24'.

Constant voltage, Constant current
7.2 - 12 V DC
7.5 A

Delivery time: 3-4 days

MEAN WELL ELG-75-C1050B-3Y LED driver Constant current 74.55 W 1050 mA 35 - 71 V DC 3-in-1 dimmer, dimmable, Suitable for

MEAN WELL ELG-75-C1050B-3Y LED driver Constant current 74.55 W 1050 mA 35 - 71 V DC 3-in-1 dimmer, dimmable, Suitable for

IP67 · Dimming via running control cable, 3 in 1 dimming function (0...10 V DC, PWM, 100k ohm potentiometer) · In the primary cable running protective conductor · Constant current · Independent operating device · Wide-range input · Metal housing · Overload protection through current limitation, auto recovery · Protected against short circuit, overload, overvoltage, overheating · Built-in PFC circuit · Suitable for LED lighting applications · SELV compliant · Safety Standards: EN 61347-1, EN 61347-2-13 and other
· Emc Standards: EN55015, EN61000-3-2 Class C, EN 61000-3-3, EN61547 and other · Corresponds to 6 kV surge immunity level

Currently not available

Mean Well SD-100C-5 DC/DC converter 100 W No. of outputs: 1 x Content 1 pc(s)

Mean Well SD-100C-5 DC/DC converter 100 W No. of outputs: 1 x Content 1 pc(s)

Enclosed case, screw terminals · Overload protection, pulsing hiccup shutdown, auto recovery · Wide input voltage range 2:...

Currently not available

MW Mean Well HLG-100H-36A LED driver, LED transformer Constant voltage, Constant current 95 W 2.65 A 36 V DC PFC circuit, Surge

(13)

Output 36 V DC/2.65 A
Constant voltage, Constant current
95 W Power

Currently not available

MEAN WELL EPS-65S-12 SMPSU 13.2 V DC 5.96 A 65 W

(1)

Electronic switched-mode power supply module with various components such as capacitors and inductors mounted on a printed circuit board.

Open design (open frame) · Compact design, 3'' x 2'' · Pin strip connections for nylon crimp connectors · Universal input · Overload protection by switching off, auto recovery · Protected against short circuit, overload, over voltage · Low idle power

Delivery time: 3-4 days

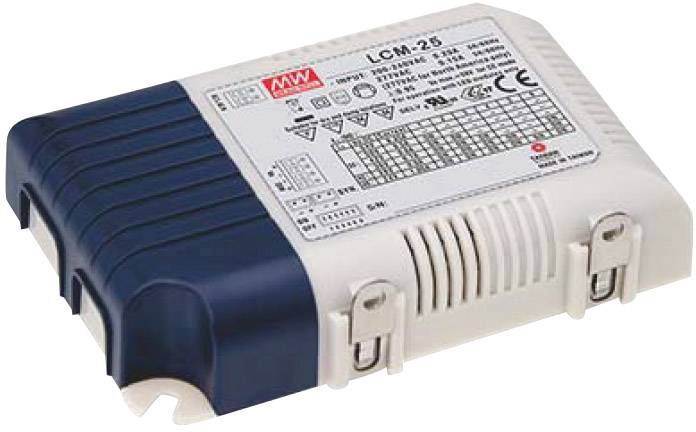

MEAN WELL LCM-25 LED driver Constant current 25 W 0.35 - 1.05 A 6 - 54 V DC PFC circuit, Surge protection, dimmable 1 pc(s)

(3)

A rectangular electronic device with stickers and technical information, most likely an LED driver or transformer.

Constant current
6 - 54 V DC
0.35 - 1.05 A

Delivery time: 3-4 days

MEAN WELL EPP-500-15 SMPSU 15 V DC 33.3 A 499.5 W

An open electronics circuit board with multiple electrical components, including transformers, inductors and capacitors.

Open design (open frame) · Compact design, 5'' x 3'' · Pin strip connections for nylon crimp connectors · Universal input · Overload protection by switching off, auto recovery · Protected against short circuit, overload, overvoltage, overheating · Built-in PFC circuit · Low idle power · Internal auxiliary voltage 12 V/0.5A · LED display for the switching on

Delivery time: 3-4 days

MEAN WELL PLN-30-24 LED driver, LED transformer Constant voltage, Constant current 30 W 0 - 1.25 A 16.8 - 24 V DC PFC circuit

(3)

Output / power
built-in PFC circuit
dimmable

Delivery time: 3-4 days

MEAN WELL SCWN06C-05 DC/DC converter (module) 1 A 6 W No. of outputs: 1 x Content 1 pc(s)

Rectangular black electronics module, labelled 'Mean Well SCWN05A-05'. Pins on the underside. CE and TÜV markings.

In the DIP 24/DIL 24-housing · For direct PCB mounting · 2:1 input voltage range · No minimum load required · Input/output insulation 3000 V DC · Protection: short circuit (continuously), overload and input voltage · Efficiency up to 87% · According to EN 55032 Class A transmitted without additional components

Currently not available

Mean Well SP-200-13,5 AC/DC PSU module (+ enclosure) 14.9 A 201 W 13.5 V DC

Mean Well SP-200-13,5 AC/DC PSU module (+ enclosure) 14.9 A 201 W 13.5 V DC

Output voltage (max.) 13.5 V DC
Max. output current 14.9 A

Currently not available
