Cable meter 226020 Softing LAN Expert LE80 Networks

  • item model number: Q79533
A portable network diagnostic device displaying various test options on the screen, including 'Analyse Network' and 'Cable Test'.

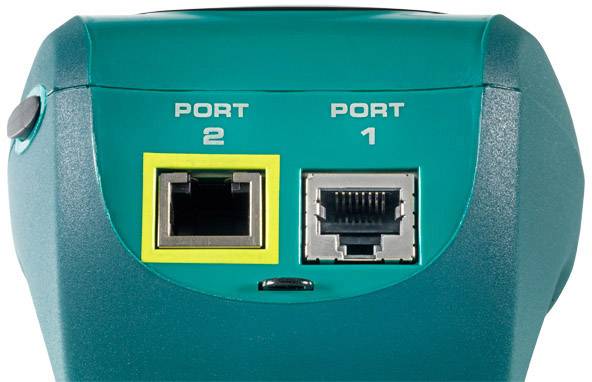

Two Ethernet ports on a network device, labelled as 'Port 1' and 'Port 2', in a green housing.
Currently not available
There is already a notification for this product.
Cable meter 226020 Softing LAN Expert LE80 Networks
Currently not available
There is already a notification for this product.

Product description

Overview

Detection of network devices as switch/router and end-user
Packet Capture and recording for analysis with WireShark (10,000 packages)
Protocol analysis with graphical display of statistics and experts including IPv4/IPv6 support
Traffic Generator and stress test in accordance with RFC2544
VoIP analysis of operating data and the VoIP quality

Description

LanExpert includes packet capture and recording, protocol analysis with statistics and experts including IPv4/IPv6 support, traffic generator, cable test including PoE, ping, trace route and hub activation. The device is easy to operate via a color touch screen and combines complete test and analysis functions in a portable, robust device. Evaluation and report generation can be easily performed on the PC using WireShark or Cace Pilot SW (optional).

Characteristics

Inline Network Analysis Tool
Network Assessment according to RFC2544
PoE-detection
Flow rate measurement
Packet Filtering
Network mapping
VoIP-detection and logging
Length measurement (TDR)
IPv6 support
Connections (Test): RJ45

Delivery content

  • 1 GB USB stick (with English manual, firmware, PC control software, WireShark) - Charger - Terminator (male/female) - Cable - Storage bag.

Keywords

04016138658590, Softing, 226020, LAN Expert LE80, Lan Expert

A portable network diagnostic device displaying various test options on the screen, including 'Analyse Network' and 'Cable Test'.
Two Ethernet ports on a network device, labelled as 'Port 1' and 'Port 2', in a green housing.

Product specifications
