Cosinus R1-1000 Decade box Resistance 1 %

  • item model number: Q79260

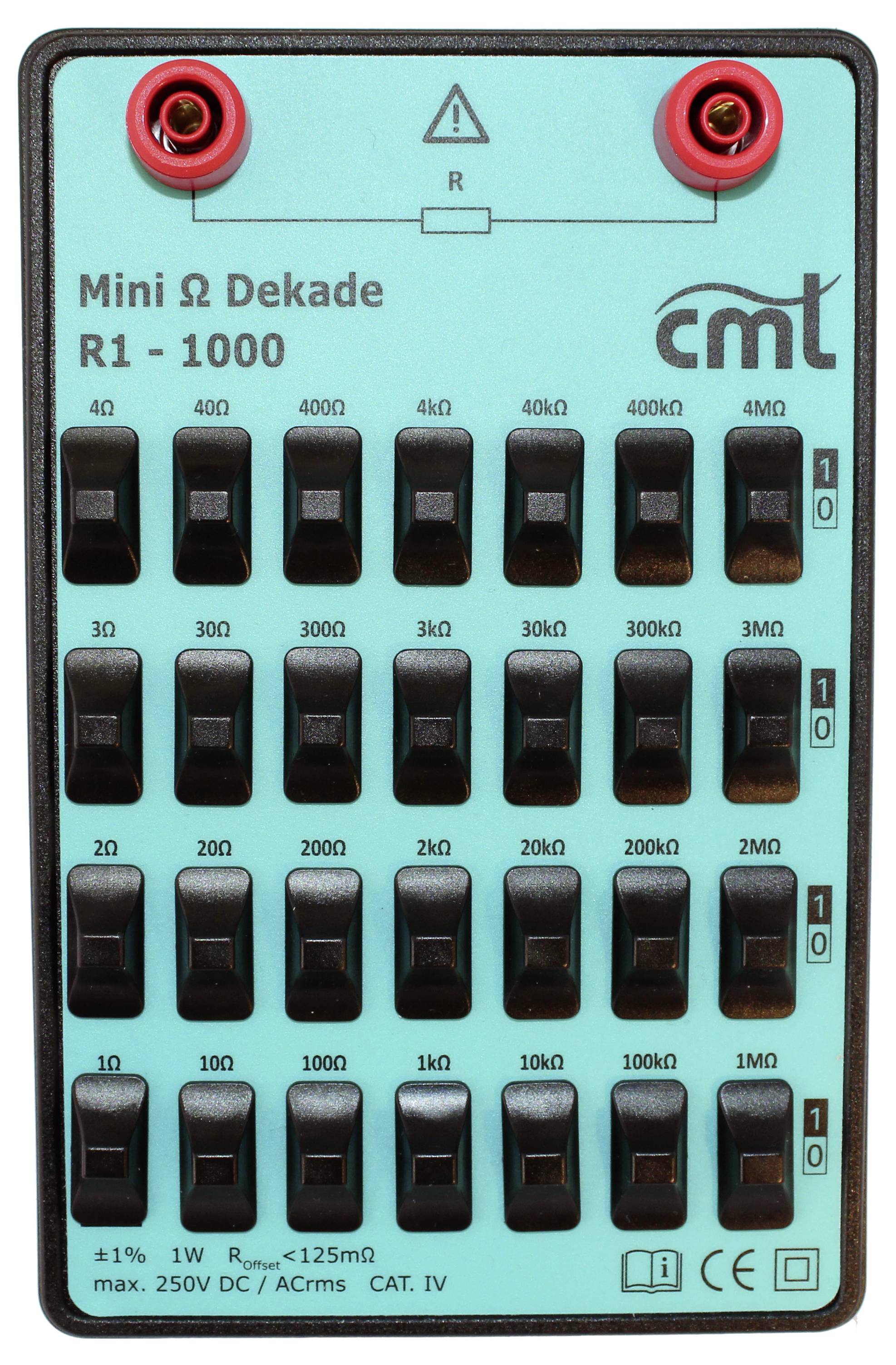

Cosinus R1-1000 Decade box Resistance 1 %
Cosinus R1-1000 Decade box Resistance 1 %
315,00 €
VAT included
Free shipping
Environmental tax included 0,07 €
Delivery time: 2-3 days
in stock
30 days free return shipment
Cosinus R1-1000 Decade box Resistance 1 %
315,00 €
VAT included
Free shipping
Environmental tax included 0,07 €
One article is not enough for you and you want to save money?
from 3 piece: 311,85 € 1,0% savings
from 5 piece: 308,70 € 2,0% savings
from 10 piece: 305,55 € 3,0% savings

Product description

Overview

Range 1 Ω - 11.11111 MΩ
Load 1 W
Max. 250 V (AC/DC)

Description

The R1 - 1000 has 28 1 W resistors connected in series, which can be activated individually with sliding switches. The stepping of the resistance values in 1 - 2 -3 - 4 levels allows for a gapless adjustment of the resistance value in 7 decades (1 Ω to 11,11111 MΩ). The adjustment of, e.g, 156 kΩ is done by selecting the following switches: 100 k, 40 kΩ + 10 k, 4 kΩ + 2 k ohms. The connection is made over 4 mm safety sockets.

Characteristics

Stable housing made of ABS-plastic
Long-lasting resistance slide switch
