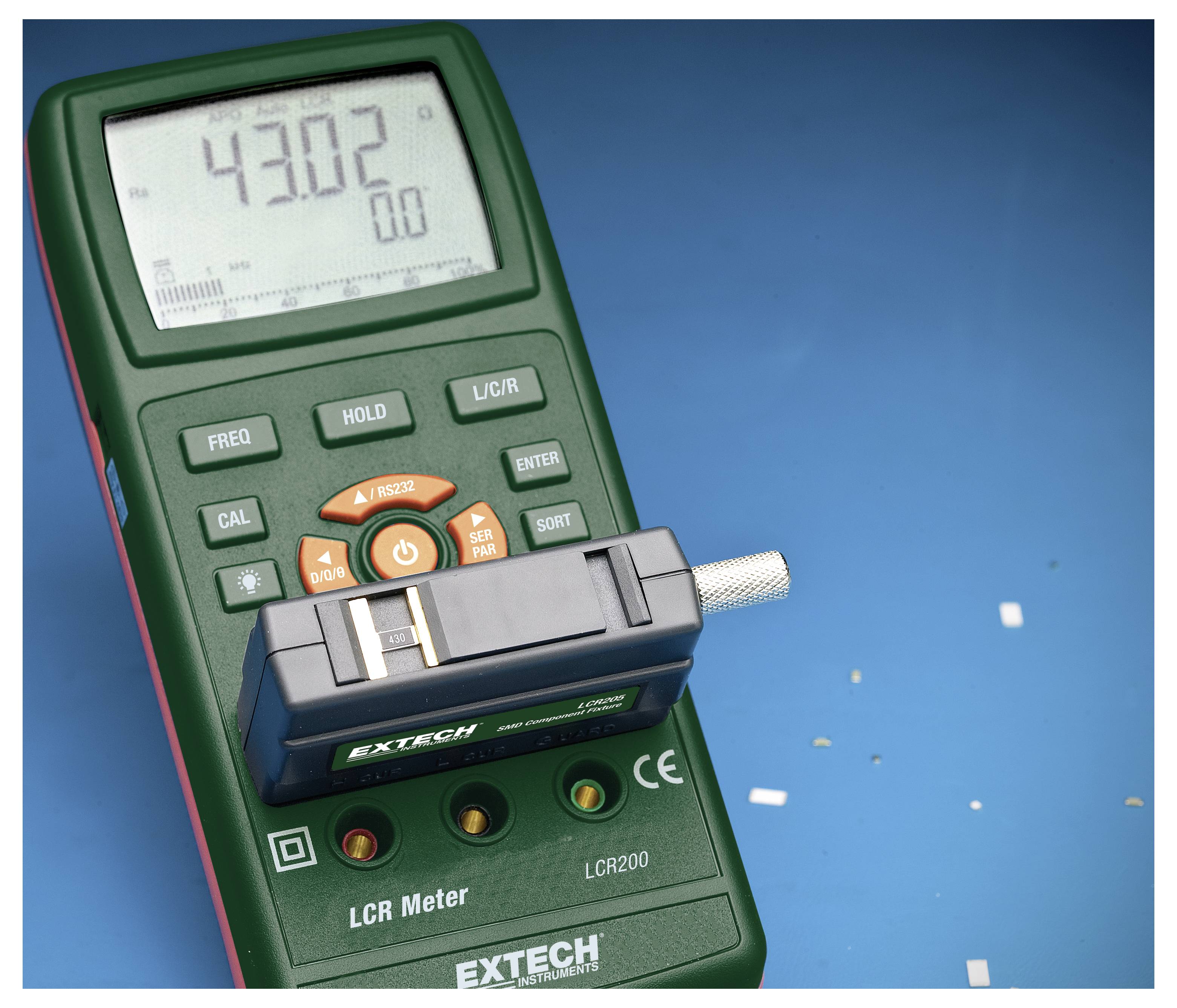

Extech LCR200 RLC circuit Digital CAT I Display (counts): 20000

Overview

Measuring frequency up to 100 kHz
Double display 20000/2000 Counts
Inductances up to 2000 H
Capacities up to 20 mF
Resistors up to 200 MOhm

Description

Robust measuring device with extensive measuring possibilities for inductors, capacitances and resistances.

Characteristics

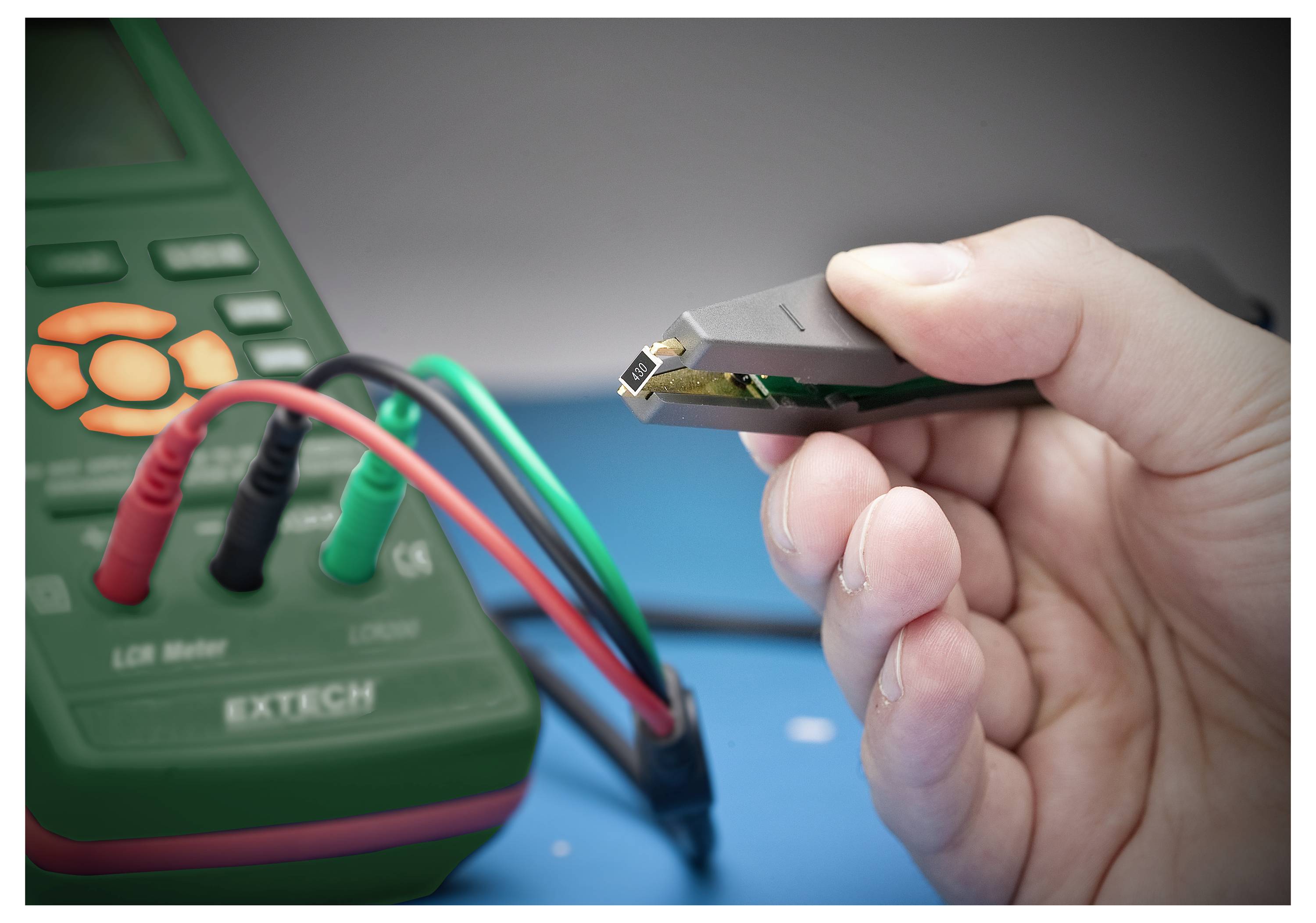

Backlit dual display - Displays primary parameters (L, C or R) and secondary parameters Q (quality), D (power dissipation) or R (resistance), Phase or ESR (equivalent series resistance) - Auto Select measuring function with 1 kHz standard test frequency - Five test frequencies - Setting of Hi/Lo limits using absolute values or percentage thresholds - Relative function - Automatic switch-off with deactivation function - Parallel or equivalent serial circuit - Integrated measuring device or external measuring lines can be used - RS232 interface - Zero adjustment (Open/Short) eliminates unwanted stray impedances from the measurement.

Delivery content

• Test leads - Battery - Operating instructions.
