H-Tronic 1114525 TSM 125 Temperature switch Component 12 V DC -55 - 125 °C

Overview

Switching temperature freely selectable
Powerful and clear
Adjustable for heating or cooling

Description

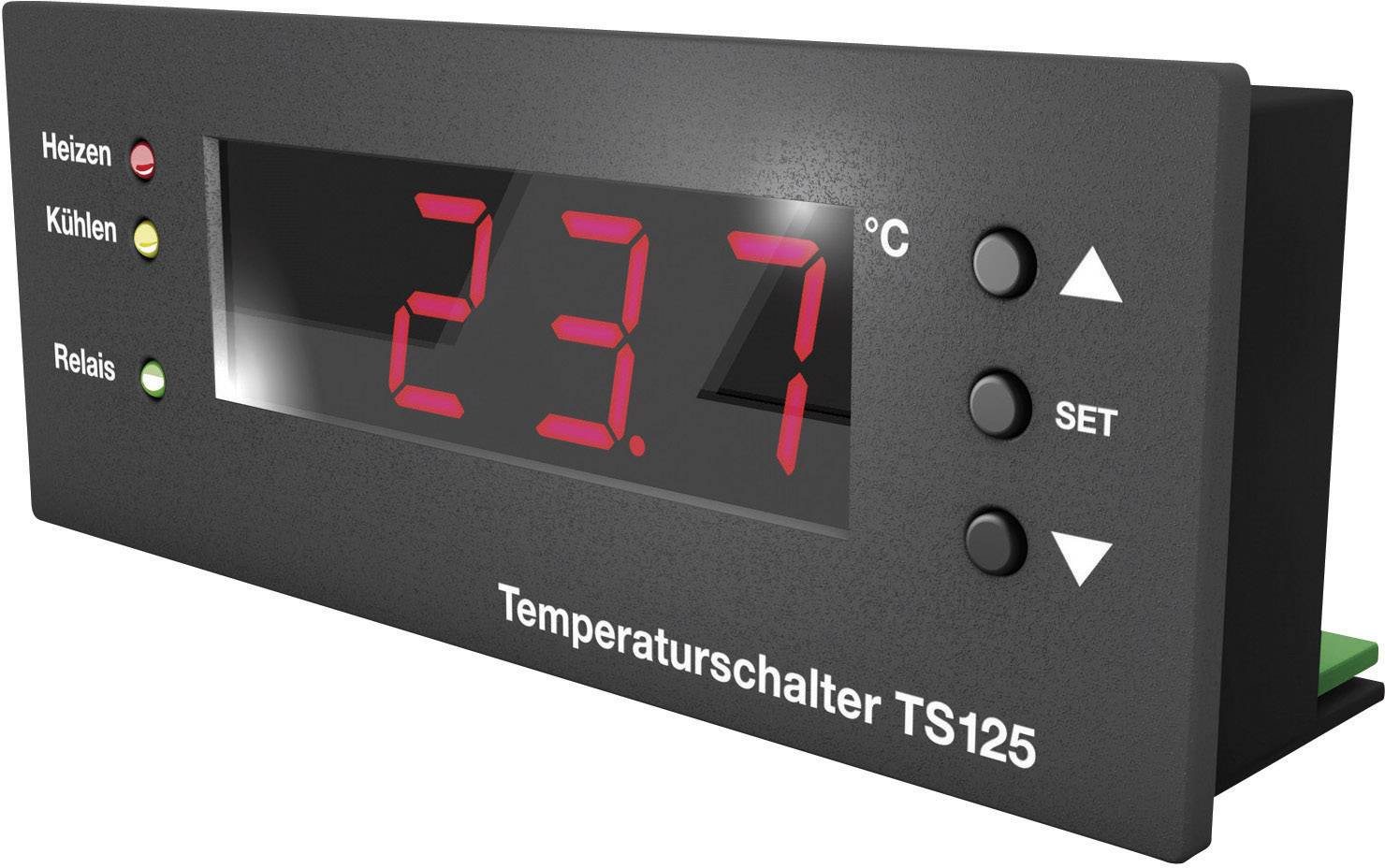

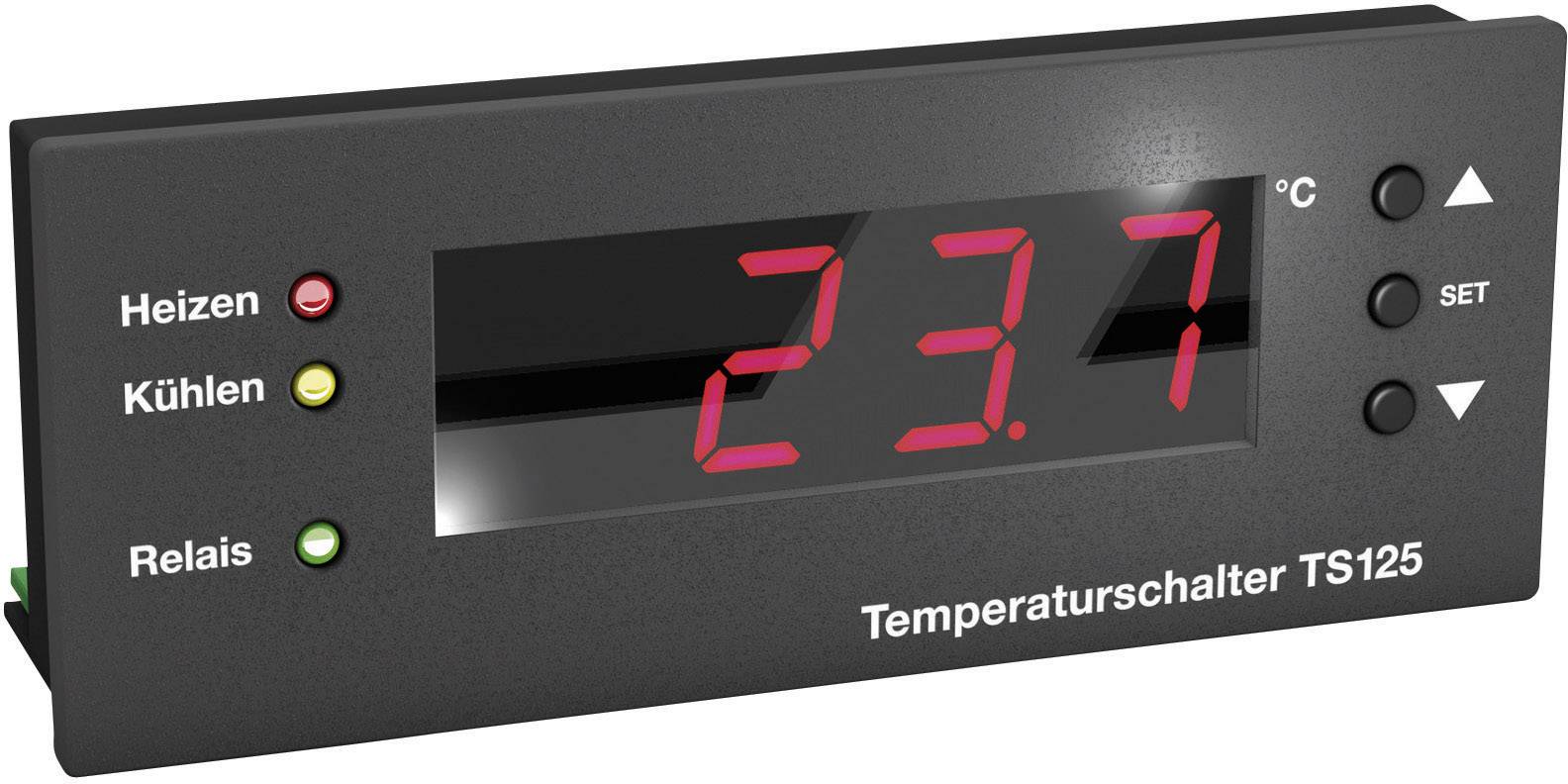

The universal temperature switch (thermometer) is ideal for all applications where temperature control in heating or cooling mode is required. Its external, pluggable temperature sensor measures measuring ranges from -55 to +125 °C. The switching temperature is set in 1°C steps. A 12.7 mm 7-segment display shows the switch-on and switch-off temperature as well as the current temperature. In addition, a red LED signals "heating", a yellow LED "cooling" and another LED lights up when the relay is switched on. The electronic thermostat is not only clear and easy to use, but also safe to use - sensor short-circuits and sensor interruptions are detected immediately. The built-in module can be used independently, but can also be used as a replacement for defective mechanical thermostats or for digital thermometers. The connection cable can optionally be extended up to 50 m.

Characteristics

Switching temperature freely adjustable - Min./Max. display - Remote measurement up to 50 m - Serial interface - Sensor monitoring for short circuit - Sensor monitoring for interruption - Relay switches off in case of sensor error - Operation and monitoring free operation - Adjustable for heating or cooling - LED displays for relays on, sensor error, heating, cooling.

Delivery content

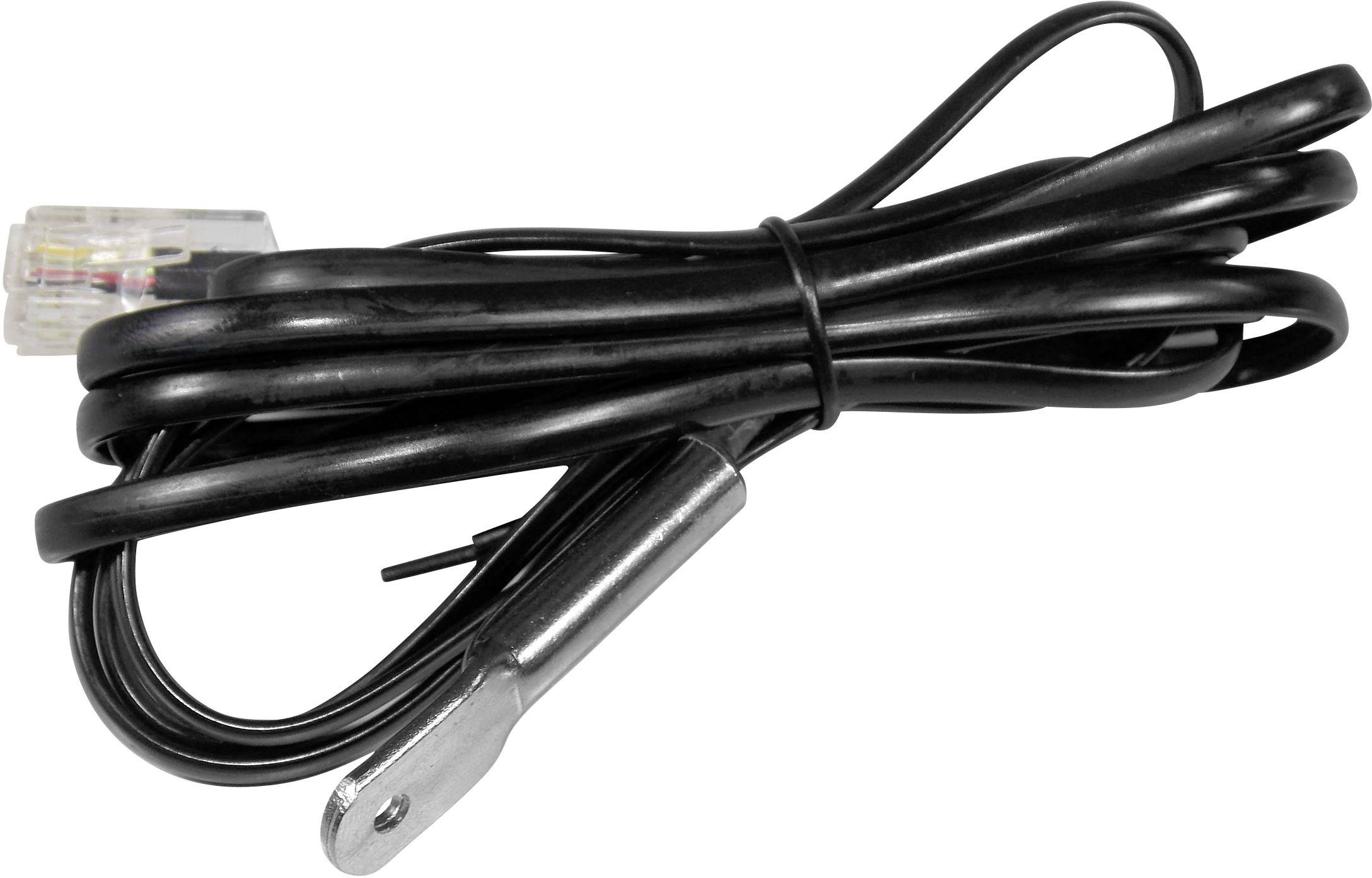

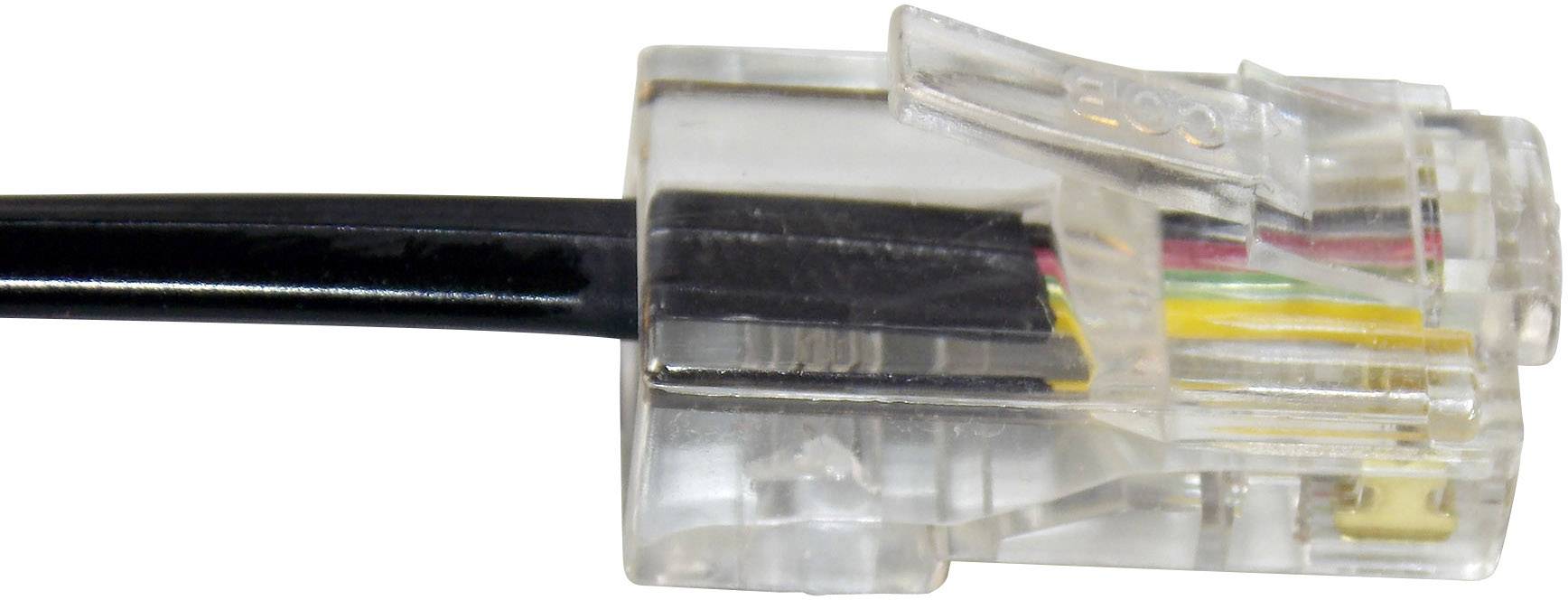

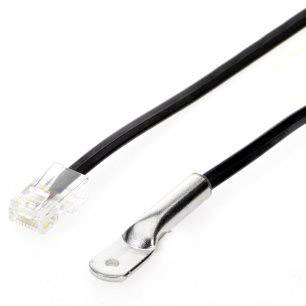

• Temperature switch - Temperature sensor with 2 m pluggable connection cable.
