H-Tronic 4016138197594 Single button point control Assembly kit

  • (8)
  • item model number: Q04300
H-Tronic 4016138197594 Single button point control Assembly kit
Technical drawing of an electrical connector with dimensions in millimetres, front and side view, dimensions highlighted.

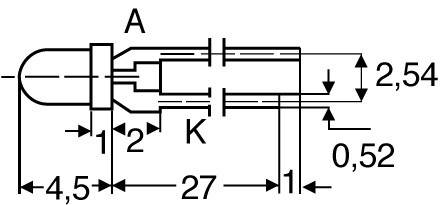

Technical drawing of an electrical connector with dimensional specifications: Length 27 mm, Widths 4.5 mm and 0.52 mm, Spacing 2.54 mm.
H-Tronic 4016138197594 Single button point control Assembly kit
CHF 23.00
VAT included
plus
Delivery time: 6-8 days
in stock
30 days free return shipment
H-Tronic 4016138197594 Single button point control Assembly kit
CHF 23.00
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece: CHF 22.77 1,0% savings
from 5 piece: CHF 22.54 2,0% savings
from 10 piece: CHF 22.08 4,0% savings

Product description

Description

With this controller, you can switch the points and any two coil relay with a single button or a reed switch. Since the switching pulse is limited in duration, magnetic drives can be used with and without end stop. The drives capture a specific basic position with switching on. The display of point adjustments (feedback) is done via LEDs. Two points can be controlled with this module.

Characteristics

Current consumption approx. 6 mA · Switch voltage approximately 12 - 20 V DC · Max. Switching current 3 A · Kit with detailed assembly instructions

Information

Not recommended for Fleischmann N-drive

Keywords

04016138197594, H-Tronic, 4016138197594, 0

H-Tronic 4016138197594 Single button point control Assembly kit
Technical drawing of an electrical connector with dimensions in millimetres, front and side view, dimensions highlighted.
Technical drawing of an electrical connector with dimensional specifications: Length 27 mm, Widths 4.5 mm and 0.52 mm, Spacing 2.54 mm.
