Overview
For 1:1 wired network cable
No more out cracked IT equipment
Plug loosens from certain tensile force of self
Telegärtner RJ45 Networks Adapter [1x RJ45 plug - 1x RJ45 socket] 20.00 cm Blue
71,67 €
VAT included
plus
Delivery time:
2-3 days
available from 24/09/2026
30 days free return shipment
![Telegärtner RJ45 Networks Adapter [1x RJ45 plug - 1x RJ45 socket] 20.00 cm Blue](https://asset.re-in.de/isa/160267/c1/-/en/623384_ZB_00_FB/Telegaertner-RJ45-Networks-Adapter-1x-RJ45-plug-1x-RJ45-socket-20.00-cm-Blue.webp?x=75&y=75&ex=75&ey=75&align=center&format=WEBP&quality=95 "Telegärtner RJ45 Networks Adapter [1x RJ45 plug - 1x RJ45 socket] 20.00 cm Blue")
71,67 €
VAT included
plus
Product description
Description

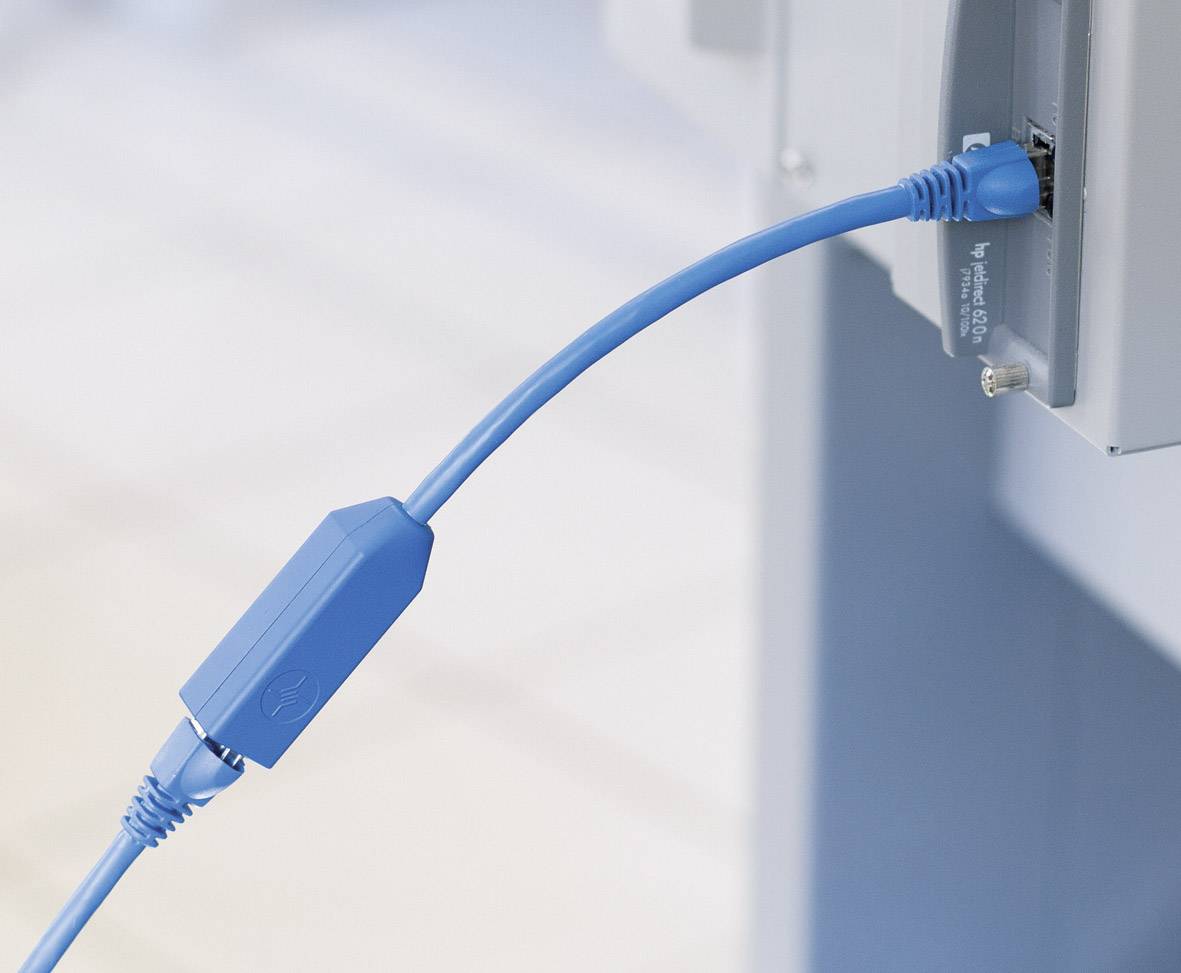

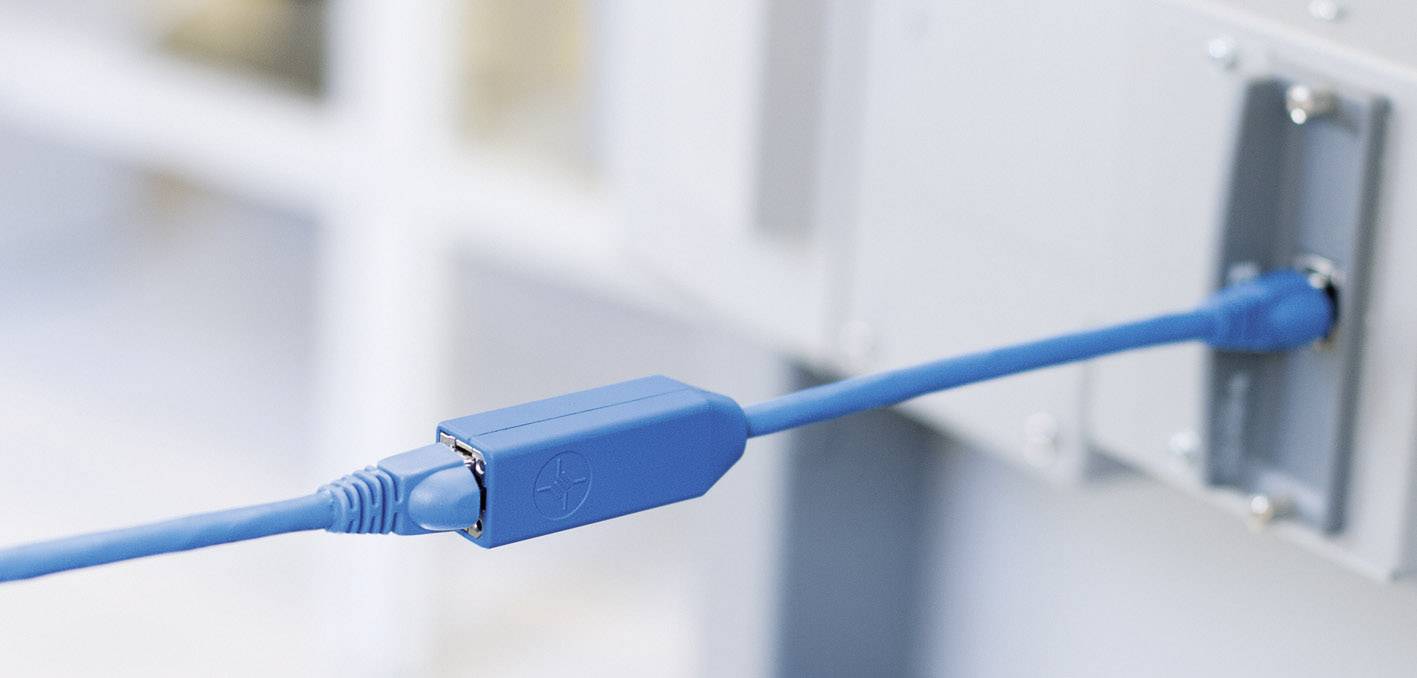

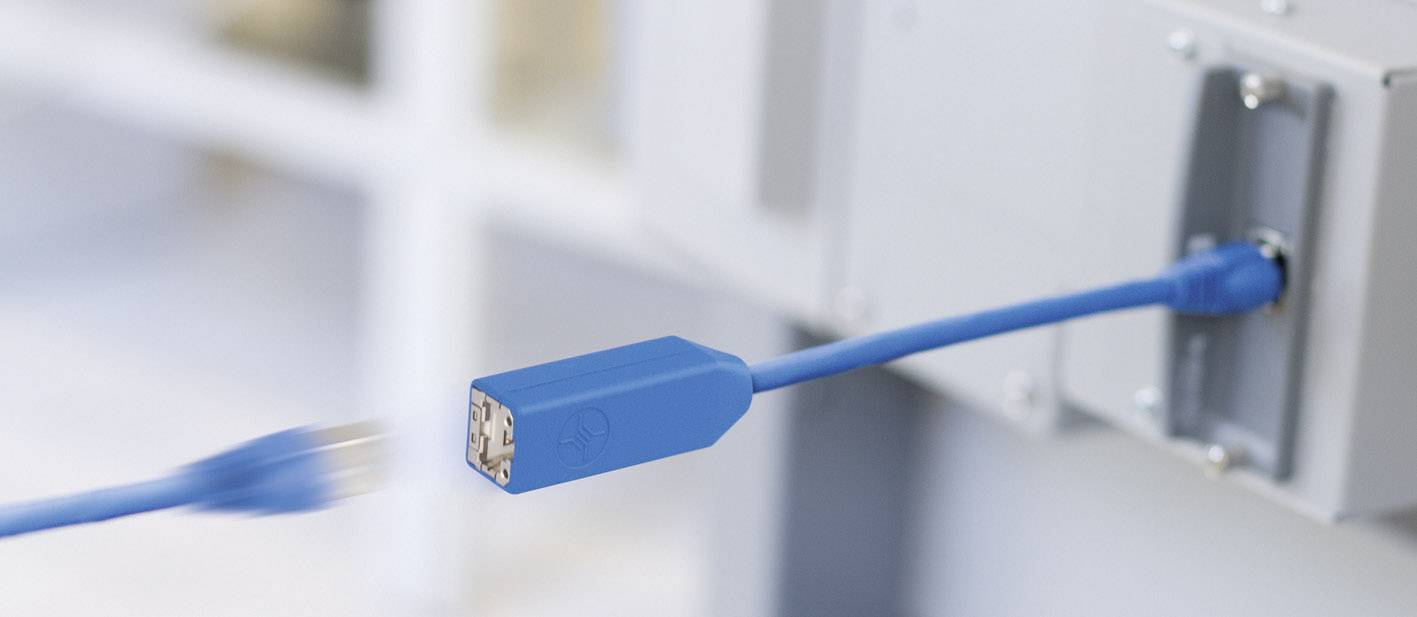

The DDCP-Link offers users and network managers an easy way to protect expensive and mobile IT equipment with LAN connection from damage. If the mobile IT equipment is moved in a larger radius than the connected RJ45 connection cable allows, the DDCP link releases the connection from a certain tensile force and protects the expensive circuit boards of the IT equipment from damage such as torn out contacts or loss of the RJ45 socket for the network connection.
Expensive repairs are thus a thing of the past. Since the tripping force is below the standard specifications for RJ45 plugs and sockets according to IEC 60603-7, it is ensured that the connection between RJ45 connection cable and DDCP-Link is disconnected first. Nevertheless, the DDCP offers sufficient insertion and withdrawal forces to prevent unintentional loosening of the connection with low tensile forces. The DDCP can be easily integrated into existing structures, e.g. by plugging it between the telecommunications connection box, connection cable and in front of the active device.
Characteristics
Life ≥ 750 mating cycles
Diagram 1:1; assignment T568B
Plug with locking lever protection
The external cable diameter: 5.8 mm
Temperature range: -40°C to 70°C
High-power over Ethernet (PoE+) plus according to IEEE 802.3at
Material: ABS housing cover blue
Information
Please check the adapter pin layout. Depending on use, required pin layouts may differ.
