Product description

Overview

Plug and Play installation
Reliable protection against surges of all devices with network connection

Description

Protect your network devices from lightning surges

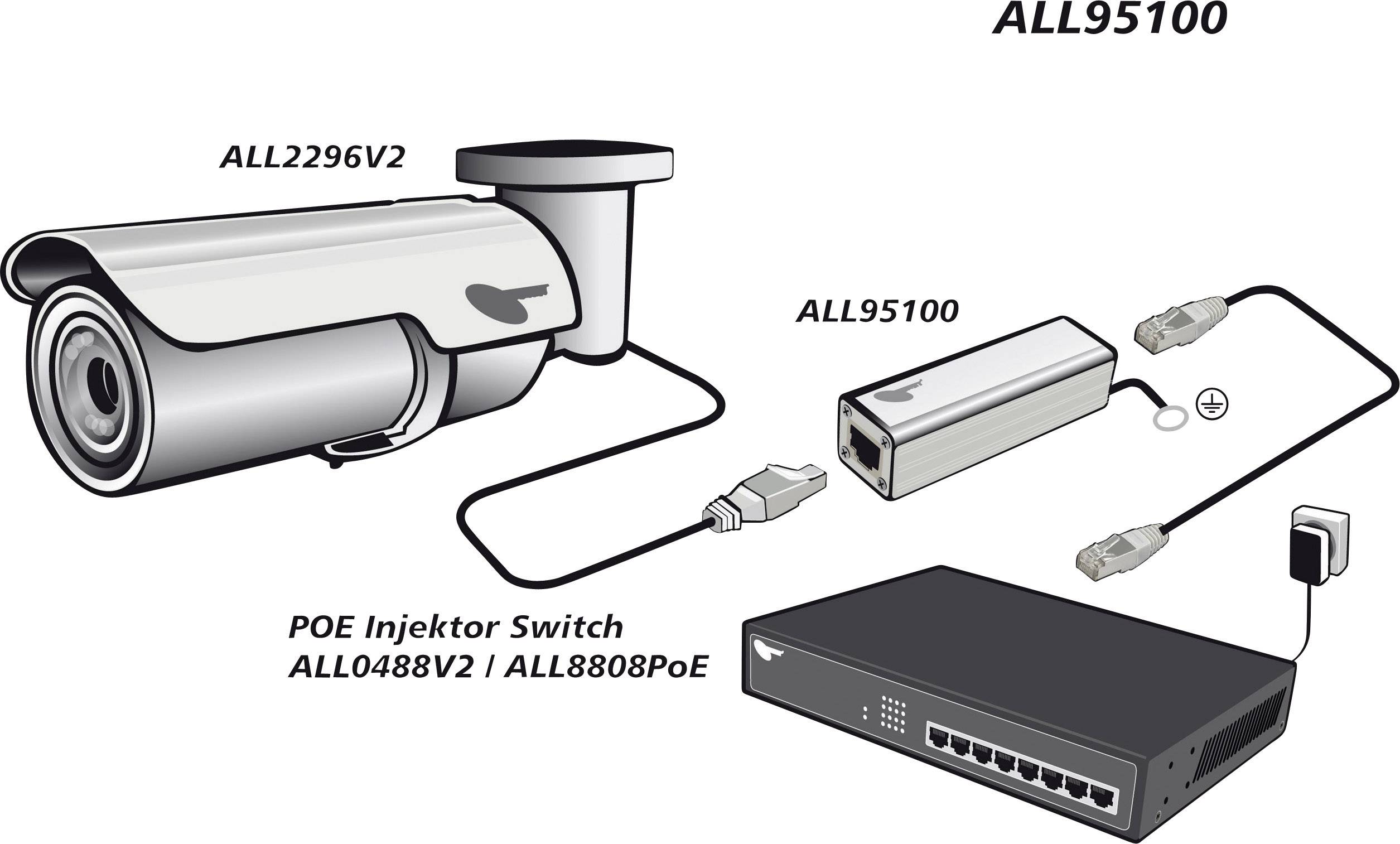

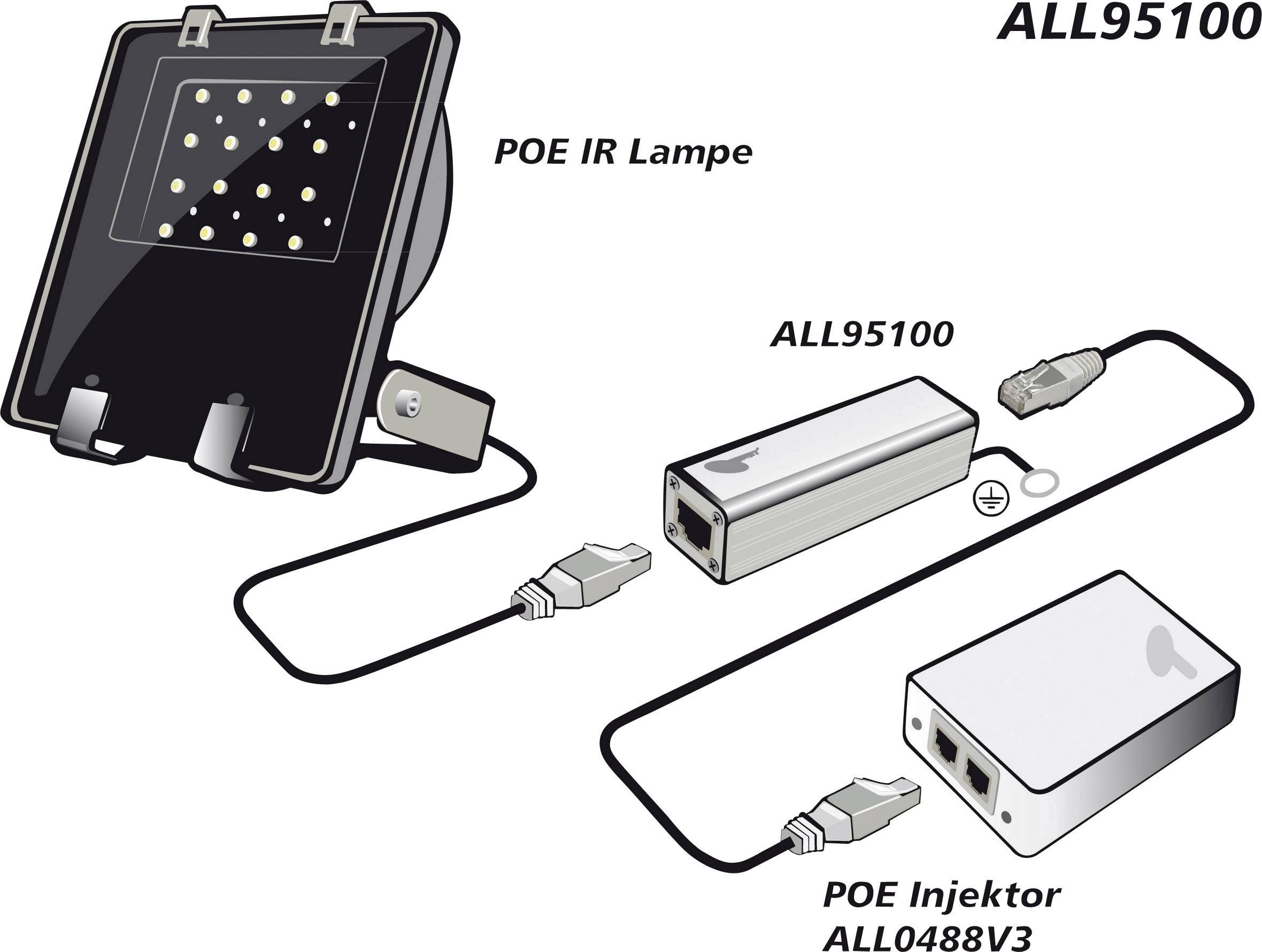

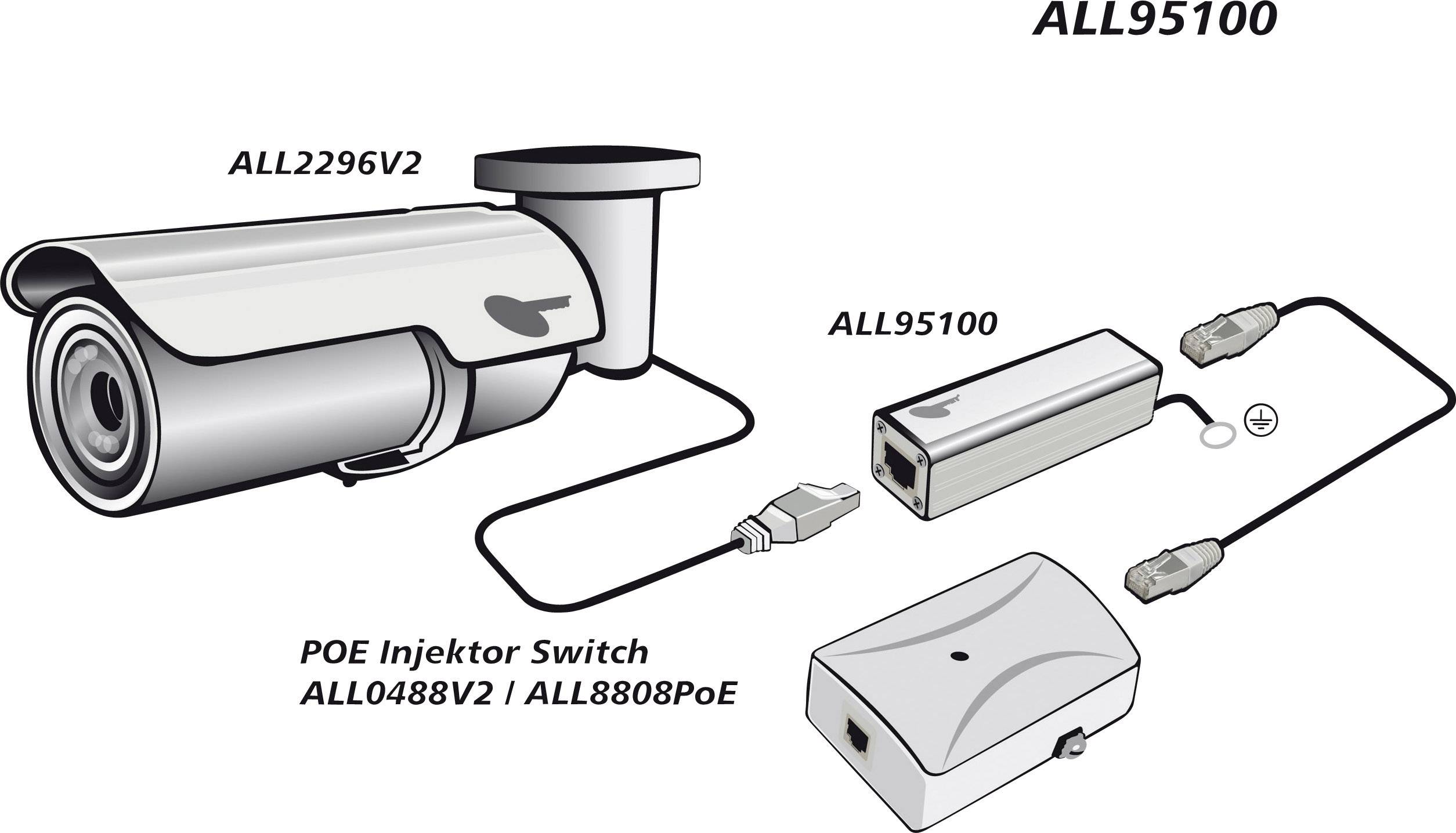

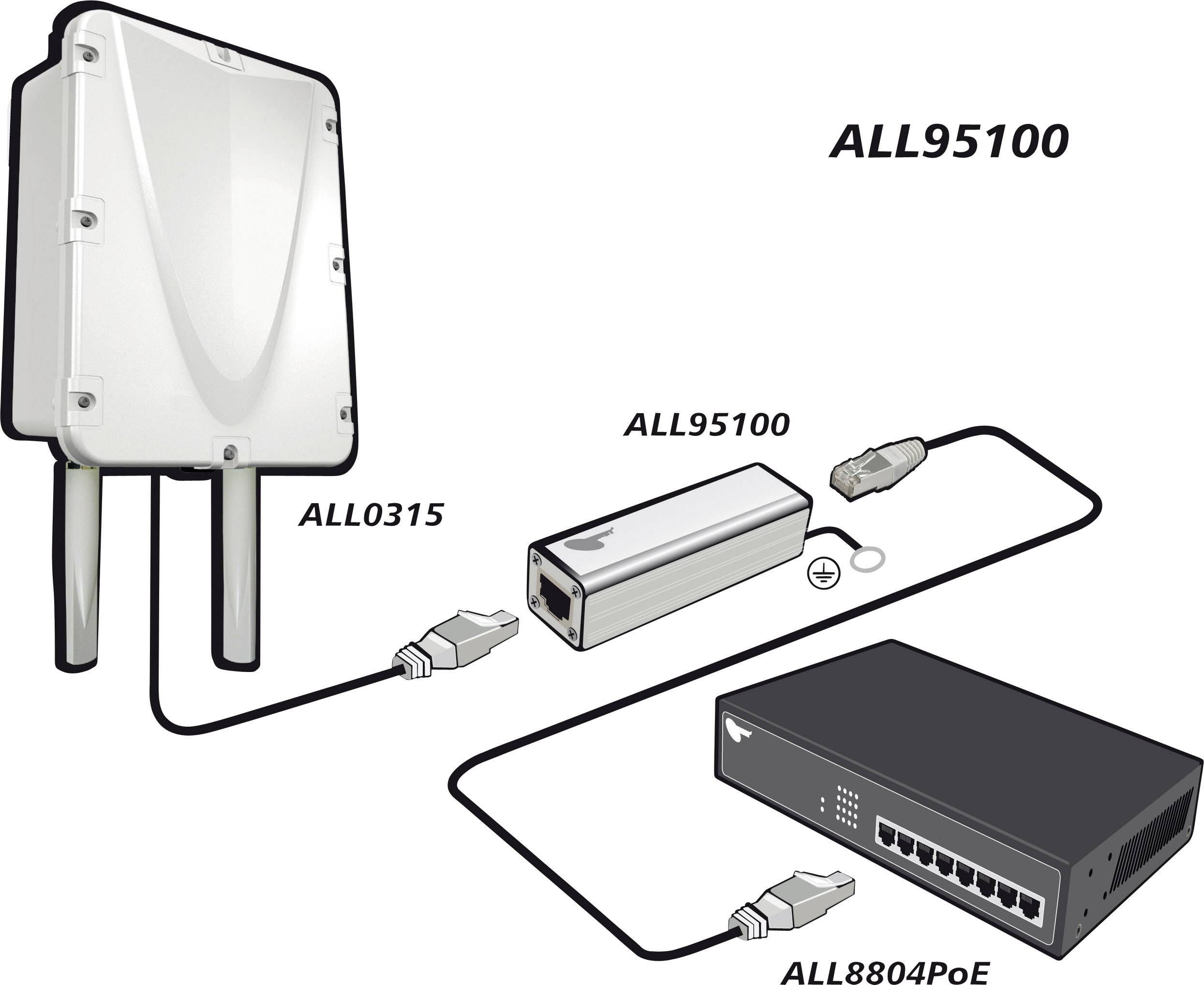

The ALLNET ALL95100 provides cost-effective and reliable protection against damage to sensitive devices. The ALLNET overvoltage protection in a compact housing is simply plugged between the network cable or xDSL /ISDN connection and the device to be protected.

Here the protection of the device against overvoltage takes over immediately and without configuration. Together with regular overvoltage protection and equipotential bonding, the infrastructure in safety-relevant areas, for example, can be permanently protected.

Characteristics

PoE-capability: IEEE 802.3af, at, LTPoE++ up to 90 W
Discharge capacity: 10kA (8/20 μs), 100 A (10/1000 µs)
Ignition voltage 90 VDC ± 20% (pair to earth); 450 V (at 100 V/μs); 600 V (at 1 kV/µs)
Diff. Clamping: 15V, 5ns, 30 apk (pair wire-to-wire)
Diff. Capacity: 4.0pF
Protected Conductor: (pins) 1 - 8 (at 8-pin modular connector)
Test mark: IEEE 802.3, CAT 5, 6
ESD protection: IEC61000-4-2 class 4 (10 kV CD)
Housing: metal housing
