BLOCK VCM 5,0/2/15 PCB mount transformer 1 x 230 V 2 x 15 V AC 5 VA 166 mA

  • item model number: D97025
BLOCK VCM 5,0/2/15 PCB mount transformer 1 x 230 V 2 x 15 V AC 5 VA 166 mA Image is similar
BLOCK VCM 5,0/2/15 PCB mount transformer 1 x 230 V 2 x 15 V AC 5 VA 166 mA
CHF 8.95
VAT included
plus
Delivery time: 4-6 days
while stocks last
30 days free return shipment
BLOCK VCM 5,0/2/15 PCB mount transformer 1 x 230 V 2 x 15 V AC 5 VA 166 mA
CHF 8.95
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece: CHF 8.86 1,0% savings

Product description

Overview

to N/A
Excellent size to power ratio
Vacuum resin moulded (self extinguishing to UL 94 V-0)
Mounting tabs on side of housing

Description

VCM Double voltage

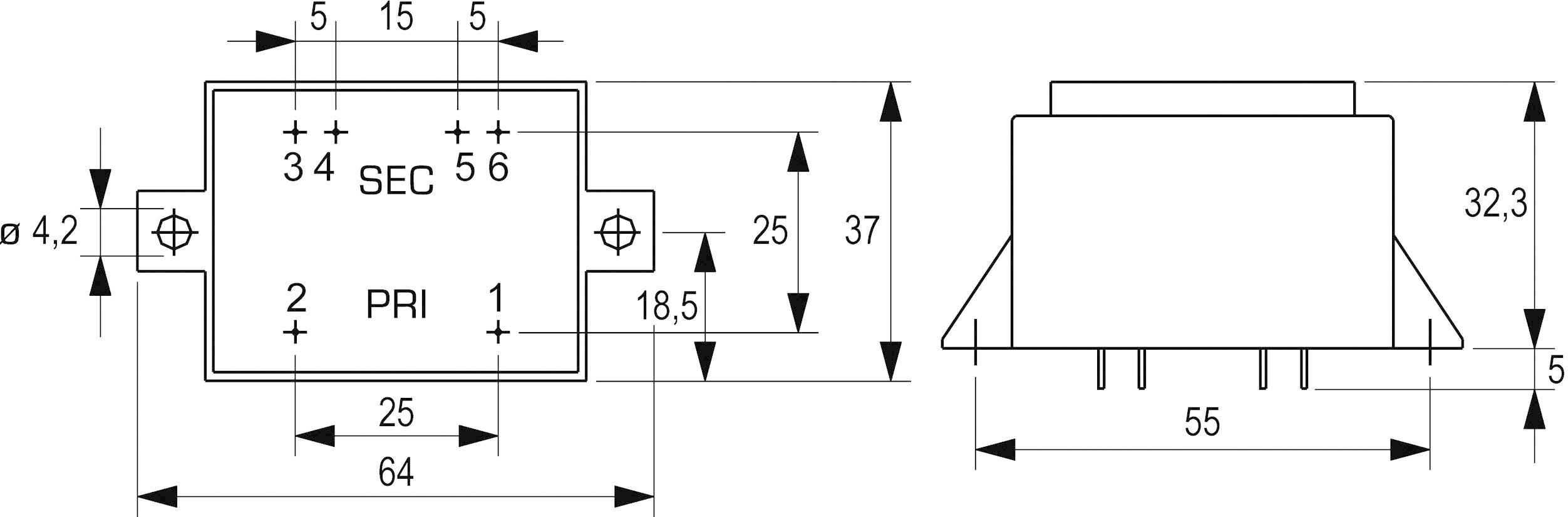

Connection assignment primary: Pin 1 – 2
Connection assignment secondary 1: Pin 4 - 3
Connection assigment secondary 2: Pin 6 - 5

Information

For more technical data on BLOCK's VCM 5,0/2/15 PCB transformer, please see its datasheet under 'downloadable documents'.

Keywords

02050000568121, 04016138538106, BLOCK, VCM 5, 0/2/15

BLOCK VCM 5,0/2/15 PCB mount transformer 1 x 230 V 2 x 15 V AC 5 VA 166 mA Image is similar
BLOCK VCM 5,0/2/15 PCB mount transformer 1 x 230 V 2 x 15 V AC 5 VA 166 mA
