Schabus SHT 5000 Water leak detector mains-powered

Overview

Battery mode when power fails
Potential-free switching relay (changer)

Description

A break in the pipe, a defective sealing or an open cellar window when it rains strongly: Water can do a lot of damage in a short time! But this can be prevented with minimum effort!

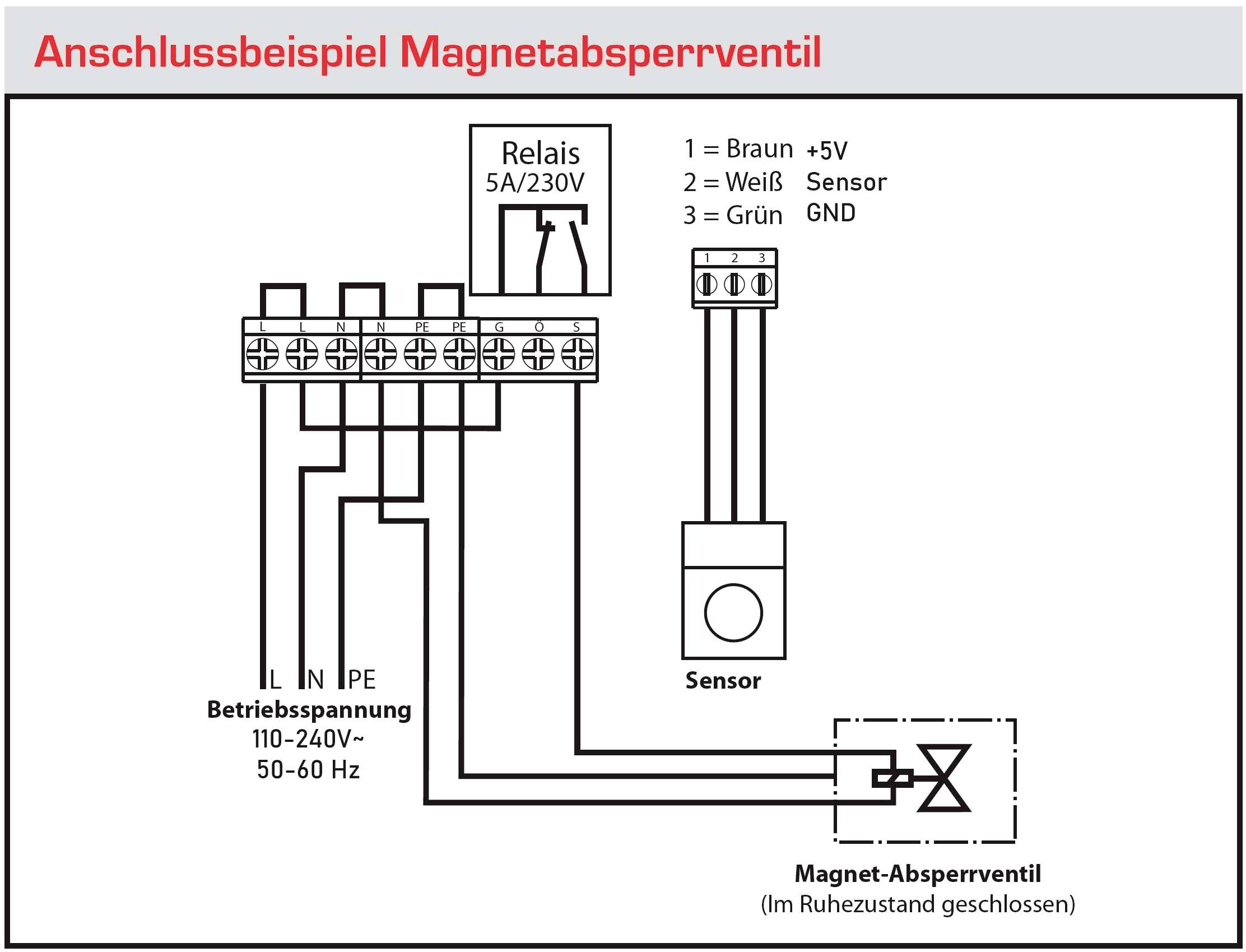

Up to four water sensors or floating switches can be connected to the water alarm SHT 5000. By means of the in-built potential-free relay contact either signal generators, cut-off valves or telephone diallers can be controlled. A signal transmitter is installed for a loud alarm signal. The loop triggered can be defined by 3 LEDs.

Characteristics

Audio and visual warning / display of the individual reporting lines · Up to 4 water sensors can be connected · Connection possibility for: Indicator lamp, cut-off valve, alarm horn, telephone dialler (see Accessories below) · Compatible with BUS systems (EIB)

Delivery content

• Water monitor
• Installation materials
• One sensor
• User manual.
