ABUS TV8469

  • item model number: D35888
Adapter for converting RS485 to RS232 signal, grey housing with green connection terminal, DB9 plug visible below.

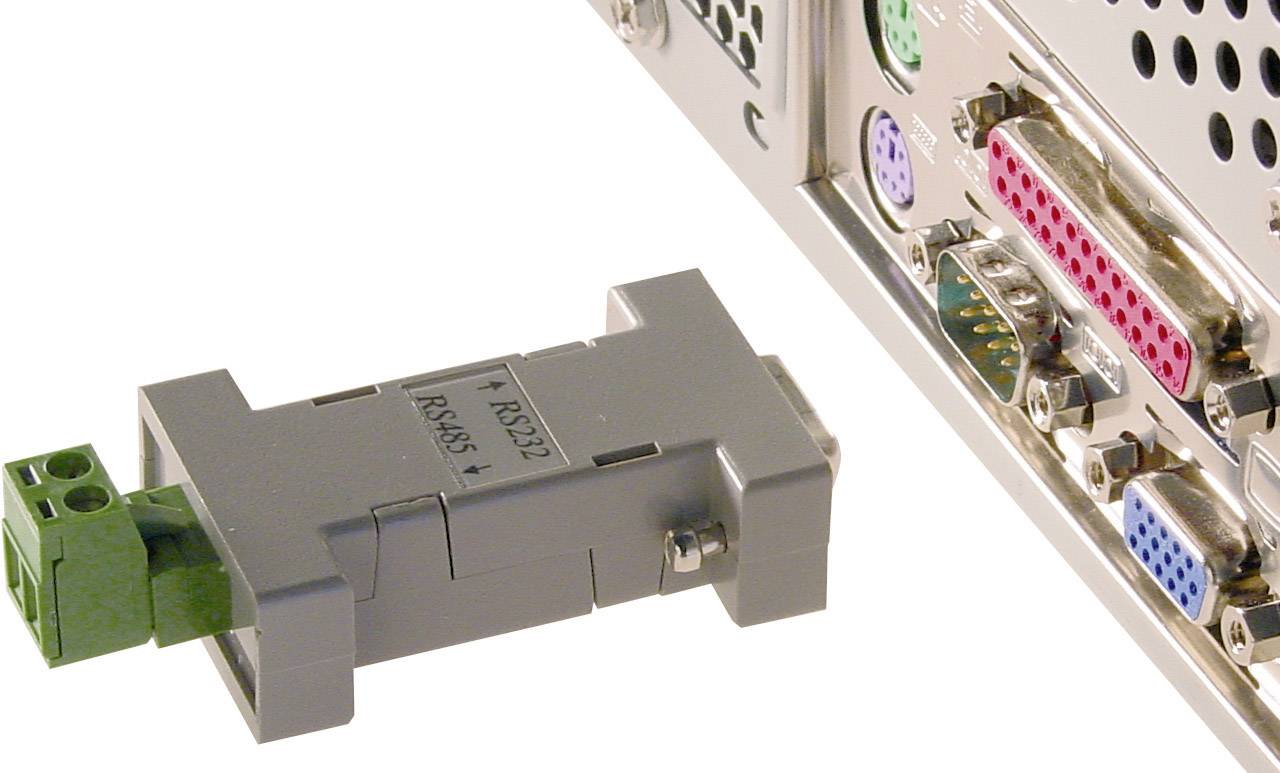

'RS232' Adapter beside the rear computer ports. Adapter connects serial interface with green connector.
42,75 €
VAT included
plus
Environmental tax included 0,02 €
Delivery time: 2-3 days
in stock
30 days free return shipment
ABUS TV8469
42,75 €
VAT included
plus
Environmental tax included 0,02 €
One article is not enough for you and you want to save money?
from 3 piece: 42,32 € 1,0% savings
from 5 piece: 41,89 € 2,0% savings
from 10 piece: 41,46 € 3,0% savings

Product description

Overview

Converts RS-232 to RS-485, semi-duplex

Description

With the help of the interface converter you can control a Speeddome camera (752777, 752790, 752804) via your PC.
The interface converter is connected to the PC via a serial connection (RS232), you connect the Speeddome to the interface converter via a 2-wired RS485 BUS cable. In all, you can use up to 31 Speeddome cameras with your PC. Thereby, one Speeddome camera is connected directly to the converter, the remaining 30 are connected to one another. The maximum transfer range from the interface converter to the last Speeddome is 1200 metres.

Characteristics

Baud rate: Automatic, max. 11,5200 Baud · Communication: semi-duplex · Lockable devices: max. 31 · Transfer distance: max. 1200 metres.

Keywords

02050000902840, 04043158008050, 4043158008050, ABUS, TV8469, 524-4413

Adapter for converting RS485 to RS232 signal, grey housing with green connection terminal, DB9 plug visible below.
'RS232' Adapter beside the rear computer ports. Adapter connects serial interface with green connector.
