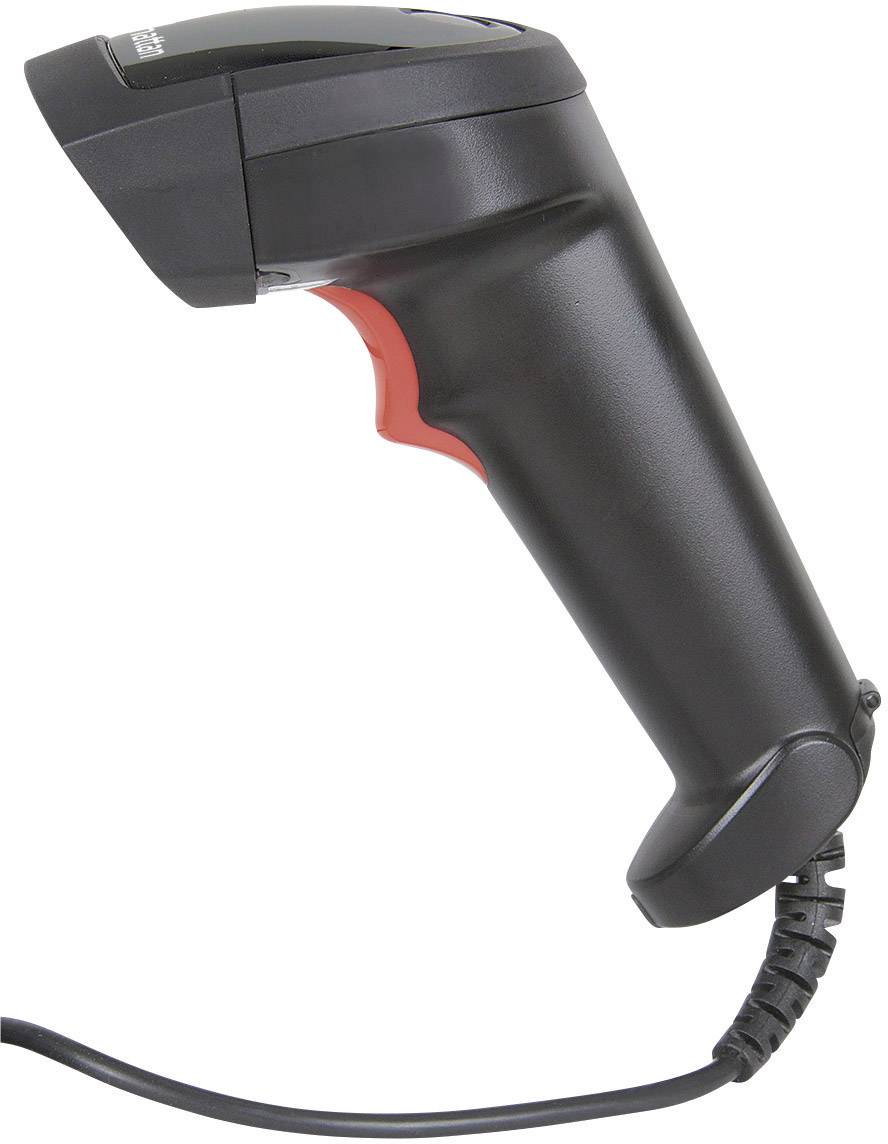

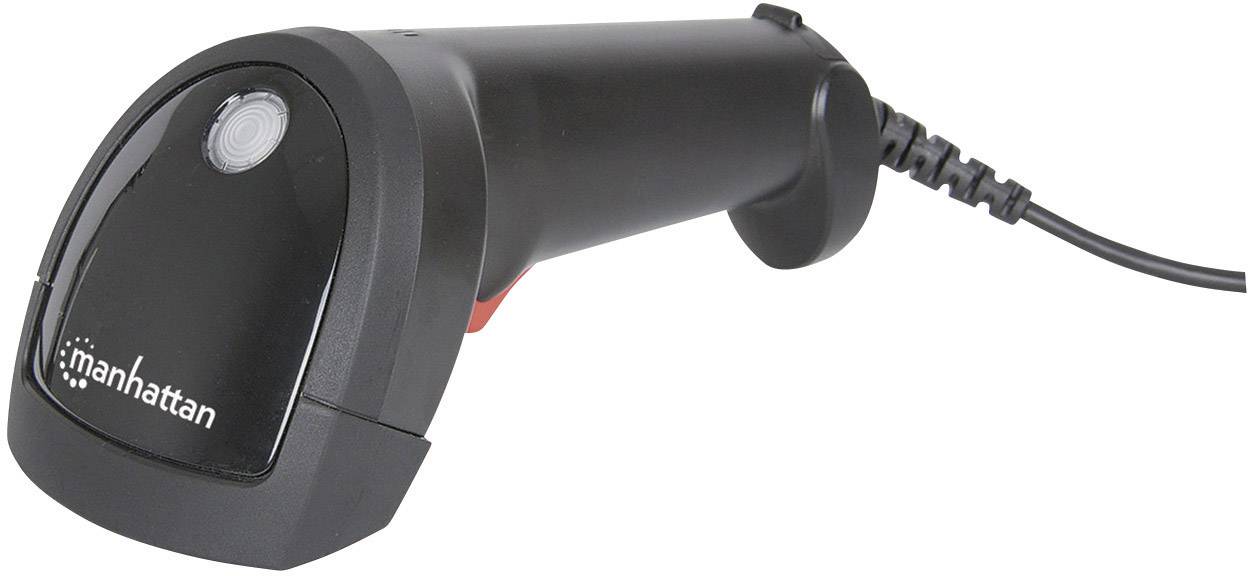

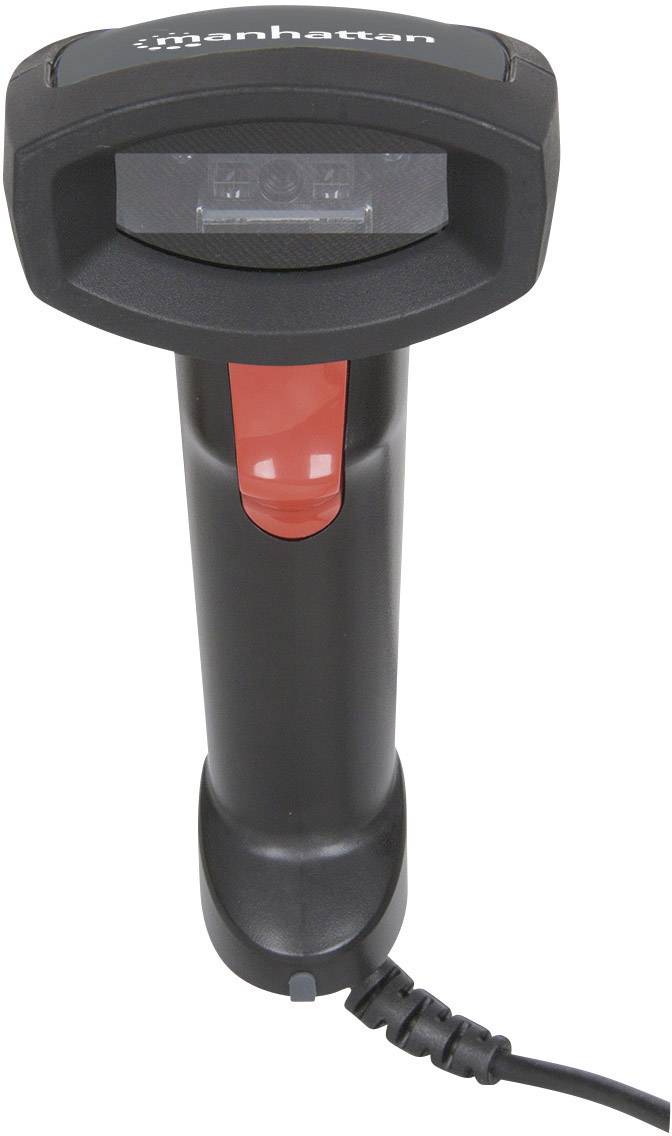

Manhattan 178433 USB-Kit Barcode scanner Corded 1D CCD Black Hand-held USB

Overview

Keyboard Wedge Decoder displays data as if directly entered from keyboard
Detects many popular symbologies including UPC, EAN, 1D barcodes, ASCII, GS1 DataBar Family and more

Description

Improve speed, accuracy and productivity.
Manhattan Linear CCD Barcode Scanners deliver high-quality scanning for a wide range of data collection functions to help improve routine transactions, automate paper-based processes and increase productivity. The CCD (charged-coupled device) scan engine features no moving parts, and has a rugged impact-resistant housing for years of reliable service of reading popular barcodes, including UPC, EAN, ASCII and GS1 DataBar. Easy to implement and simple to use, a built-in keyboard wedge decoder sends scanned data to an active application, where it appears as if it were manually typed or directly keyed into the computer. With a scan rate of 500 scans per second and an accurate read range of up to 500 mm (20 in.), this model offers a high-performance, all-purpose daily scanning solution for point-of-sale, shipping, warehousing, office and industrial applications to minimize manual data entry, speed transactions and reduce errors.

Characteristics

Standards and Certifications · FCC · CE · RoHS · General · Light source: 632nm, visible red LED · Scanner range: 500 mm · Resolution: 0.1 mm (4 mil) @ PCS 0.9 · Reading indicator: tone and LED · Ambient light: 100,000 lux maximum (sunlight) · Scan rate: Smart detection, up to 500 scans/second · Interface: KBW / RS232 / USB (HID or Virtual Comport) · Switch: trigger · Code Support · UPC/EAN/JAN, EAN128 Code, Code 39, Code 39 Full ASCII, Code 32/ Italian Pharmacy, Code 128, Codabar/MW7, Interleave 25, Industrial 25, Matrix25, MSI/PLESSEY, Telepan, Code 93, Code 11, China Postage, Code26, LCD25, GS1 DataBar (RSS code) · Physical · Dimensions, scanner: 18 x 7 x 7 cm (7 x 2.76 x 2.76 in.) · Weight: scanner 0.15 kg (0.33 lbs.) · Operating temperature: 0 – 50°C (32 – 122°F) · Storage temperature: -20 – 60°C (-4 – 158°F) · Relative humidity: 20 – 95% (non-condensing) · Housing: ABS and rubber · Sealing: IP54 · Electrical · Supply voltage: DC +5 V +/- 5% · Current draw: 70 mA

Delivery content

• Long Range Linear CCD Barcode Scanner
• User manual
