special for single-cable systems
UB permeable programmable
SSD 6-xx makes digital single-cable systems according to EN 50494 / JESS absolutely interference- and manipulation-proof
safe and conflict-free installation for apartment and storey-spanning trunk cable
Our intelligent and addressable antenna sockets SSD 6-07/10/14/18dB for digital single cable systems according to EN 50494 / JESS standard are factory blocked with 18 V DC and 22 kHz continuous tone.
User-Band UB 1-16 are enabled at the factory and can be used immediately.

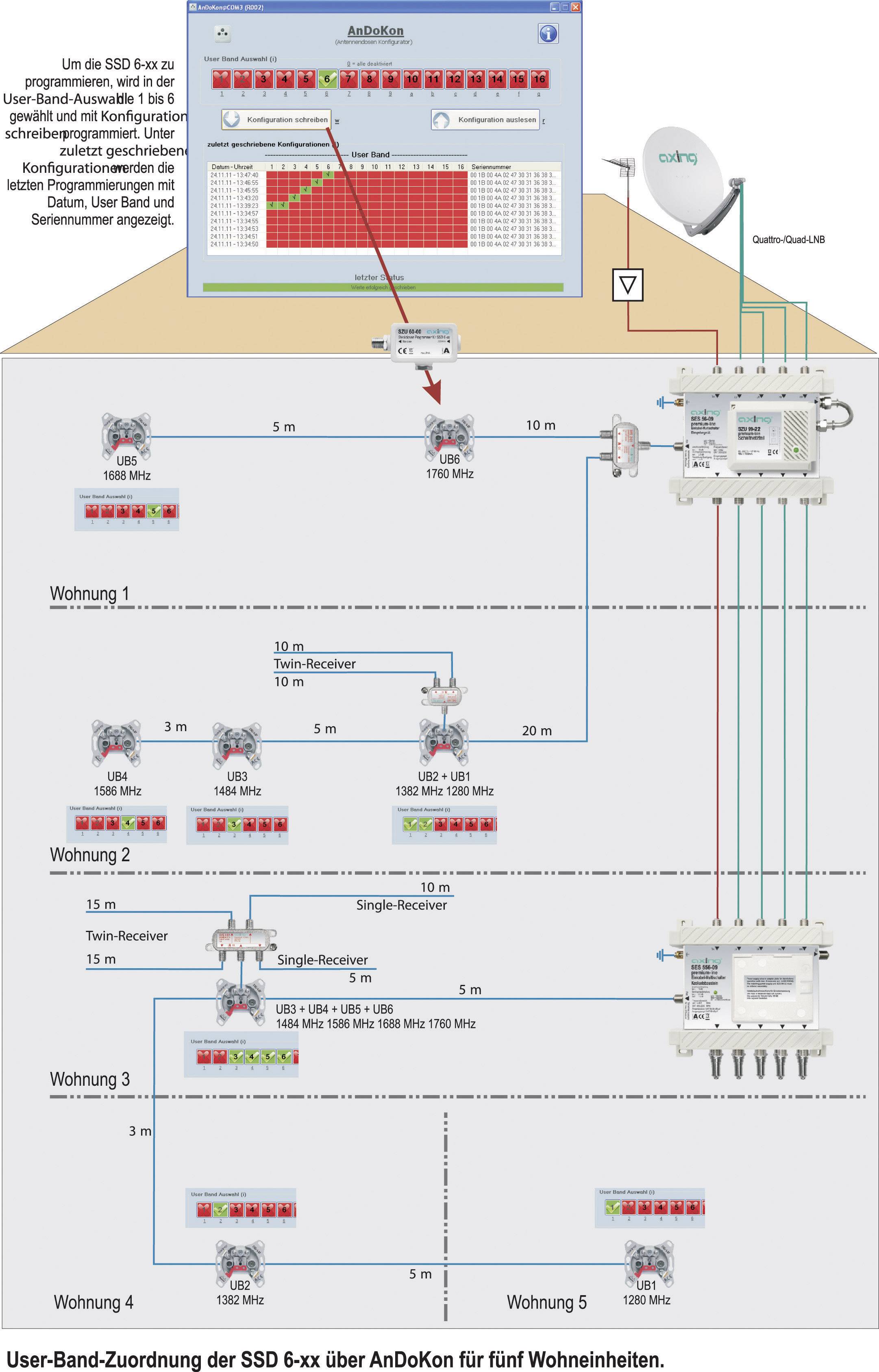

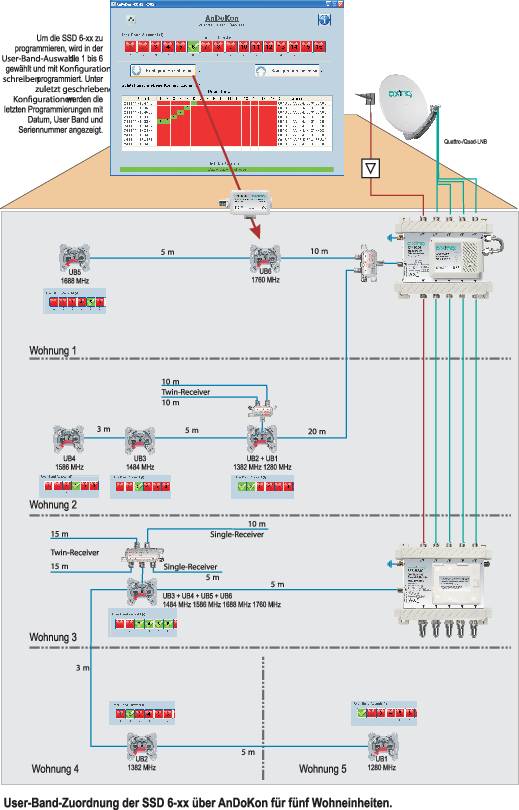

Each can can be assigned one or more user bands (UB) Only receivers that are set to the user band(s) of the can have access to the channels. Receivers with other user-band settings or receivers that are not Unicable-compatible do not receive any programmes and cannot disturb the system.
SSD 6-xx makes digital single-cable systems in accordance with EN 50494 / JESS absolutely interference- and manipulation-proof
safe and conflict-free installation for apartment and storey-spanning trunk lines
07611682002294, 7611682002294, Axing, SSD 6-07
