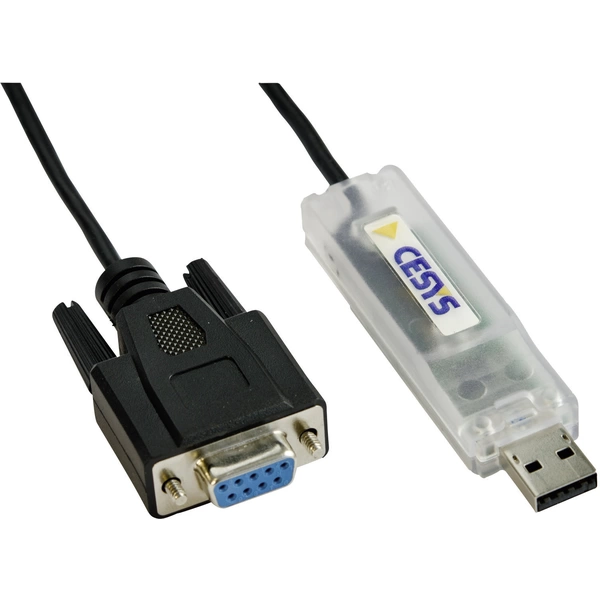

CESYS C028210 USB transducer

Overview

Analog measured values: 4 inputs, 0 to 3.3V, 12-bit, 100ksps; digital signals: 3 I/O signals, counter, trigger

Description

Measure, control and regulate with the CESYS CEBO-stick.
This 4-channel 12-bit A/D measuring stick with USB interface is ideal for mobile use with notebook and everywhere where little space is available. It can be used with Windows, Linux and OS X can be used. Four calibrated analog inputs and 3 digital I/O signals as well as + 5 V and GND are available on the 9-pole SUB-D connector available. The measuring range is 0 to 3.3 volts. The A/D converter working with 12-bit, according to a resolution of approximately 0.8 mV. The analog inputs are by operational amplifier gebuffert and therefore very high resistance. Therefore the extended measuring range may be achieved by simply adding resistors as a voltage divider can be realized.

Characteristics

4 measuring inputs · 3 digital I/O · 5 Volt Output · Driver and extensive software included.

Delivery content

• Software: CEBOLAB
• CEBO-LC data logger
• CEBO-LC milli-voltmeter
• CEBO-LC Penplotter
• Examples and drivers for LabView ®
• Example and driver for profilab Expert
• Driver for Windows XP/Vista/7/8, Linux, OS X
• Libraries (API) for .net, C
• , Java, Python, among other things.

Requirements

Microsoft Windows XP · Mac OS X v10.6 · Linux (PC/Desktop), tested on Ubuntu 12.04 onward LTS · Linux on Raspberry Pi (wheezy)
