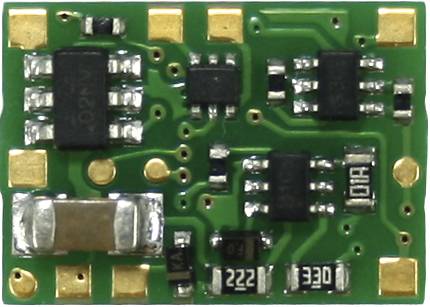

TAMS Elektronik 42-01180-01 Decoder Module, w/o cable, w/o connector

Overview

4 function outputs
Function mapping according to RCN-227
Recommended for all nominal sizes

Description

Small function decoder with 4 outputs, e.g. for switching the direction-dependant lighting and the interior lighting of control wagons.

Effects of the switching outputs:
Direction-dependant switching
Locomotor light
Flashing and alternating flashing, flashing frequency separately adjustable for each output
Inverted switching
Dim
Kicking
Programming for consist operation
Programming for analogue operation

Characteristics

Recommended for all nominal sizes
4 function outputs
Function mapping according to RCN-227
Formats DCC + MM
Programming: DCC: CVS, POM | MM: Register
Address range: DCC: 10,239 | MM: 255
Number of speed settings (DCC): 14, 28 or 128
With RailCom
Automatic analogueue detection
Power supply: 12 – 24 V digital voltage or max. 18 V analogueue DC voltage
Function mapping according to RCN-227
F-KEYS: DCC: F0 - F28 | MM: F0 - F4
Effects of the switching outputs: Invert, flash, dim, kick
Connection of the support capacitor: (100-470 µF, min. 25 V)
Max. Current per output [mA]: AUX1-2: 300, AUX3-4: 100

Delivery content

• FD-R Basic.3
• User manual.
