Overview

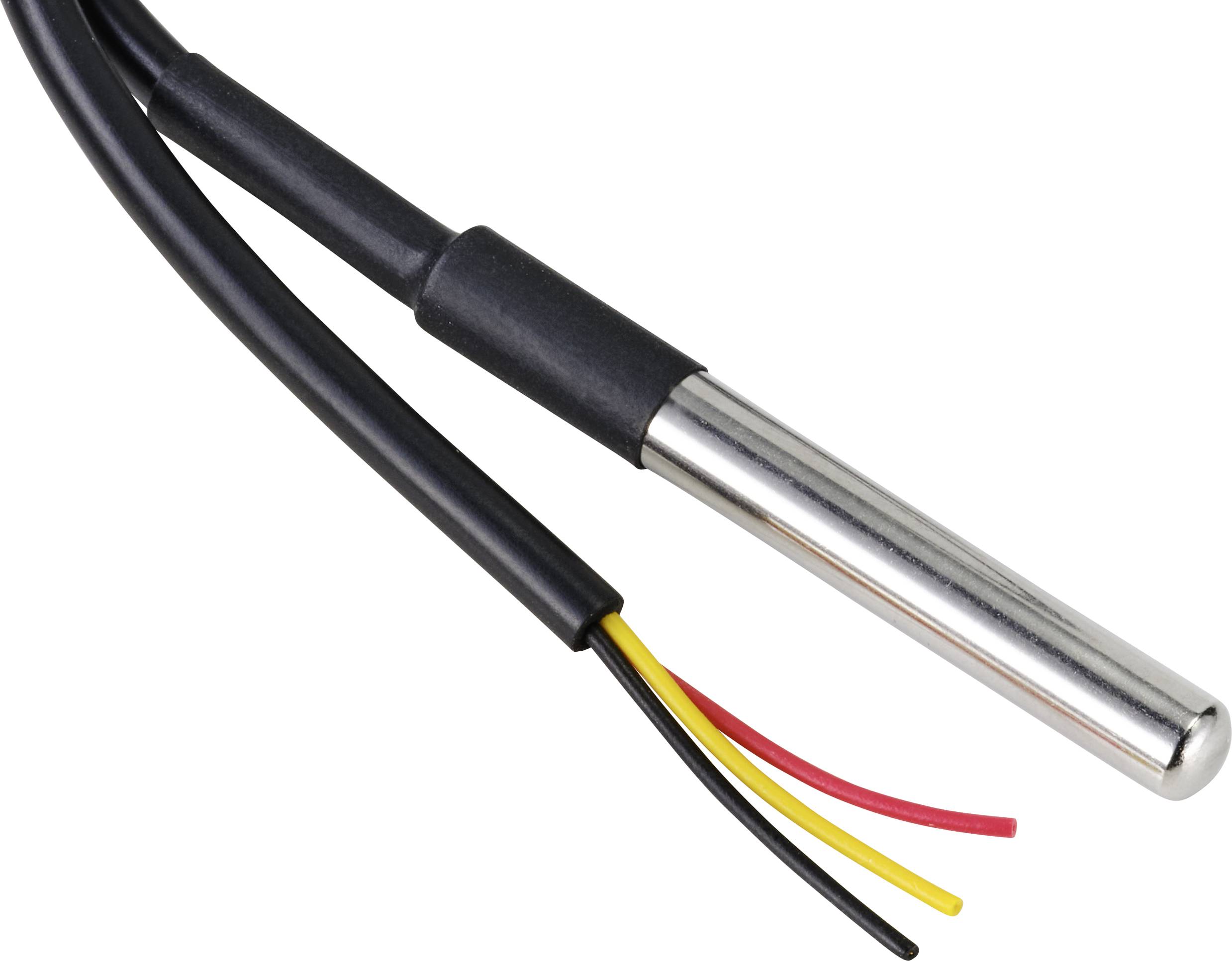

Waterproof DS18B20 temperature sensor
Voltage range for power supply from 3.0 V to 5.5 V - no standby power consumption
Temperature range: -50°C- +125°C.
Size 23 x 20 mm
TRU COMPONENTS TC-9445340 Temperature sensor 1 pc(s) Compatible with (development kits): Arduino
Product description
Description
The DS18B20 waterproof temperature sensor offers a temperature measurement with a (programmable) resolution between 9 and 12 bits.
Characteristics
Specifications for DS18B20: The single-wire interface requires only one connection contact for communication
Multi-point capability simplifies distributed temperature sensing applications
No external components required
Power supply possible via the data line
Programmable between 9 and 12 bits
Conversion of temperature to 12-bit value in max. 750 ms
Non-volatile, user-programmable alarm parameters
Delivery content
- Temperature sensor DS18B20

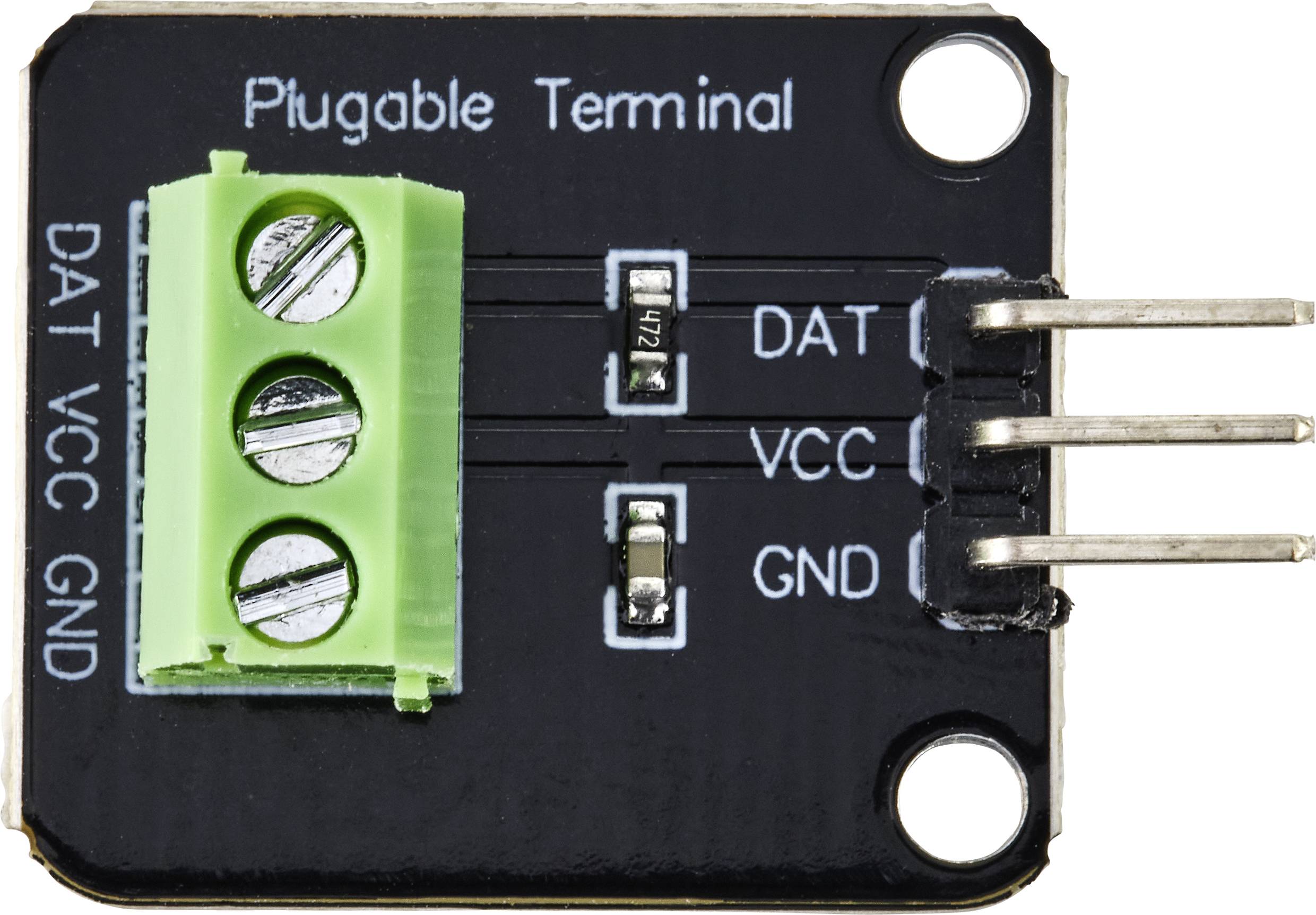

- Arduino compatible adapter
