ProCar power USB C/A double socket Max. load capacity=3.6 A 12 V, 24 V

Overview

Own consumption 1 mA
Overload protection
Over-temperature protection, reverse polarity protection, short-circuit protection, overvoltage protection in case of short voltage peaks

Description

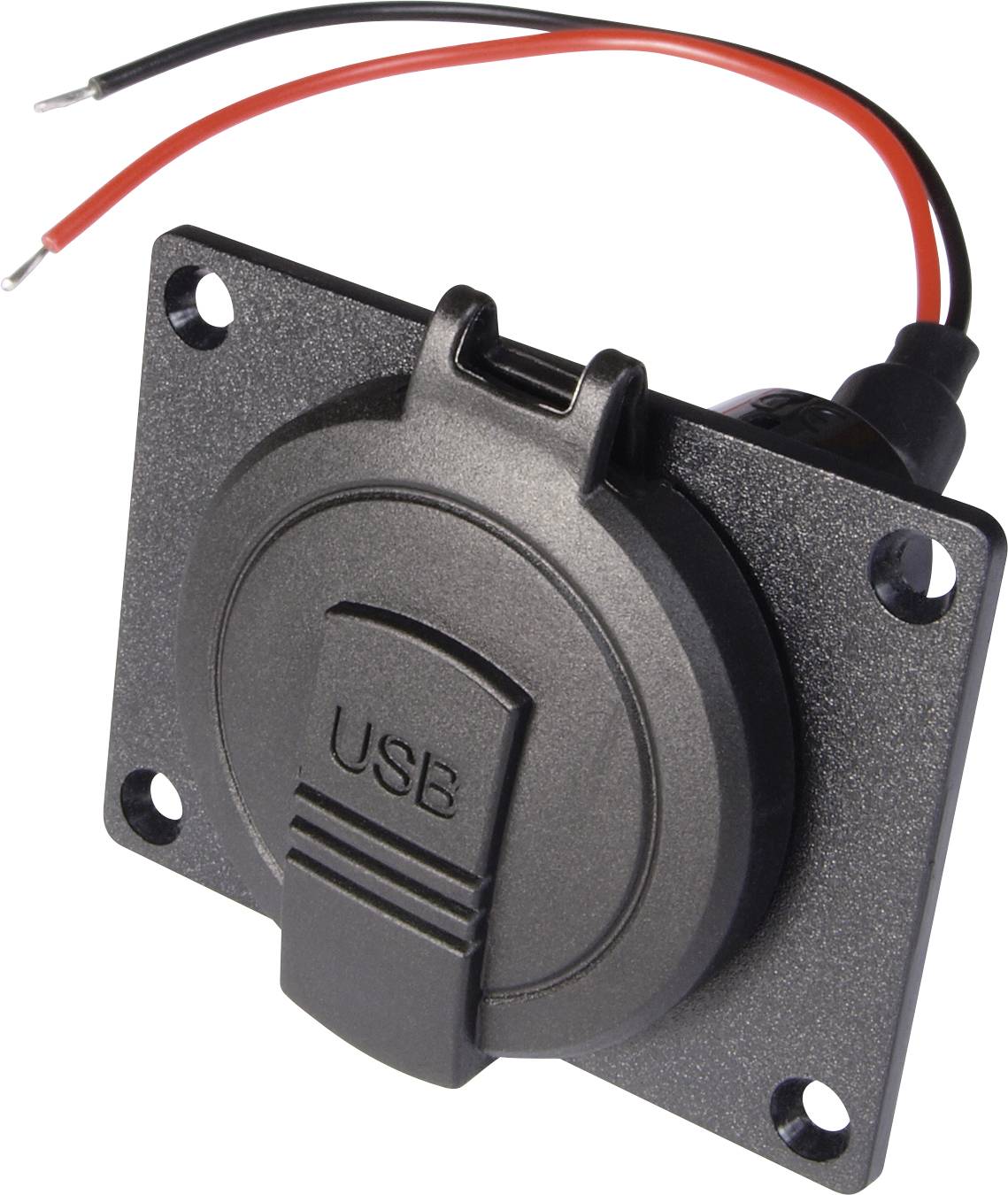

12-24 Volt power USB-C/A double socket with protective cover IP 54 for charging and operating electronic devices, which can be charged via 5 V USB. Cable connection approx. 150 mm, 2 x 0.5 mm², installation dimension Ø 36 mm, attachment by means of the enclosed screws. Output 5 V, 3.6 A, own consumption below 1 mA.

Delivery content

• Incl. Mounting screws and mounting plate

Keywords

04019524001550, ProCar, 67342651, cigarette lighter, cigarette lighter plug, in-car outlet connector
