Signal Construct SKGD05101 LED indicator light Yellow 7 V DC Tray

  • item model number: W233232
A red circuit breaker with two metal contacts at the bottom, used for electrical protection in circuits.

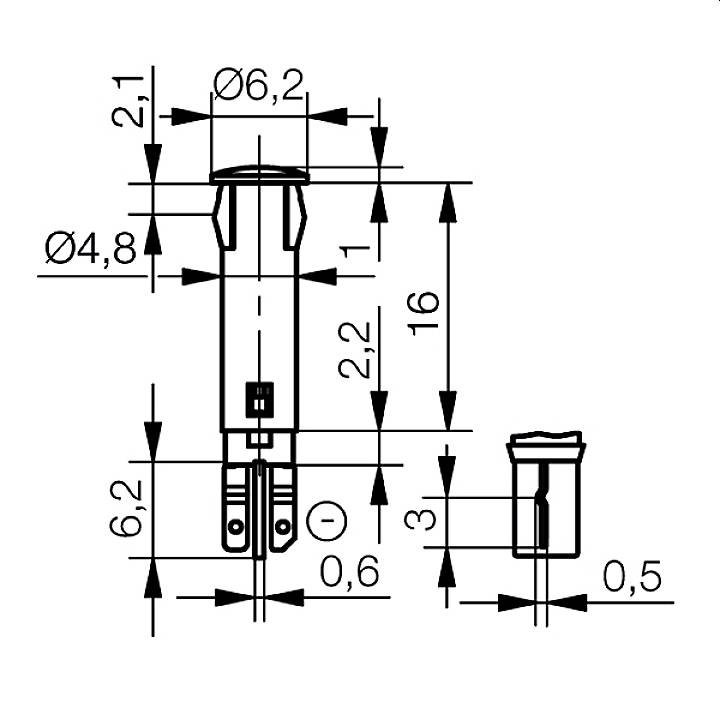

Technical drawing of a connector with multiple dimensions: height, width, and diameter specified in millimetres.
CHF 2.05
VAT included
plus
Delivery time: 3-4 days
in stock
30 days free return shipment
Signal Construct SKGD05101 LED indicator light Yellow 7 V DC Tray
CHF 2.05
VAT included
plus
One article is not enough for you and you want to save money?
from 5 piece : CHF 2.00 2,4 % savings
from 10 piece : CHF 1.96 4,4 % savings
from 50 piece : CHF 1.88 8,3 % savings

Product description

Description

LED symbol lamp for snap-in mounting.
Flat, surface-matt bezel head in
Round shape. Very good on/off contrast. Casing: Transparent in color
Mounting type: Snap-in mounting
Installation opening: Ø5+0.2 mm
Protection class according to DIN EN 60529: IP40
Connection: Soldering lug 1.5 x 0.3 mm
(Solder-free connection cable KDS2 as an accessory
available)
Soldering temperature 260°/5 sec.
Operating voltage:
6/7V, 12/14V, 24/28V DC (red, yellow, green, orange)
6/7V, 12/14V, 24/28V DC(AC) (blue, white)
The current consumption/brightness for AC voltage
Is reduced by approx. 50% compared to DC operation.
