Signal Construct SMCP08221 LED indicator light Green 7 V DC Tray

  • item model number: W233302
Yellow and silver electrical component, likely a push button or switch, with a metallic shiny surface and two terminals.

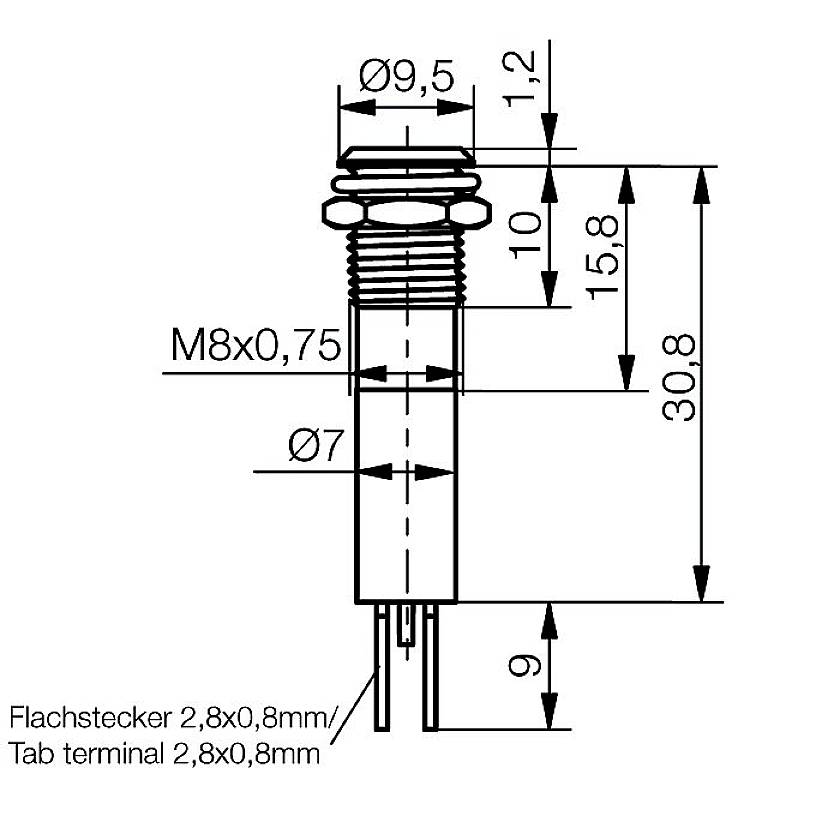

Technical drawing of a connector: M8x0.75 thread, total length 30.8 mm, with flat plug 2.8x0.8 mm.
4,29 €
VAT included
plus
Delivery time: 2-3 days
in stock
30 days free return shipment
Signal Construct SMCP08221 LED indicator light Green 7 V DC Tray
4,29 €
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : 4,24 € 1,2 % savings
from 10 piece : 4,07 € 5,1 % savings
from 50 piece : 3,90 € 9,1 % savings

Product description

Description

LED-signal lamp with inner reflector and
LED flat head for front panel mounting.
Delivery scope
Lamp with lower ring and mounting
nut housing: Metal housing bright chrome-plated
With thread M8x0.75mm
Mounting type: Screw fixing
Tightening torque: 100 CN·m
Installation opening: Ø8+0.2 mm
Protection class according to DIN EN 60529: IP50
Connection: 2x flat plug 2.8x0.8 mm
Soldering temperature 250°/3 sec.
Operating voltage:
12/14V, 24/28V DC - red, yellow, green
12/14V, 24/28V DC(AC) - blue, white
The current consumption/brightness for alternating
voltage is about 50% compared to DC operation
reduced.

Delivery content

  • Incl. attachment material

Keywords

02050007087953, Signal Construct, SMCP08221, led, indicator light, led indicator light

Yellow and silver electrical component, likely a push button or switch, with a metallic shiny surface and two terminals.
Technical drawing of a connector: M8x0.75 thread, total length 30.8 mm, with flat plug 2.8x0.8 mm.
