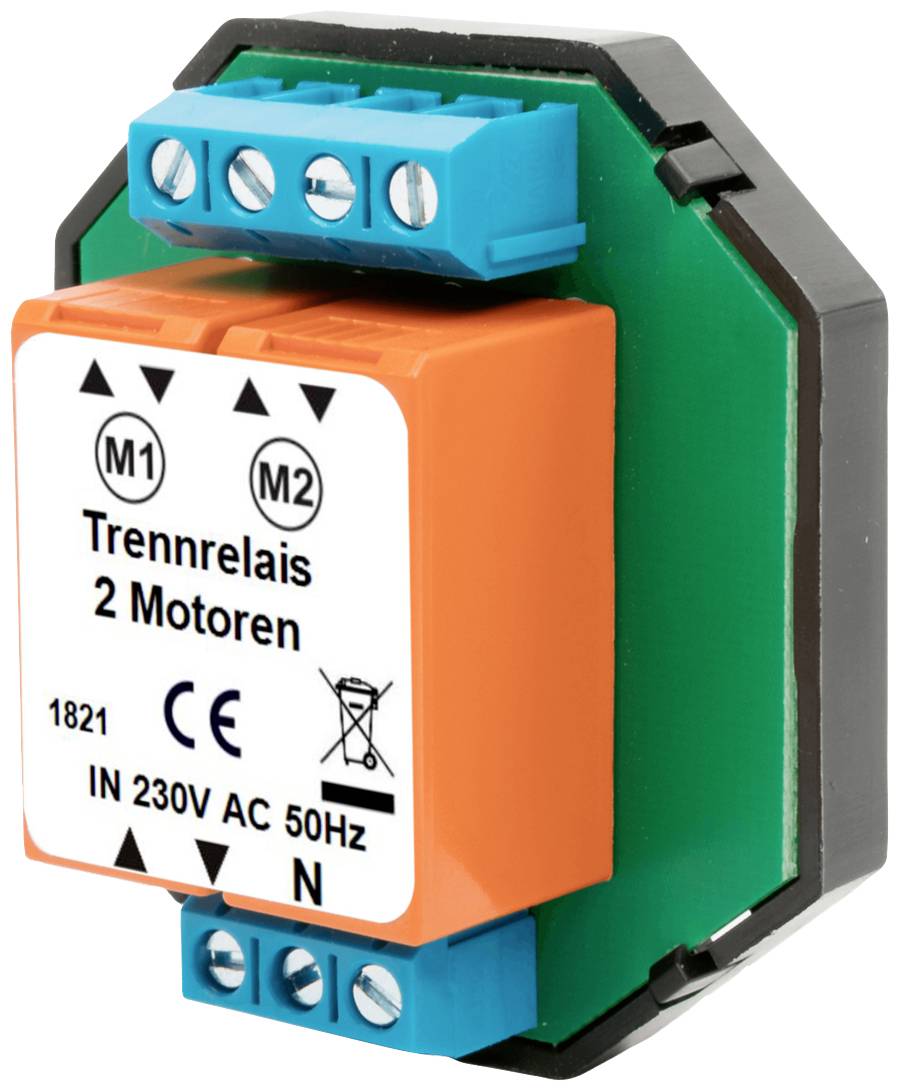

Schellenberg 24201 Relay Compatible with Schellenberg Standard/Plus

Overview

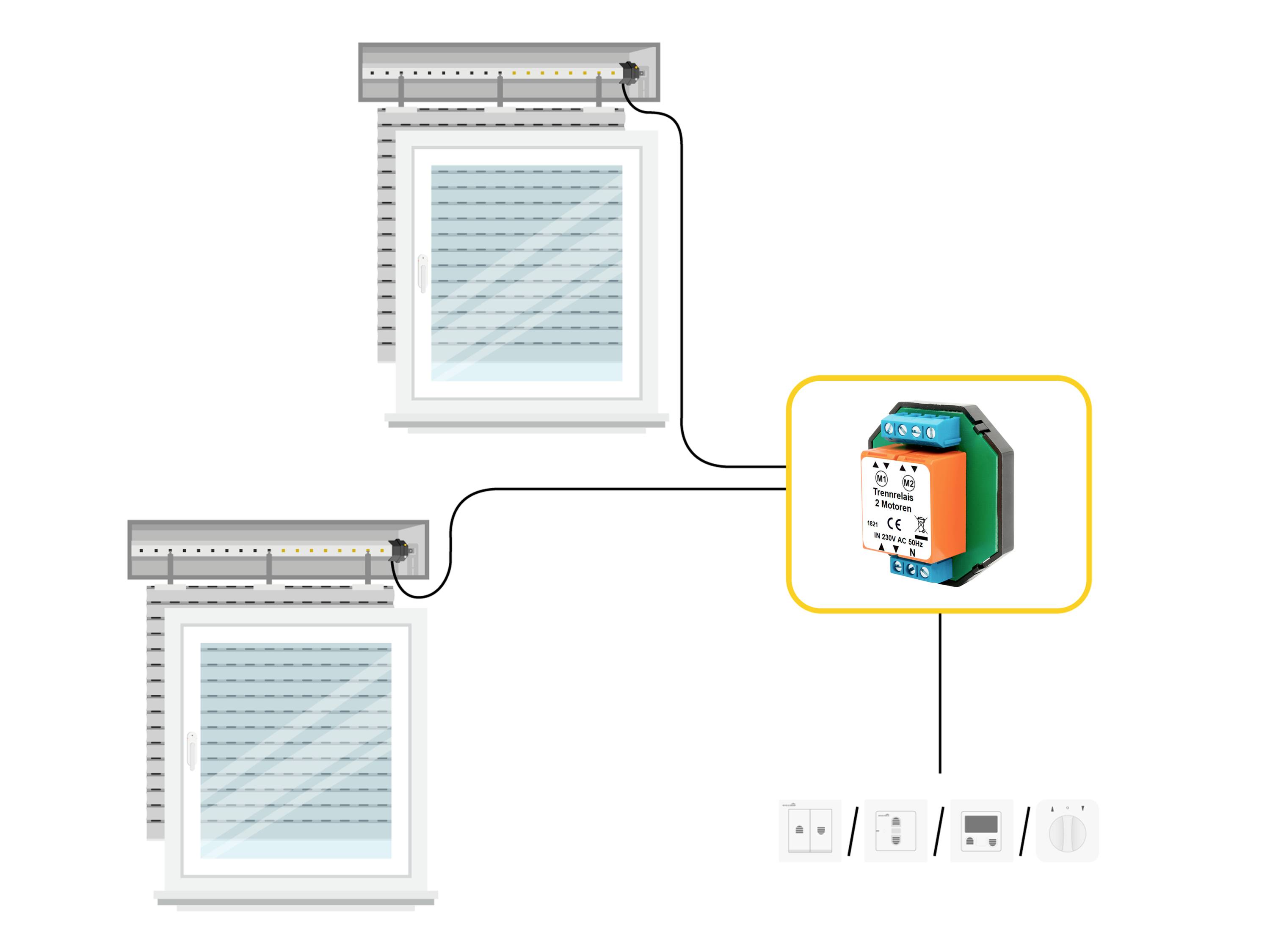

Simultaneous control of two roller shutter motors
ideal for Schellenberg standard and PLUS tubular
Total switching capacity of max. 6 A (3 A per drive)

Description

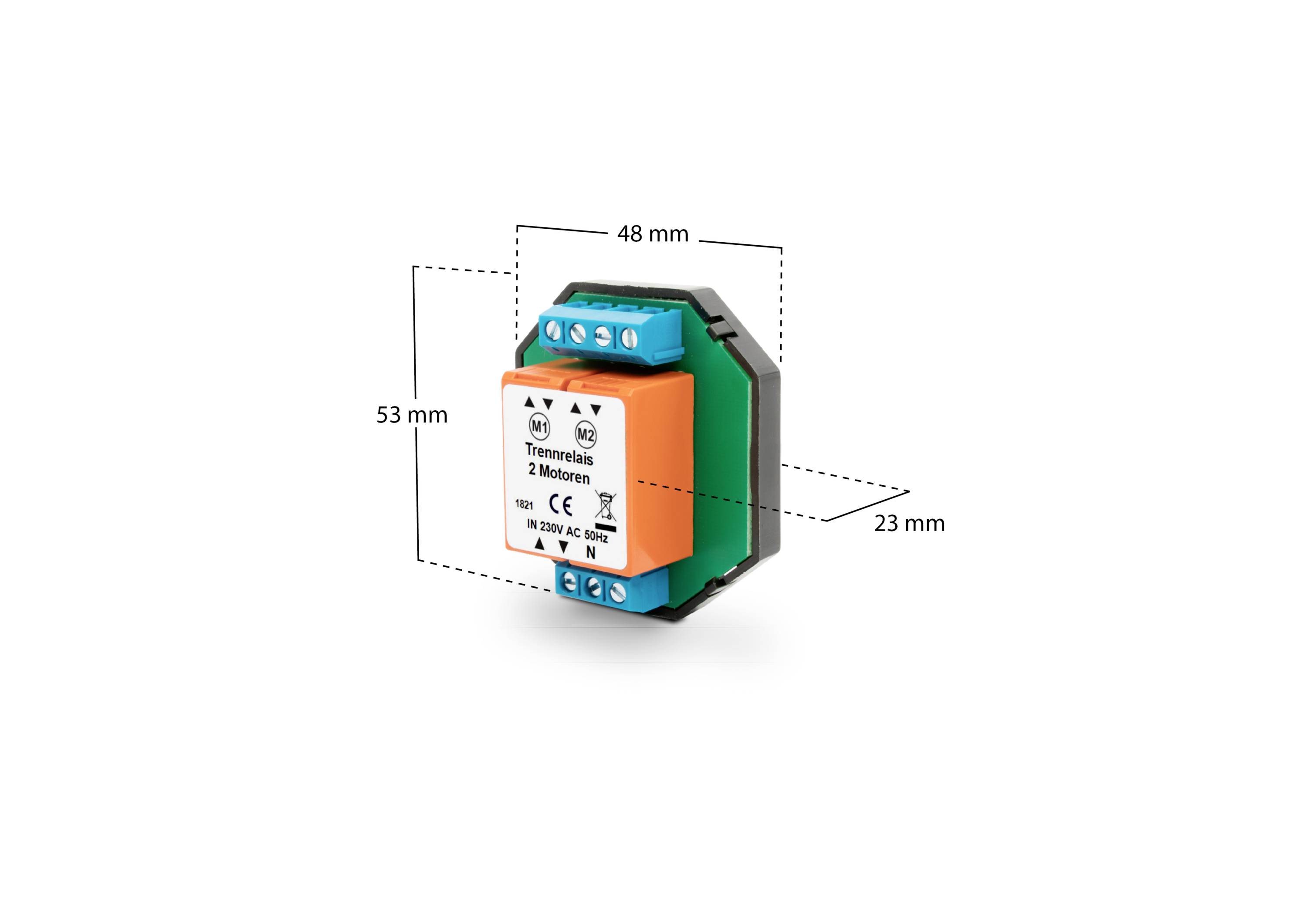

The shutter release relay is required if you want to control two roller shutter motors at the same time, for example, via a switch. It is ideally suited for the group control of Schellenberg tubular motors of the models STANDARD or PLUS, but can also be used for similar roller shutter motors of other manufacturers. The shutter release relay requires an operating voltage of 230 V AC/50 Hz and has a total switching capacity of max. 6 A, was 3 A per roller shutter motor. The 2-fold roller shutter relay is installed in a flush-mounted socket with a diameter of 60 mm and a depth of 40 mm and is only suitable for dry indoor areas. Alternatively, it can be installed in a surface branch box with dimensions 70 x 70 mm.

Delivery content

• 1 x 2-way shutter relay
• Installation instructions.
