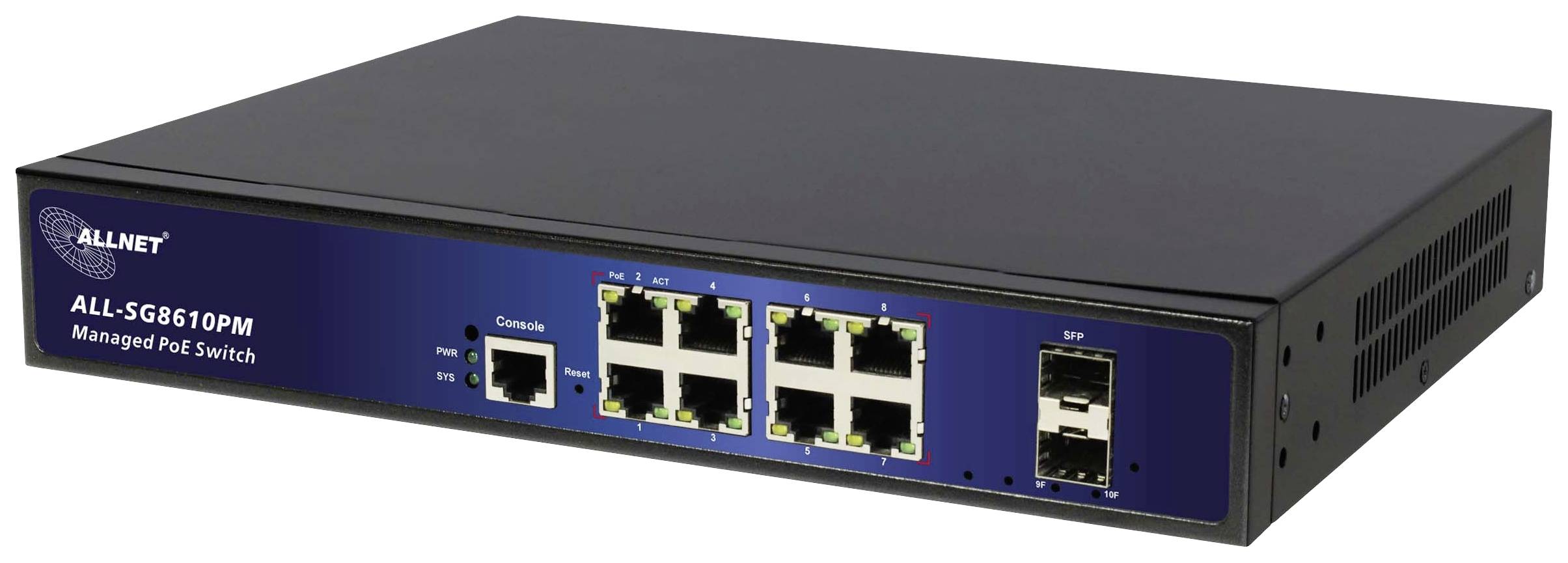

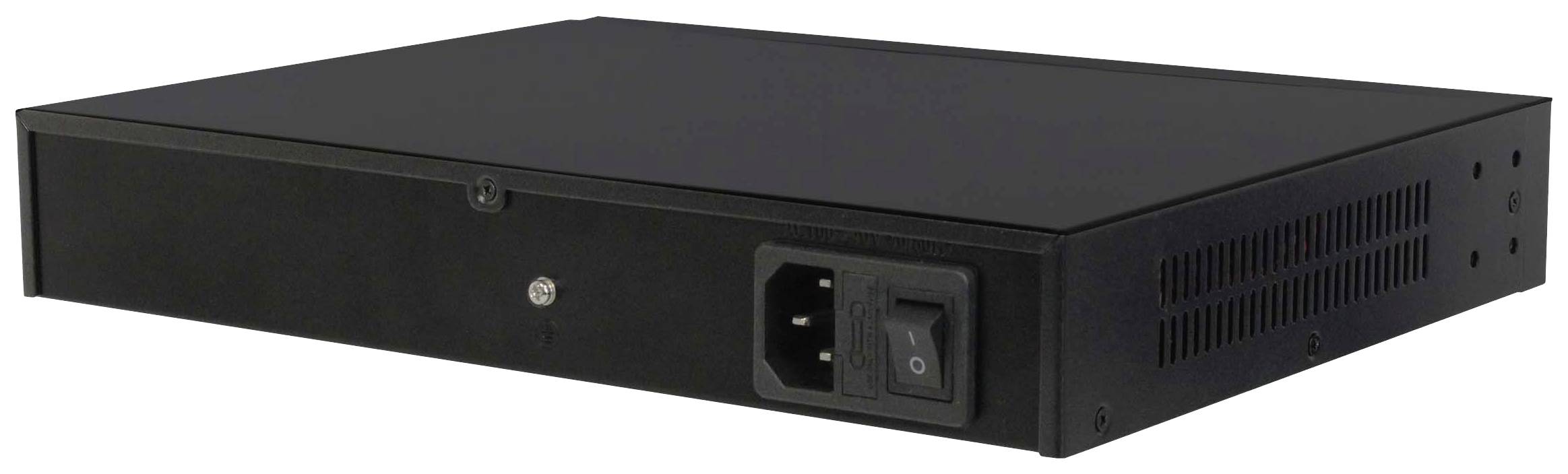

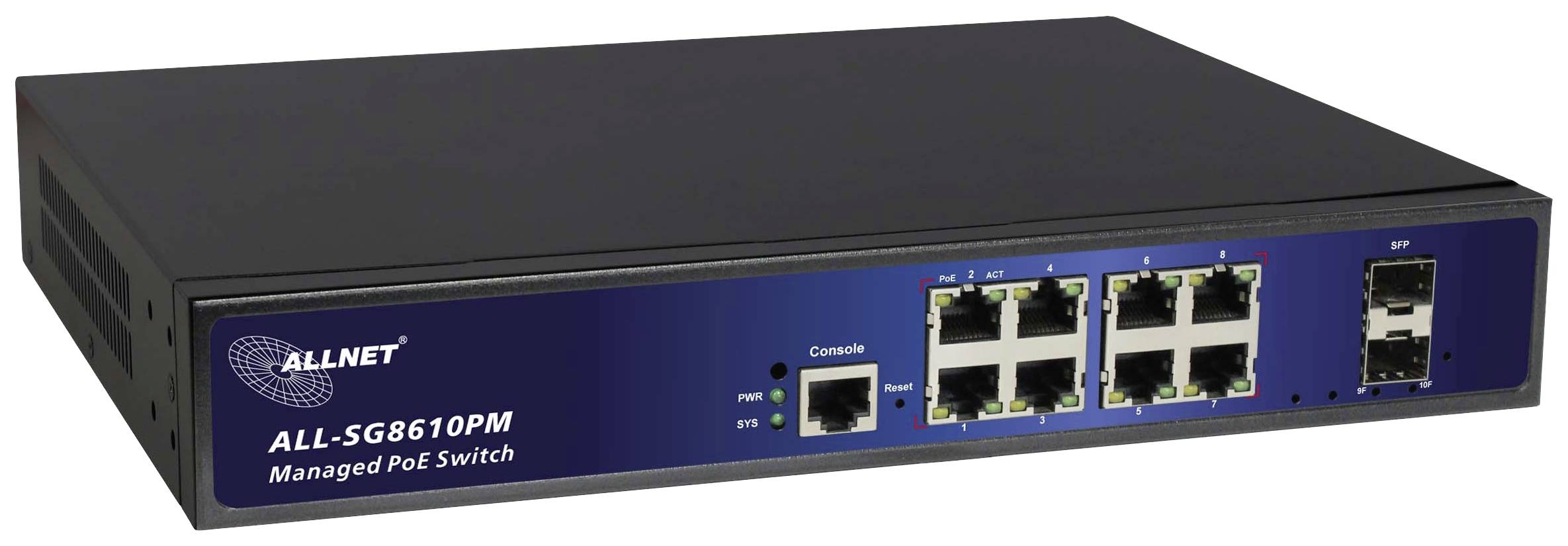

Allnet ALL-SG8610PM Network switch 8 + 2 ports 10 / 100 / 1000 MBit/s PoE

Product description

Overview

8-port 10/100/1000Mbit/s with full PoE support
2x SFP slots for optional MiniGBICS
PoE power 4x a´ 30 watt (IEEE802.3at or 8x IEEE802.3af)
FANLESS DESIGN with internal power supply
Supports L2+ switching functions such as 802.1Q VLAN, mirroring, port isolation, IGMP snooping, DHCP snooping, LLDP, POE+ Management, IP Source Guard, ARP Inspection, ACLs, etc.
Support for Spanning Tree STP(802.1D) and RSTP(802.1W) and MSTP(802.1s).
Support for advanced management via WEB, CLI, TELNET, SSH, SNMP.
Support for cable diagnostics and SFP DDM.
Supports PoE management, such as PoE schedule, PoE-PD-Alive.
Supports G. 8032 quick ring Protocol. Self-recovery time 20ms.
Supports IEEE1588 v2, transparent clock (TC)
Support DDM, SFP digital diagnostic monitoring
Supports IPv4 and IPv6 static routing capabilities
Support for memory and CPU monitoring
4kV overvoltage protection, 6KV contact/8kV air protection
PoE budget 130 W.

Description

THE ALL-SG8610PM is a managed Layer 2+ Gigabit PoE switch with intelligent PoE capabilities to improve the availability of critical business applications. It offers IPv6/IPv4 management and an integrated L2+ gigabit switching engine together with 8*10/100/1000BASE-T ports with 30 watt 802.3at PoE+ and 2 gigabit SFP slots. With a total power budget of up to 130W for various types of PoE applications, it provides fast, secure, and cost-effective Power-over-Ethernet networking solutions for IP monitoring in small businesses and businesses.
THE ALL-SG8610PM is programd for advanced switch management functions such as 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Loop and BPDU Guard, IGMP Snooping and MLD Snooping. In addition, the Link Layer Discovery Protocol (LLDP) is included as a Layer 2 protocol to gather basic information about neighboring devices in the local broadcast domain.
