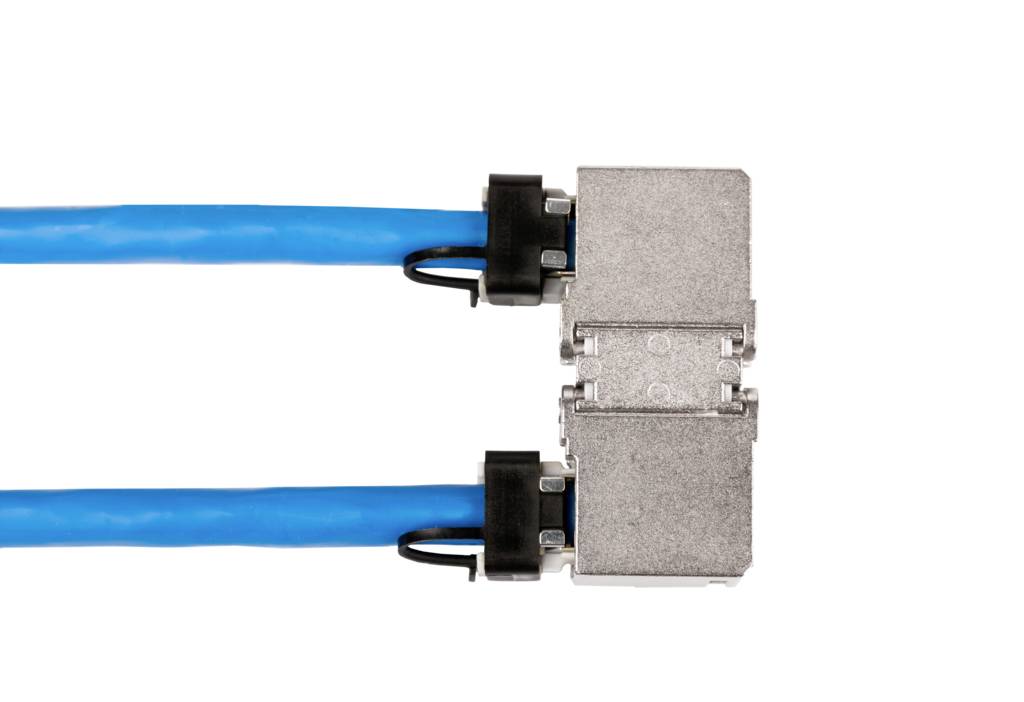

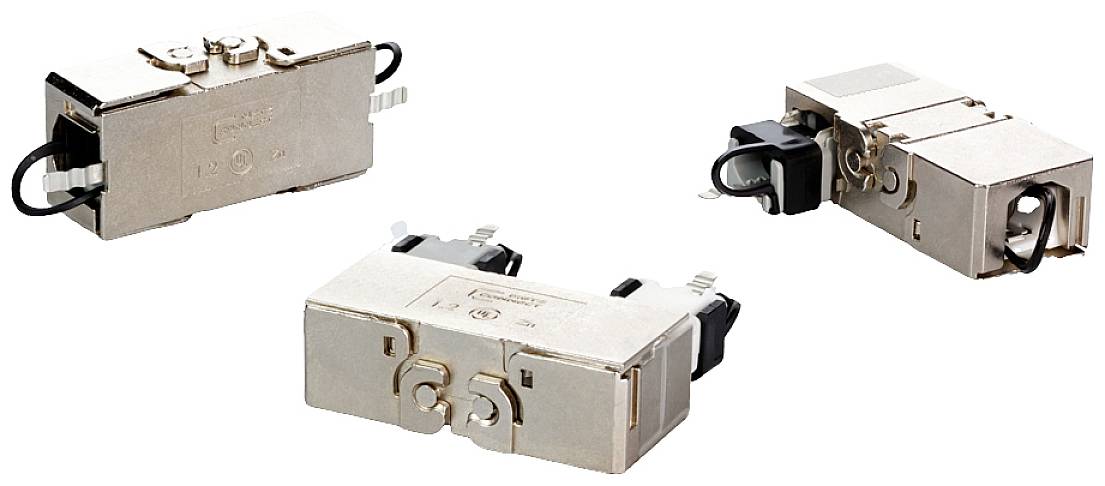

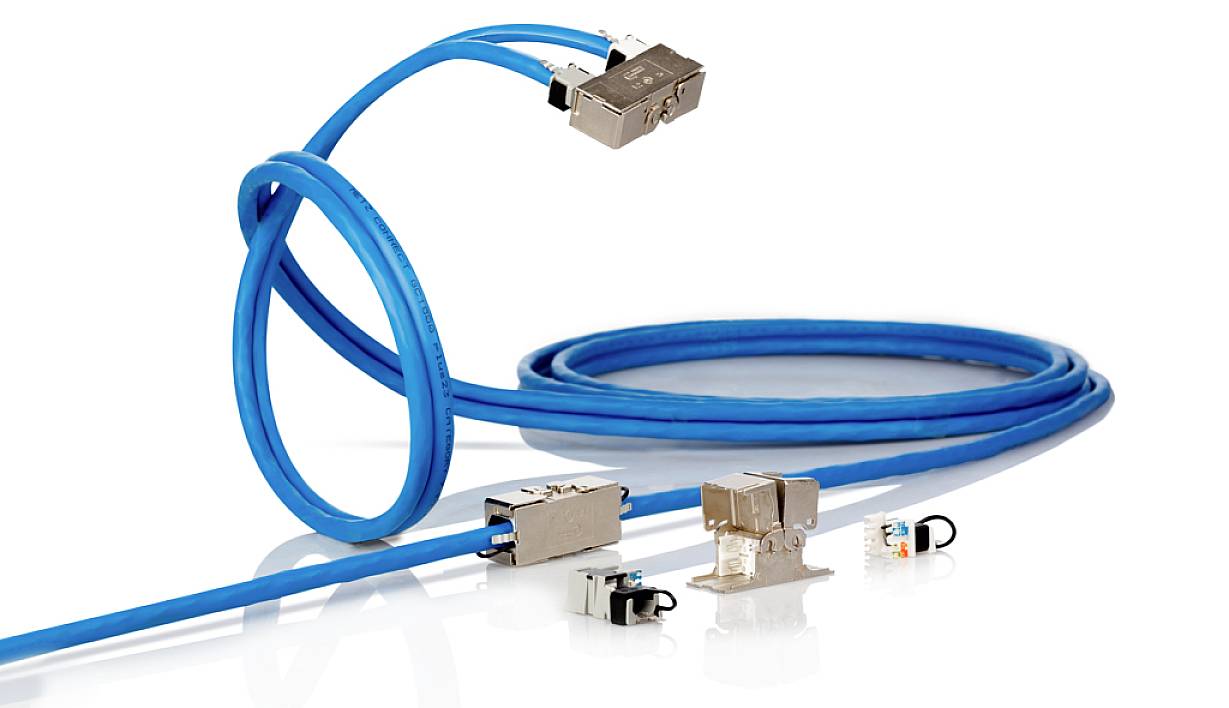

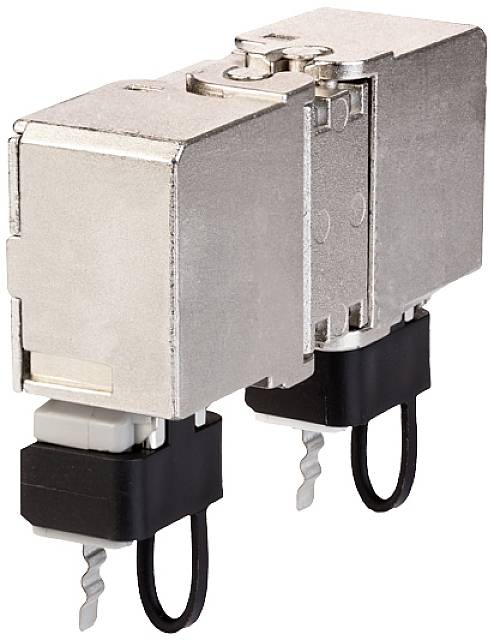

Metz Connect RJ45 Networks Adapter CAT 7a [1x RJ45 socket - 1x RJ45 socket] Silver

  • item model number: S669862
Metz Connect RJ45 Networks Adapter CAT 7a [1x RJ45 socket - 1x RJ45 socket] Silver
Metz Connect RJ45 Networks Adapter CAT 7a [1x RJ45 socket - 1x RJ45 socket] Silver
Metz Connect RJ45 Networks Adapter CAT 7a [1x RJ45 socket - 1x RJ45 socket] Silver
Metz Connect RJ45 Networks Adapter CAT 7a [1x RJ45 socket - 1x RJ45 socket] Silver
Metz Connect RJ45 Networks Adapter CAT 7a [1x RJ45 socket - 1x RJ45 socket] Silver
Metz Connect RJ45 Networks Adapter CAT 7a [1x RJ45 socket - 1x RJ45 socket] Silver
Metz Connect RJ45 Networks Adapter CAT 7a [1x RJ45 socket - 1x RJ45 socket] Silver
16,02 €
VAT included
plus
Delivery time: 3-4 days
in stock
30 days free return shipment
Metz Connect RJ45 Networks Adapter CAT 7a [1x RJ45 socket - 1x RJ45 socket] Silver
16,02 €
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece: 15,85 € 1,1% savings
from 5 piece: 15,69 € 2,1% savings
from 10 piece: 15,53 € 3,1% savings

Product description

Overview

Field-attachable class EA cable connector for 8-wire cables (optionally also for 4-wire cables)Cable exit angled leading back 360°For connection/extension/repair/relocation of Cu data cables up to Cat. 7A

Characteristics

In conjunction with cat. 6a or higher Cu-cables are fulfilled the class EA up to 500 MHz according to ISO/IEC 11801, DIN EN 50173For 10GBit Ethernet (IEEE 802.3an), Remote Power (PoE, PoE plus, UPoE and 4PPoE), HDBaseT, SAT-IP and AVoverIP suitableCompact design, length 46.6 mm x width 14.7 mm x height 31.8 mmRobust, one-piece and reusable housing made of zinc die-cast, refinedSimple assembly - installation without special tools, strain relief by snap-in clip directly at the loading pieceIntelligent cable management in the loading piece - also suitable for strongly drilled wiresShield connection and strain reliefIdentification of the wire assignment T568A and T568B directly on the charging pieceSimple extension or relocation of existing infrastructure C6A module by re-usable or re-usable loading piecesEasy to mount connection of data lines AWG 26/1 to 22/1 (single-wired) and AWG 26/7 to 22/7 (multi-wired) to IDC terminalsConductor diameter solid wire 0.409 to 0.643 mmConductor diameter stranded wire 0.483 to 0.762 mmSuitable for cable jacket diameters from 5.5 to 10 mmFully shielded design according to DIN EN 50173

Information

Please check the adapter pin layout. Depending on use, required pin layouts may differ.

Keywords

Metz Connect, 130863-06-E, network connector, ethernet connector, adapter

Metz Connect RJ45 Networks Adapter CAT 7a [1x RJ45 socket - 1x RJ45 socket] Silver
Metz Connect RJ45 Networks Adapter CAT 7a [1x RJ45 socket - 1x RJ45 socket] Silver
Metz Connect RJ45 Networks Adapter CAT 7a [1x RJ45 socket - 1x RJ45 socket] Silver
Metz Connect RJ45 Networks Adapter CAT 7a [1x RJ45 socket - 1x RJ45 socket] Silver
