PCE Instruments PCE-DT 65 Tachometer

Overview

Performance speed (rpm)
Surface speed (m/min)
Number of revolutions (counter)
Frequency (Hz)
Length measurement (m, in, FT, Yd)
Sturdy ABS plastic housing
easy to use

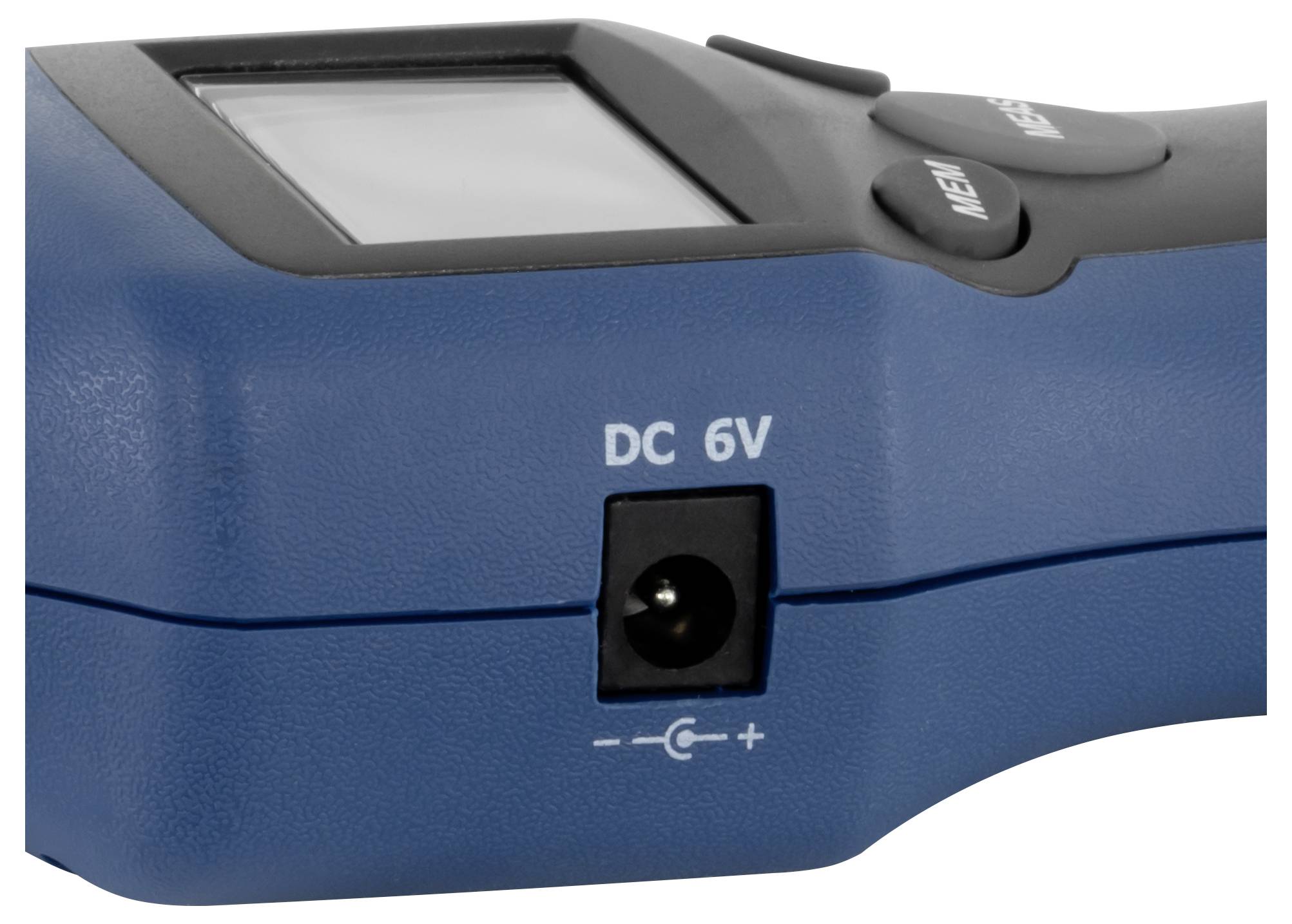

With connection for mains adapter 6 V
Illuminated digital display

Description

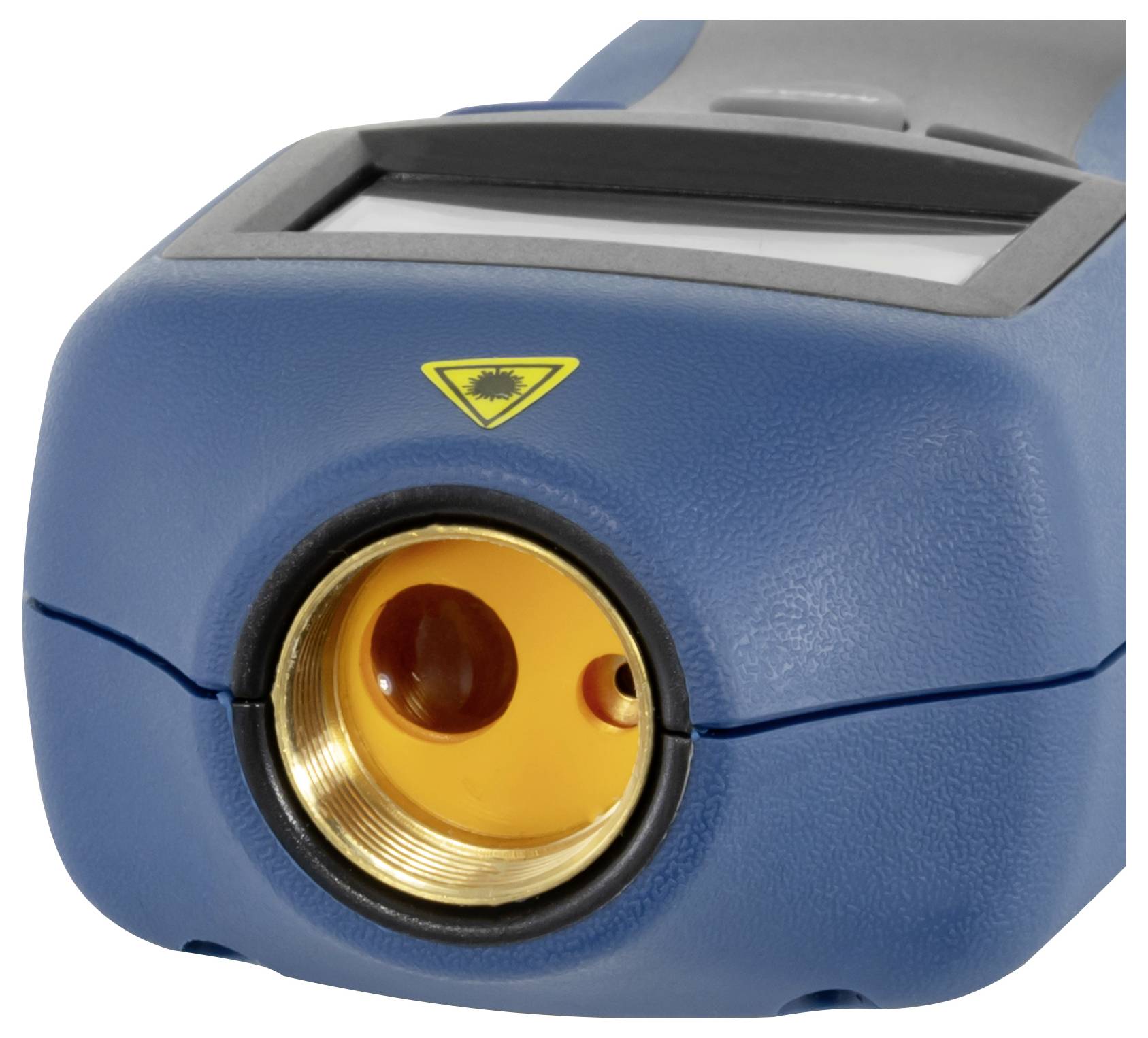

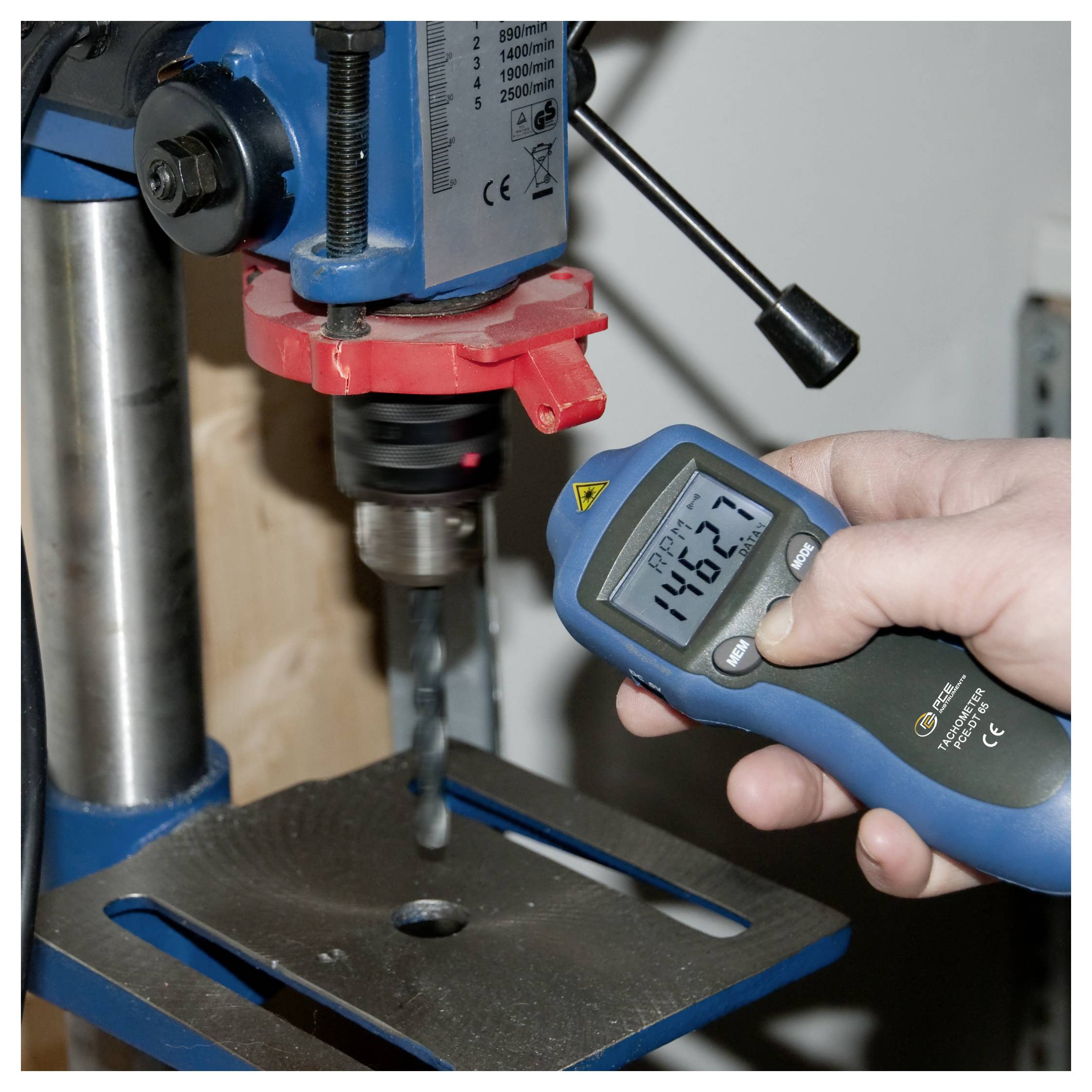

Laser revolution meter PCE-DT 65 Laser revolution meter for contact-free measurement by means of laser or mechanical attachments / for length measurement in m, in, FT, Yd / illuminated digital display The laser revolution meter is a digital, battery-operated, contact-free or mechanical measuring device, which can be used with the help of the in-built laser or mechanical attachments. The digital, optical laser revolution meter is ideally suited for determining the speeds of machines, parts and systems (motors and belt drives). The measurement of the laser revolution meter takes place contact-free with the help of a reflex mark, which is stuck on the rotating part and reflects the laser. Furthermore, you can use the mechanical attachments to measure rotational speeds or length of moving objects with the laser revolution meter (e.g. on conveyor belts). The mechanical measurement of the speed takes place with a contact tip as a measuring attachment, which is placed directly at the axis point of the rotary motion. For speed or length measurement, a measuring wheel is placed on the adapter of the laser revolution meter.

Delivery content

• Scope of delivery of the laser revolution meter PCE-DT 65
• 1 x laser revolution meter PCE-DT 65
• 1 x adapter attachments
• 1 x adapter wheel
• 1 x probe tip (outer cone)
• 1 x Measuring hollow tip (inner cone)
• 1 x belt pouch

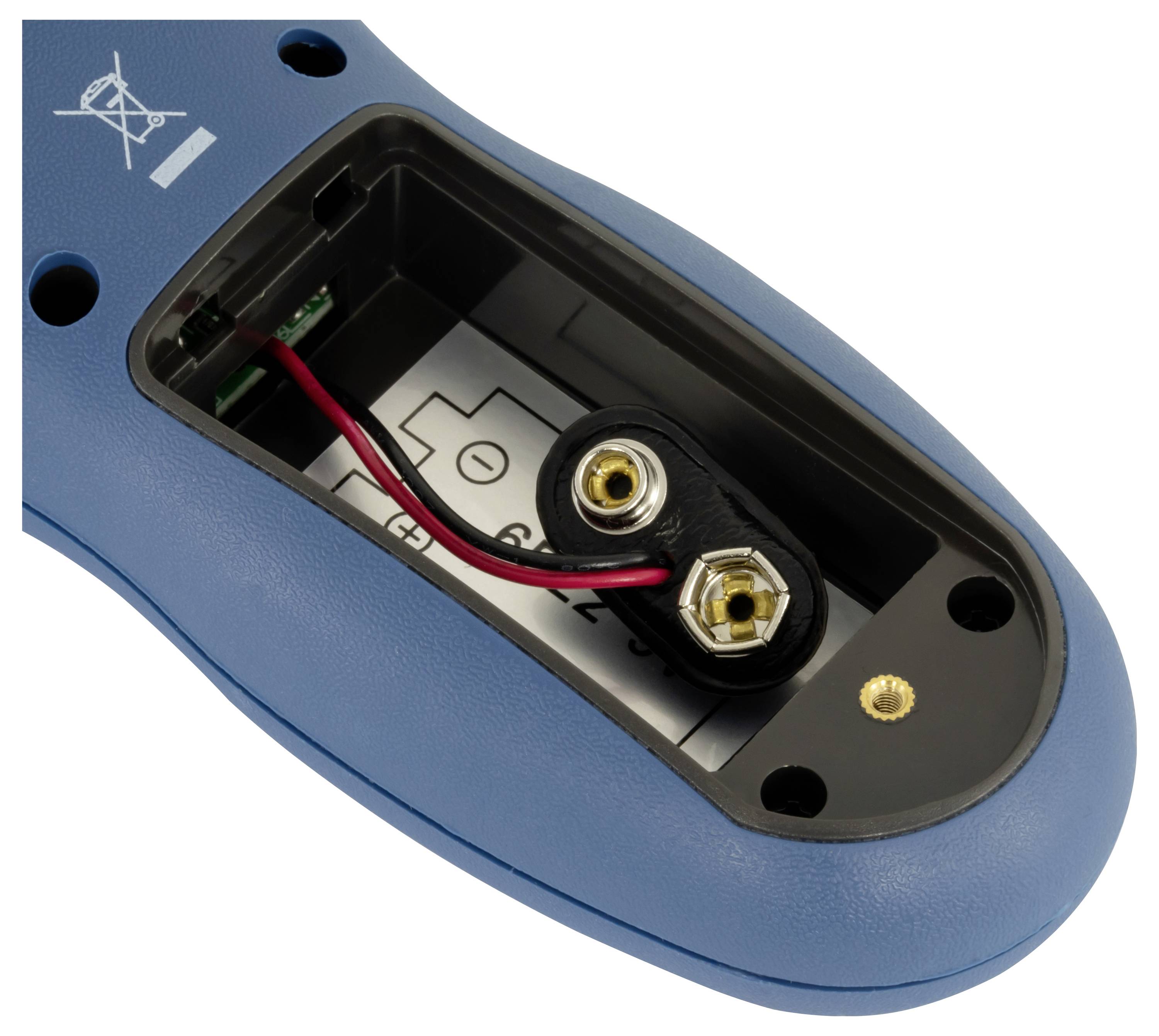

• 1 x battery
• 3 x strips of reflective tape (20 cm each)
• 1x user manual
