Description

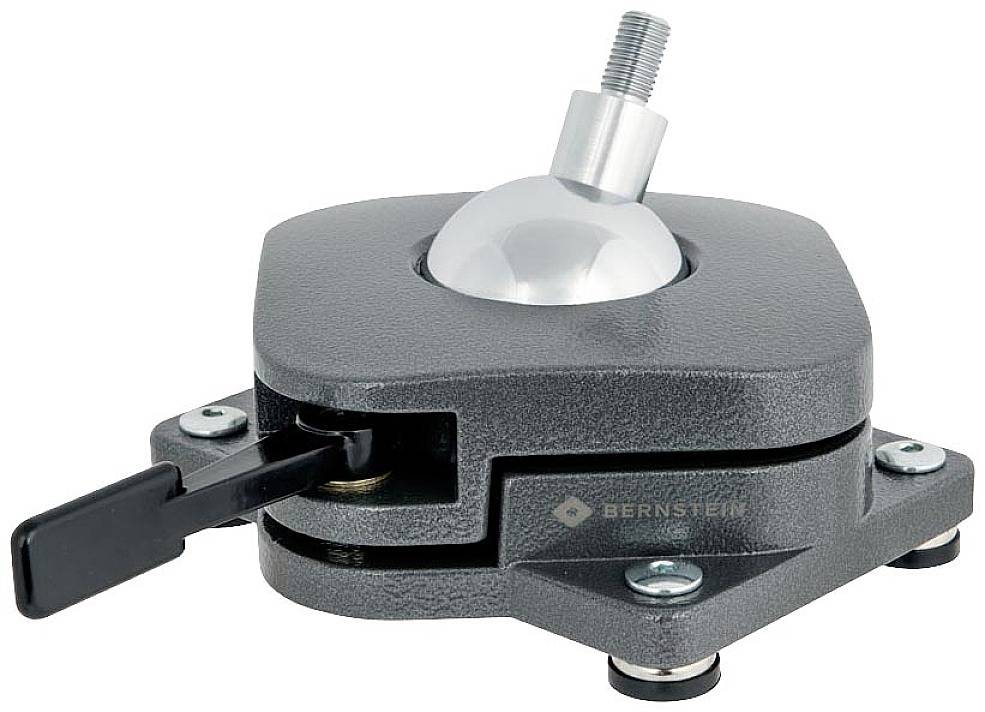

Connection thread M12 x 1.5 mm (special thread) suitable adapter gladly request directly; maximum torque: Ball-Ø 40 mm approx. 24 Nm, ball-Ø 60 mm approx. 100 Nm; retaining forces of the ball at the height of the threaded pin: Ball-Ø 40 mm approx. 45 kg (441N), ball-Ø 60 mm ca140 kg (1,372N). By degreasing the ball the clamping force increases.; Magnetic base: Holding force 32 kg horizontally, 15 kg vertically (magnet without cap); Aluminum castings powder coated; Steel parts chrome-plated, rust-free; by adjusting screw at the lower seat of the ball the ball-free movement can be adjusted from loose to very firm.; For safety-related parts, please note that we cannot provide safety for the holding forces without knowing your specific application. The ball can behave differently under different physical conditions than in the test laboratory with optimal test environment.
