Serial interface for reading the measured data (optional)
Operation and monitoring free operation
Sensor short-circuit and sensor interruption are detected immediately
Adjustable for heating or cooling
Data retention in case of power failure

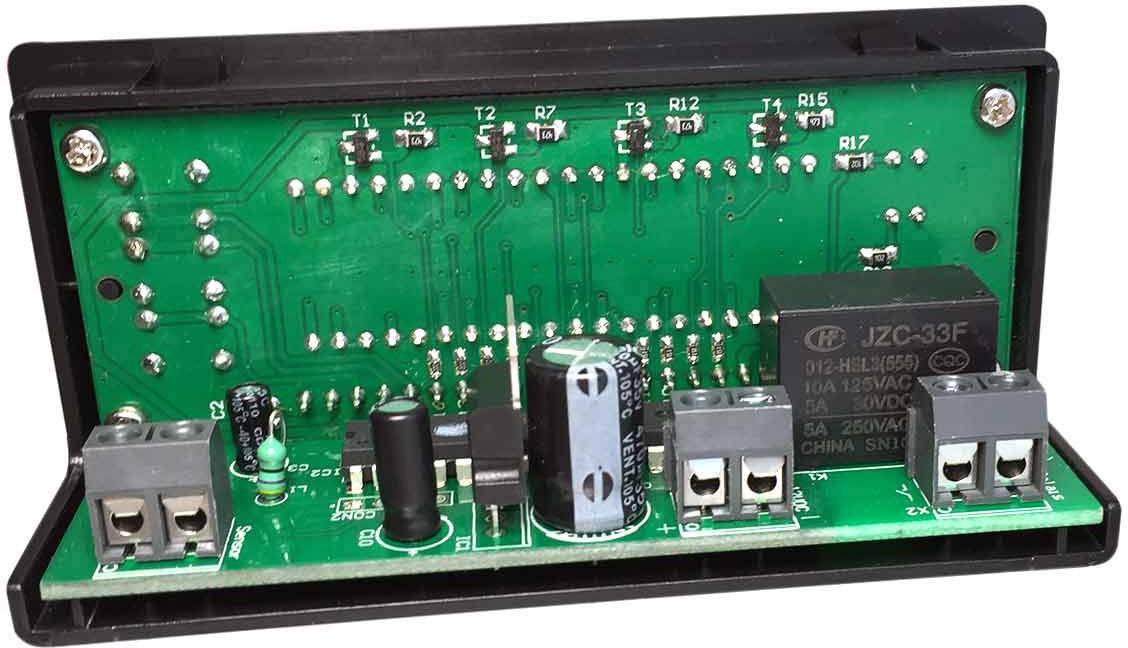

The TSM 1000 temperature controller in a suitable mounting frame is suitable for space-saving installation in control cabinets. It can also be integrated into an existing circuit.
It is ideal for all applications where temperature control in heating or cooling mode is required. An external temperature sensor (Pt1000) measures measuring ranges from -99 to +850°C. The device can be used independently, e.g. as a frost monitor, for central heating, air conditioning, incubator, etc., but also as a replacement for defective mechanical thermostats or for digital thermometers.
Simple application
Clear and easy to use and safe to use: Sensor short-circuit and sensor interruption are detected immediately. Relay switches off in case of sensor error. The set switch-on and switch-off temperature is retained even in the event of a power failure.
Switching temperature
The switching temperature is set in1°Cswitching temperature steps.
Large measuring range | Pt1000
In the new devices, the standardized external temperature sensor Pt1000 records measuring ranges from -99 to +850°C
- for even more areas of application.
Temperature sensor PT 1000 not included in scope of delivery.
04260003173620, 4260003173620, H-Tronic, 1114470, TSM 1000
