Chauvin Arnoux PEL 52 Network diagnostics 1-phase Data logger

Overview

Compact power and energy recorder for two-phase or two single-phase applicationsPerfectly suitable, in order to record the consumption of individual consumersSimplifies the search for energy guzzlers, in order to optimize the power consumptionBreakdown of the measured power / energies: Effective power P, basic vibration active power PF, basic vibration reactive power QF, total reactive power N, distortion power D, Apparent power SAutonomic by self-supply via the voltage measurement inputSimple communication via web server interface for remote access via the networkPEL transfer software for configuring the device as well as evaluating and exporting the data

Description

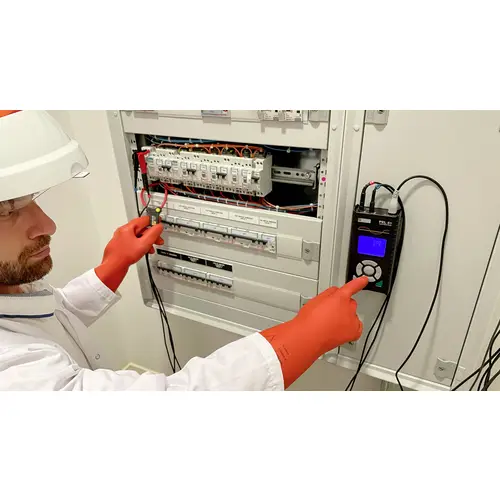

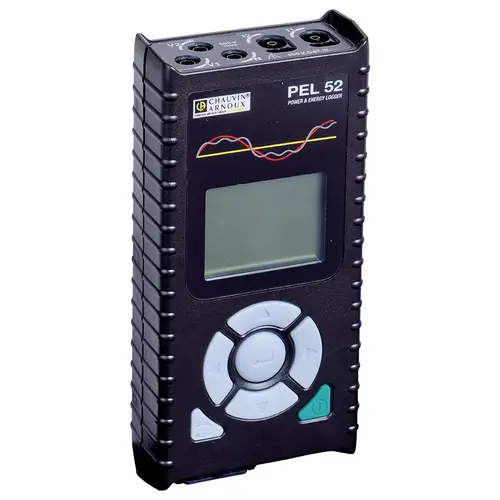

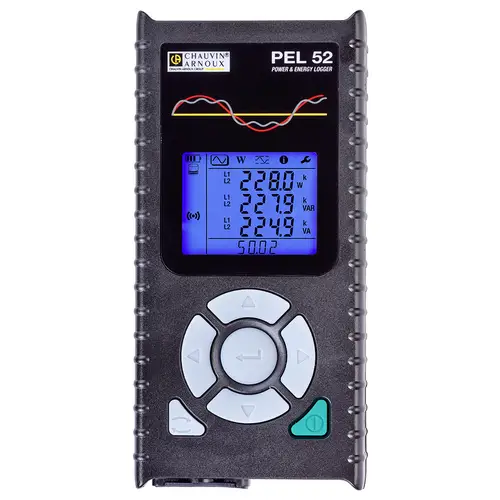

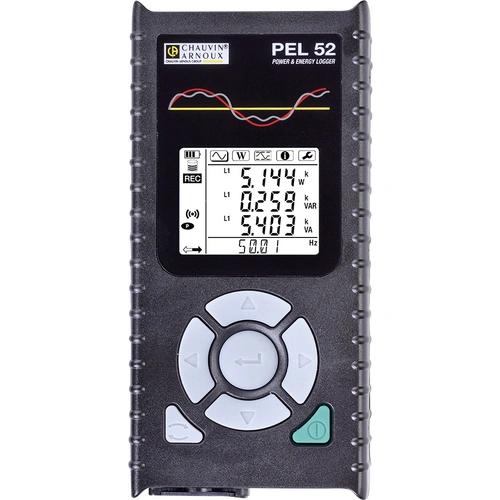

The PEL52 Power and Energy Recorder provides a simple complete solution for electricians to monitor power consumption, whether as part of energy saving measures or to improve the energy efficiency of buildings. The PEL52 is compact, fits well in the hand and is user-friendly. Thanks to its magnetic casing it can also be placed without any problem in small control cabinets. You do not need to turn off the power to put it into operation. In addition, it supplies itself via the phase so that longer measurement campaigns are also possible. The illuminated LCD-display with multiple displays offers an excellent readability. PEL52 has 2 channels so that one can work on either two-phase or two single-phase systems. The PEL52 performs the following measurements, voltage and current measurement TRMS, power measurement W (P, PF), VA and var (N, Q1 and D) and measurement of PF, DPF, CF and THD. All data is stored on an SD card. The PEL52 has several communication modes for real-time monitoring and storage of measurement results. Software-Plus: Integrated software tool for breakdown of energy losses and direct conversion of energy into costs, the monetary value can be adjusted.

Characteristics

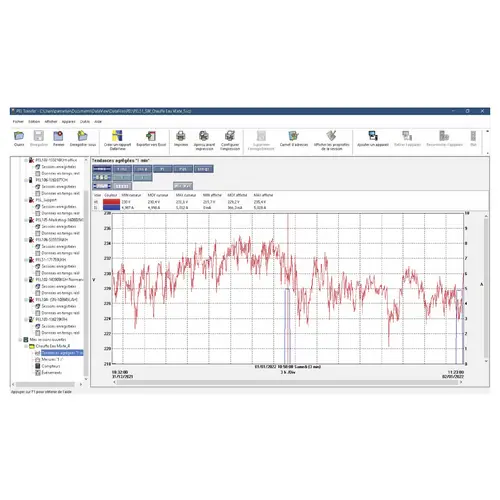

WLAN communicationEmbedded Web serverPEL Transfer® software for data backup, real-time display and analysis

Delivery content

• 3 voltage measuring leads (red/black)
• 3 alligator clips

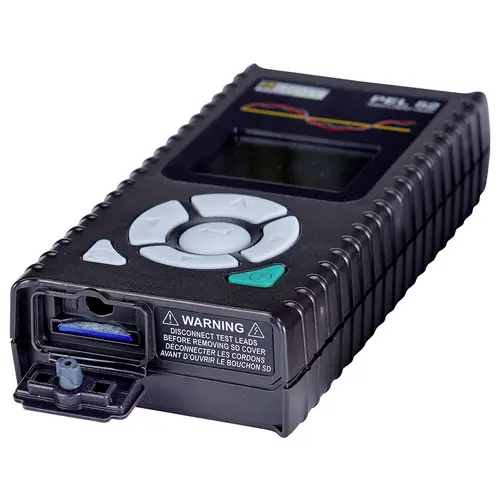

• 1 SD-card
• 1 power cables type C7
• 1 C8 adapter
• 1 Safety Data Sheet
• 1 Test report
• 1 multilingual quick start guide

Keywords

Chauvin Arnoux, P01157167, PEL 52, power grid diagostics, mains tester
