Overview
Y35 magnet with 40 ounces (1.14 kg)64 mm voice coil with X-Max. +/- 16 mmDouble-stitched bead

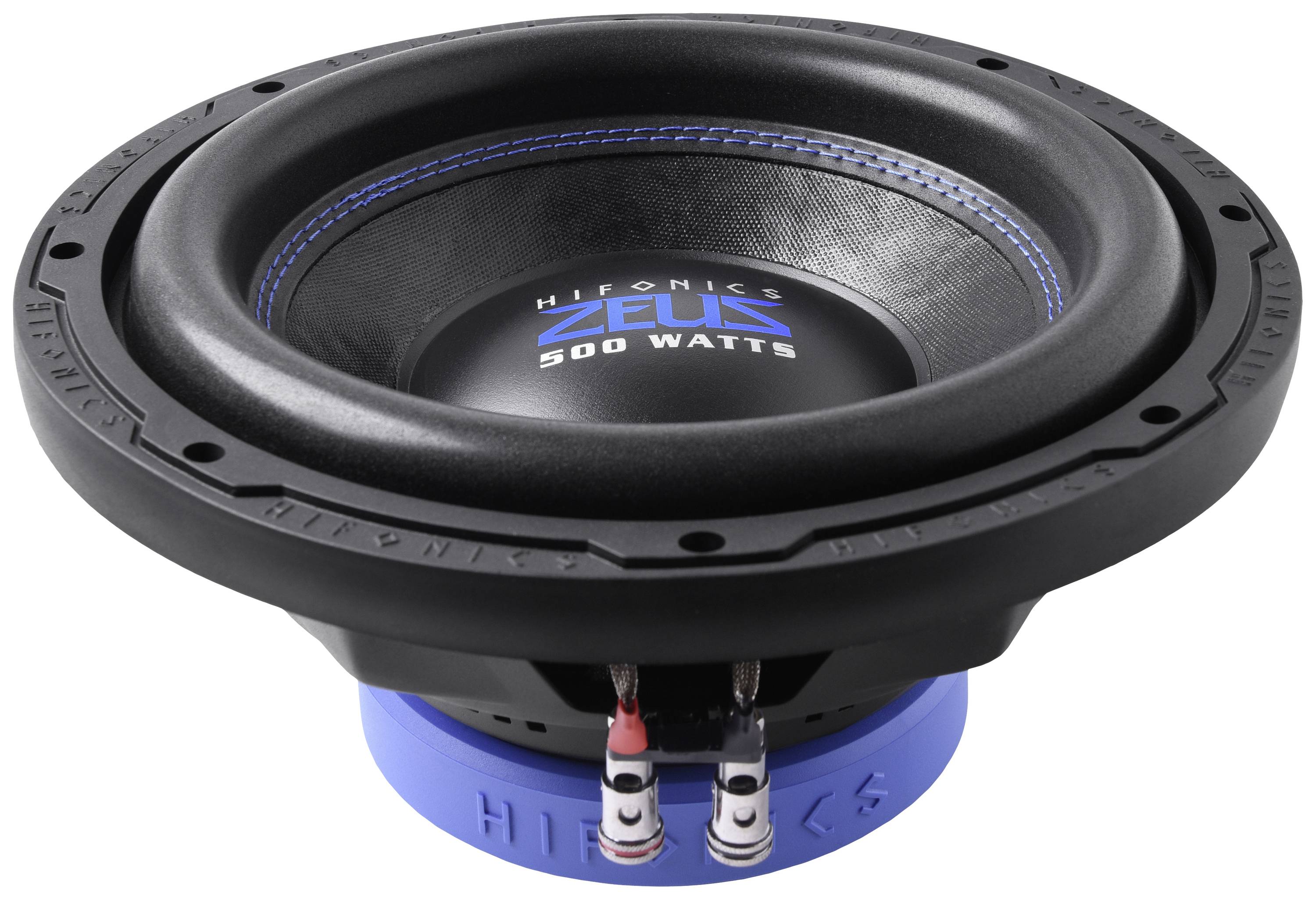

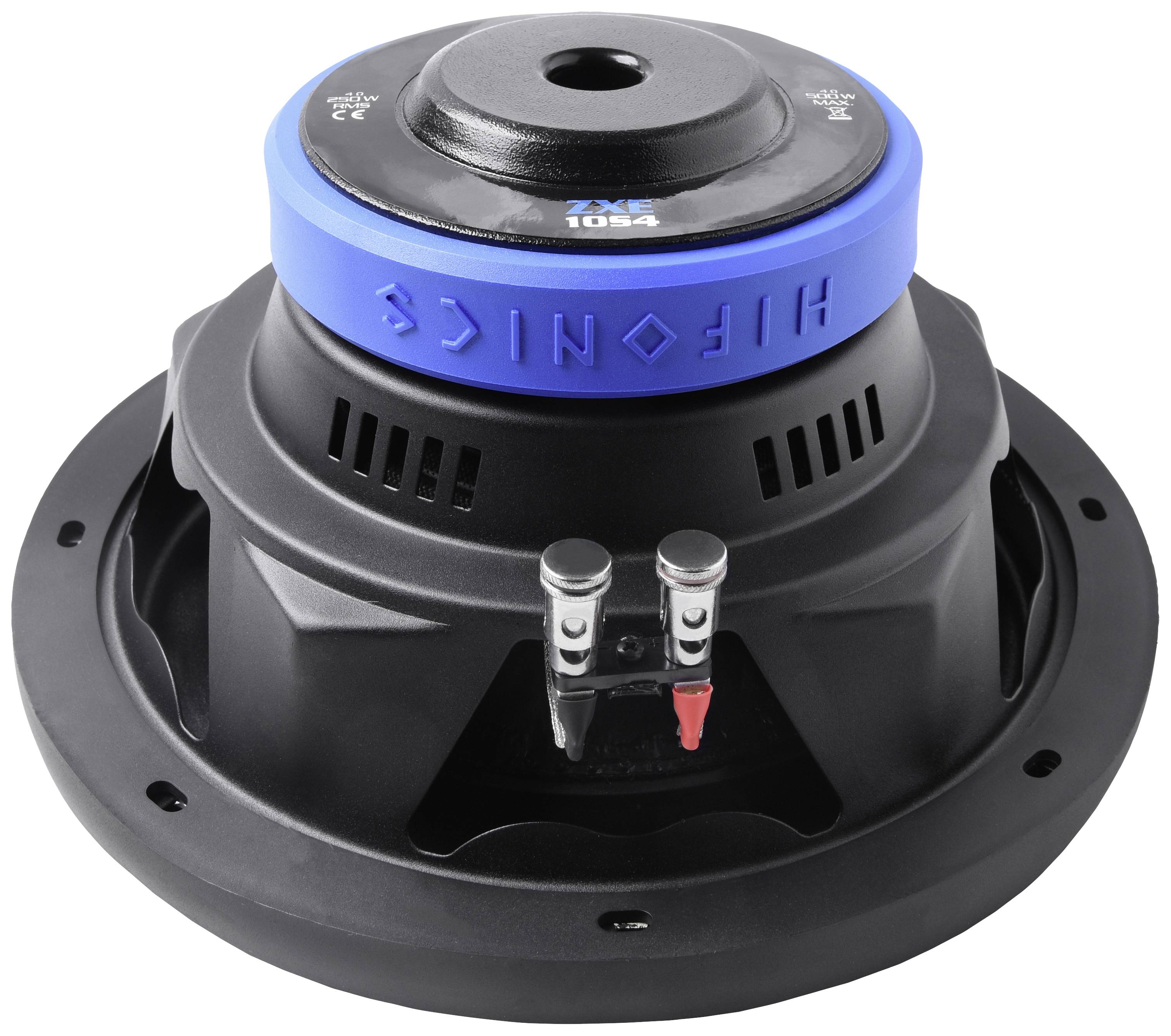

Hifonics ZXE10S4 Car subwoofer passive 500 W 4 Ω
CHF 77.93
VAT included
plus
Delivery time:
3-4 days
in stock
30 days free return shipment
CHF 77.93
VAT included
plus
Product description
Description
ZEUS ZXE START-UPThe core piece in the drive of the Hifonics ZEUS EVOLUTION woofers is a powerful Y35 magnets with a diameter of 140 mm that drive large 64 mm voice coils. These are ventilated with thermally sensible pole core bores. Moreover, so-called "bumped" T-plates (pole plates) ensure a longer stroke that reaches up to +/- 17 mm (X-Max). While economical woofers usually use pressed diaphragms, the ZXE woofers rely on expensive paper diaphragm with double-stitched seams and are renowned for its particularly good sound. All these components give the ZXE sub a very good degree of efficiency of 92 or 90 dB at 2.83Volt/1m, i.e. even with small inputs the basses already create high volumes. The Thiele-Small Parameters are designed in such a way that ZXE woofers can be used to develop powerful bass reflex speakers with proper depth and even medium-sized, closed enclosures. Even Free-Air application is possible.The Zeus basses also live up to the HF-style visually: A newly tooled gas packet, the blue magnet boat typical of Hifonics and the blue stitched surround-membrane seam proudly show the HiFonics brand signs.
Characteristics
Hand-cut and coated paper diaphragmRugged steel basketBlue magnet protector25 cm (10") Subwoofer250 W/RMS, 500 W/MAX., 4 ΩFs 39 Hz Qts 0.57 VAS 30.5 L 87 dBØ 238 mm, ‡ 120 mm
Keywords
Hifonics, ZXE10S4, car subwoofer, subwoofer
