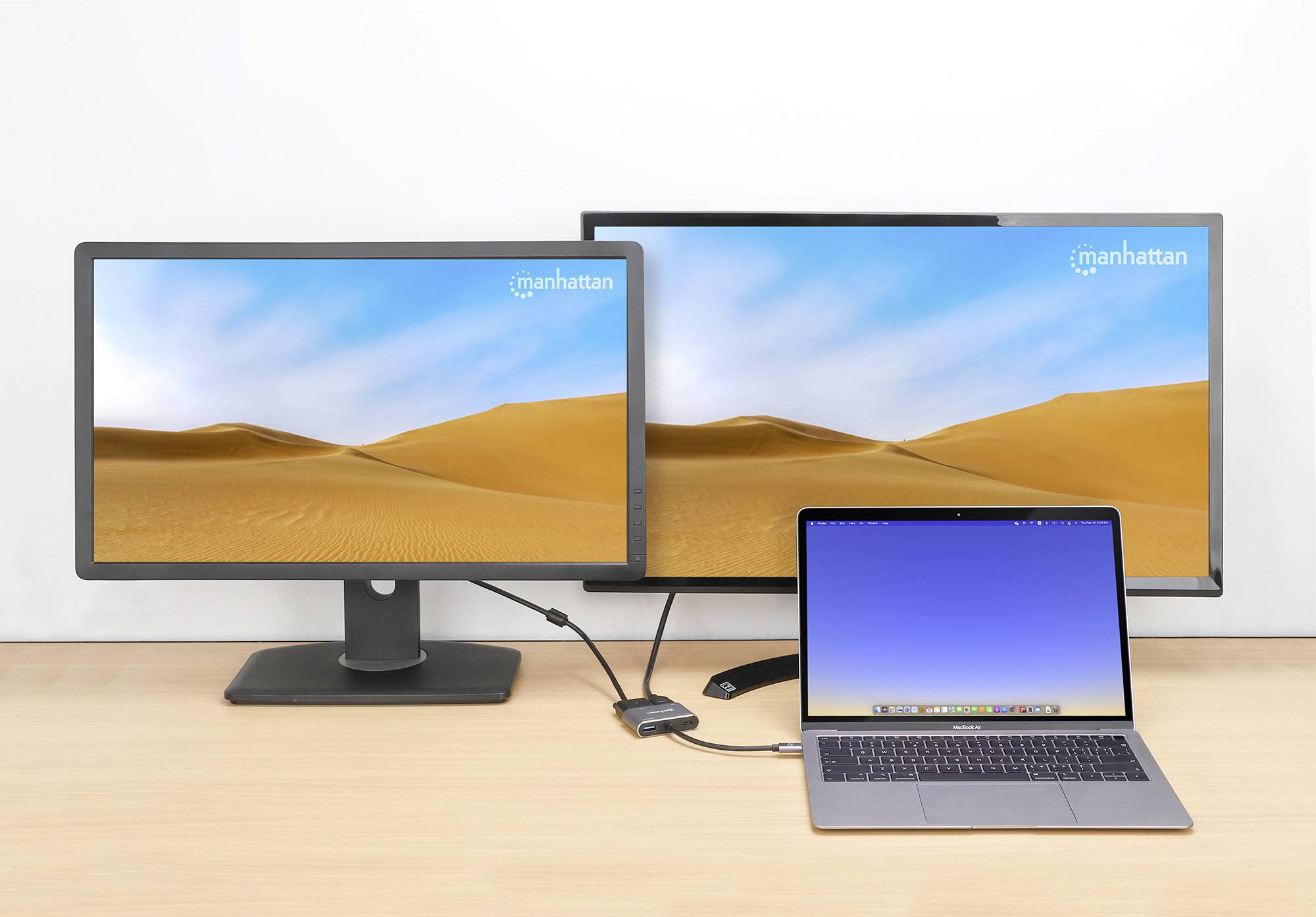

For connection of two displays, one peripheral device and for charging your devicesDual video output with resolutions of up to 1080p at 60Hz on both displaysSupports Duplicate and Enhanced Duplicate display modesSupports USB Power delivery (PD) function with up to 87 W; requires external PD charger - available from ManhattanCompatible with DisplayPort 1.2 Alternate Mode (DP Alt Mode)
USB-C to HDMI and VGA adapter - Connects laptop, MacBook, smartphone or tablet to Dual monitor setup plus USB-A peripherals and PD charging port
The Manhattan USB-C to HDMI & VGA 4-in-1 docking converter with Power delivery provides a fast, simple and convenient interface between USB type C devices (laptop, computer, MacBook, Chromebook, Tablet, etc.) and HDMI/VGA displays (monitor, TV, projector). Resolution is possible on a HDMI screen up to 4K@30Hz, 1080p at 60Hz and 1080p at 60Hz simultaneously when using both video ports. The USB A port with USB 3.2 Gen 1 (formerly USB 3.0) for connecting mouse or keyboard also makes this adapter suitable for a mini workstation or for connecting USB sticks, USB printers or USB hard drives. The installation remains fast and easy with Plug & Play.

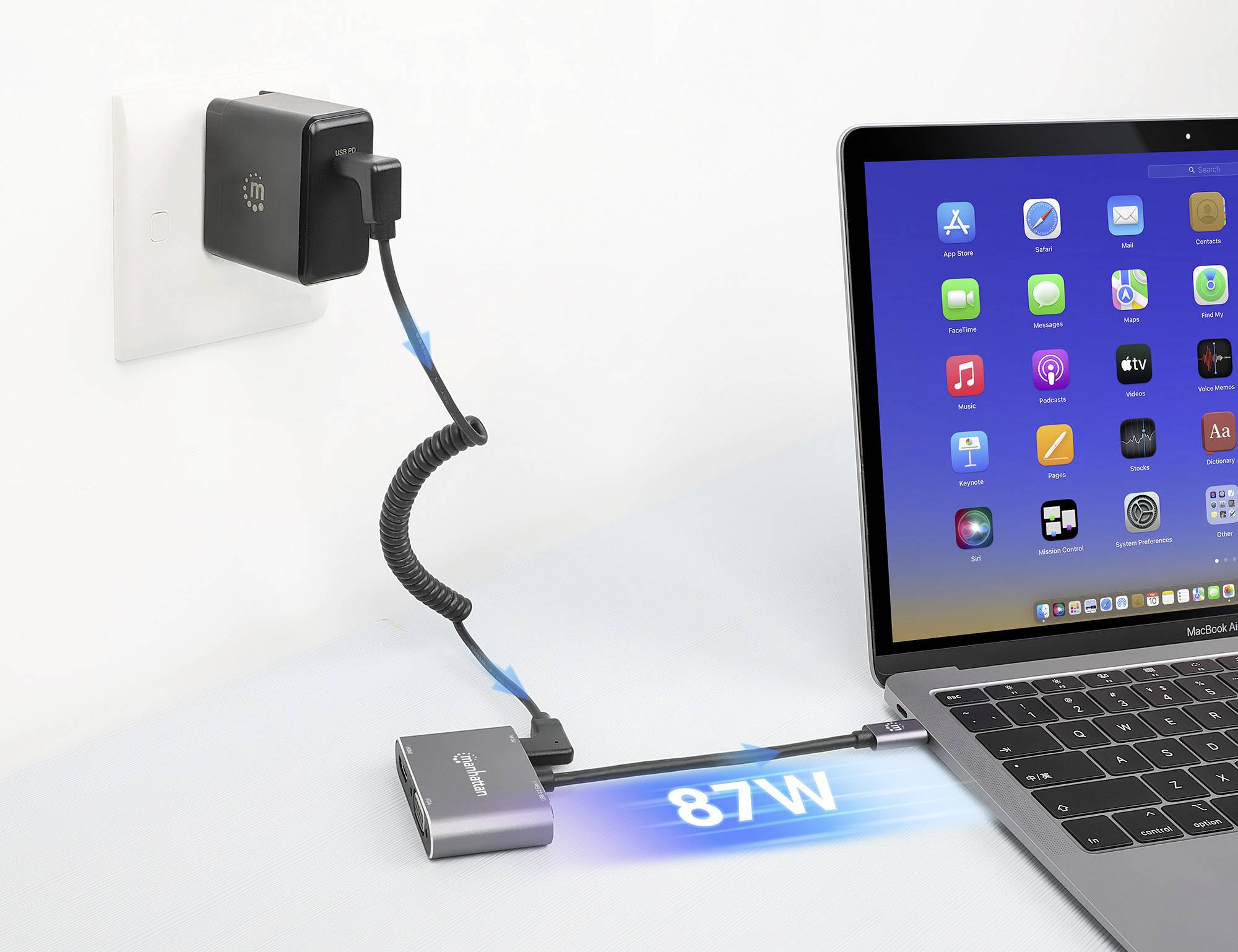

Up to 87 W charging power with USB-C® Power delivery (PD)
The built-in USB-C® PD port charges up to 100 W of laptop battery and charges your other mobile devices, such as smartphones or tablets, simultaneously via the USB-A port. The Power delivery function with all its advantages also provides for an especially fast, powerful and secure charging process.
Bring your mobile phone on the large screen
If you have a smartphone with Android 9 or higher and support for video output via USB-C®, you can use apps and media on a connected display. Watch a video on your television or show a presentation on a projector - directly from your mobile phone.
A multi-port adapter for on the move
Despite the many connection possibilities the robust aluminum housing of this adapter is compact enough with 62 x 40 x 15 mm for the outer compartment of a notebook bag.
Standards and certificates
DP 1.2 old mode via USB-C®
USB 3.2 1st Gen 1
HDMI 1.4
HDCP 1.4
CE
FCC
RoHS
REACH
UKCA
General

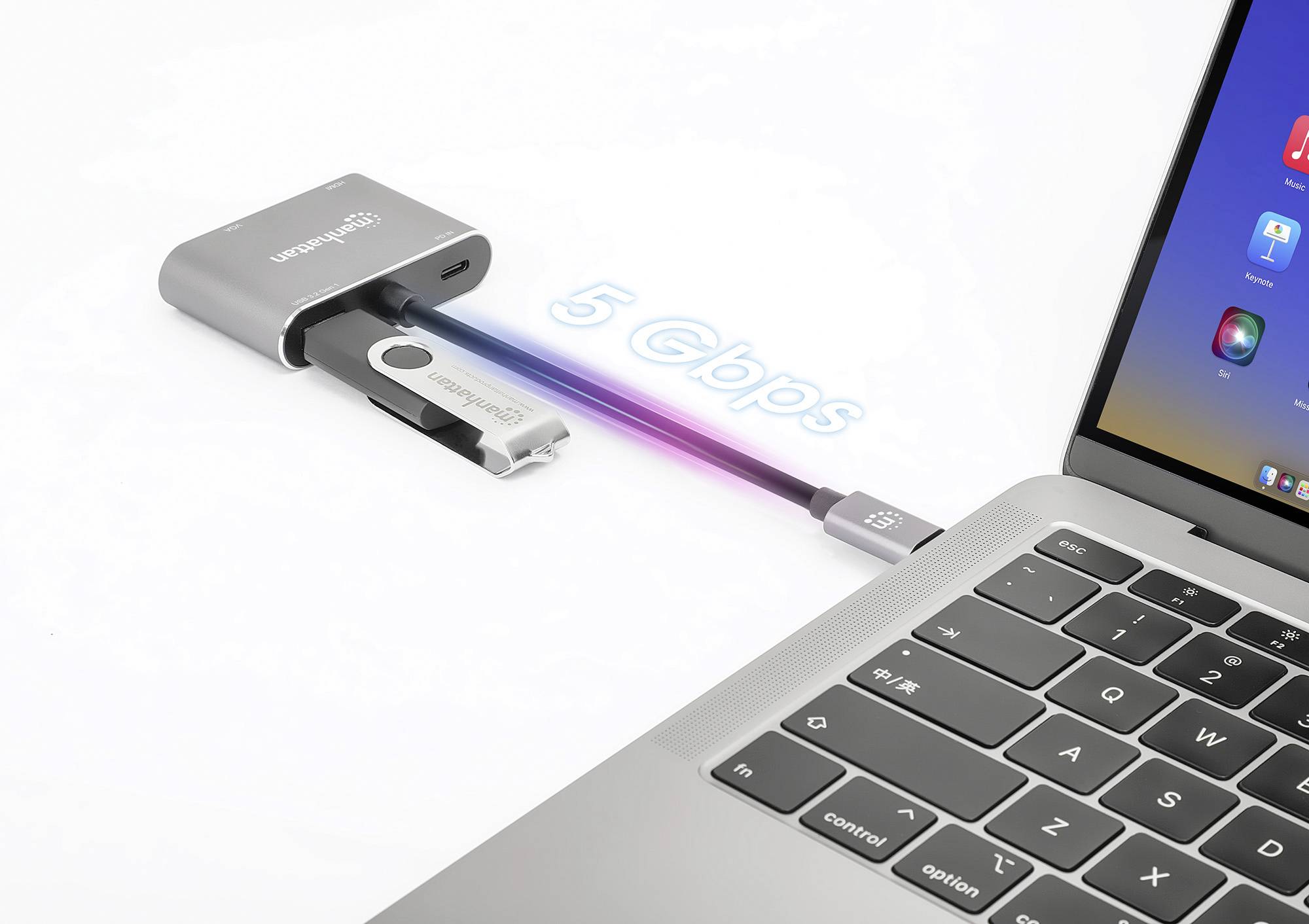

Transmission rate USB A port 5 Gbit/s max.
Power supply via USB (except charging functions)
USB-C® PD charging port: 87.0 W (20.0 V at 5.0 A) max.
USB-A charging function, 5 W (5.0 V at 1.0 A) max.

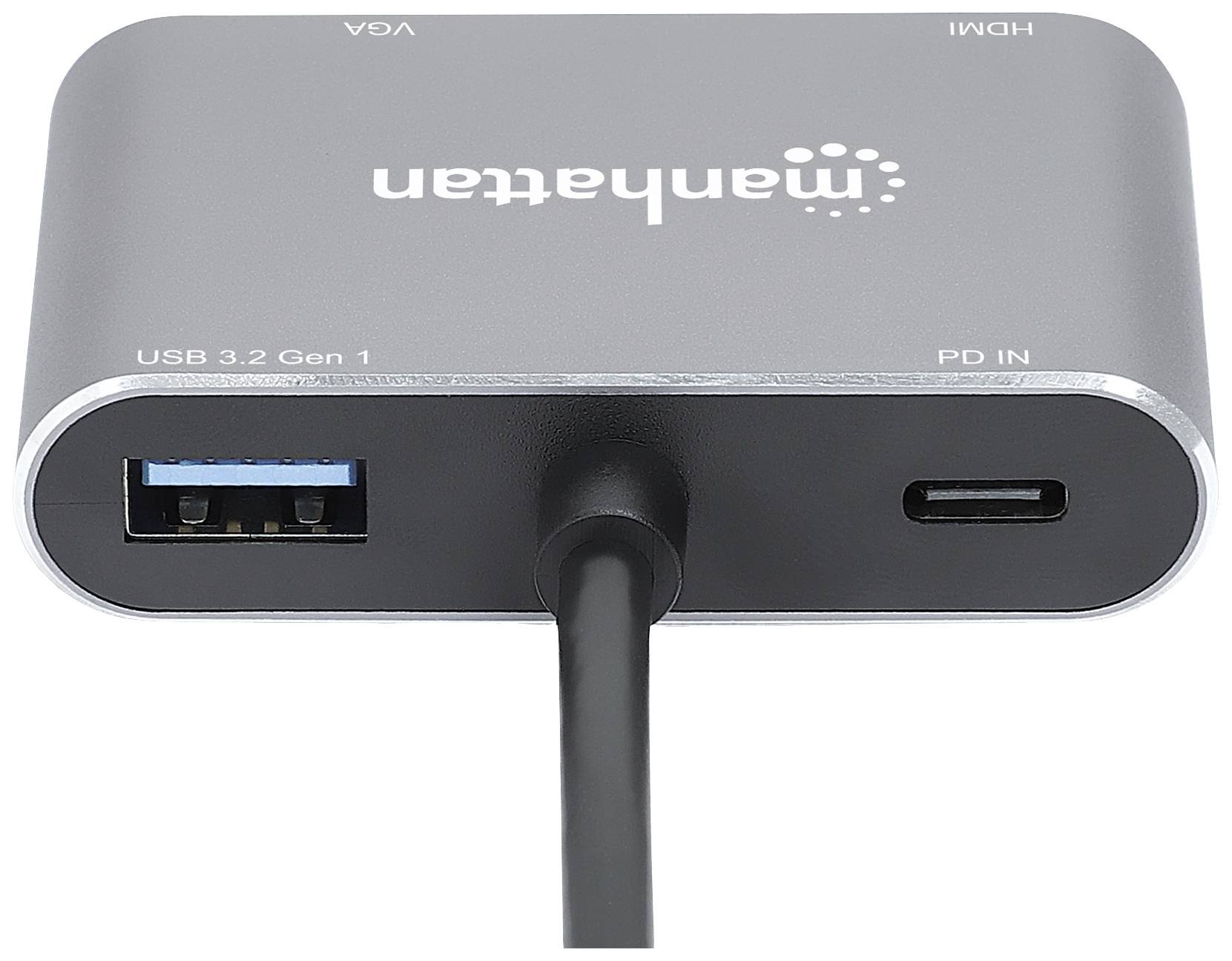

Connectivity
1 x 24-pin USB-C® connector
1 x 24-pin USB-C® socket
1 x 4-pin USB-A socket
1 x 19-pin HDMI socket
Physical details
Dimensions (L x W x H) 62 x 40 x 15 mm
Net weight: 42 g
Gross weight 63 g
Cable length: 15 cm
Cable diameter AWG 34
Aluminium enclosure
Work environment
Ambient temperature during operation: 0 - 45°C.
Ambient temperature during storage -10 - 70°C.
Humidity (non-condensing): 5 - 90% RH
Windows 7/8.1/10/11
Chrome OS
MacOS
IPadO
Android
Manhattan, 130691, USB-C to HDMI & VGA 4-in-1 Docking-Konverter
