Endress+Hauser RIA15-AAC1 RIA15 N/A 1 pc(s)

  • item model number: C685482
A digital indicator from Endress+Hauser displays the value '91.139'. The device has a display and control buttons on the front panel.

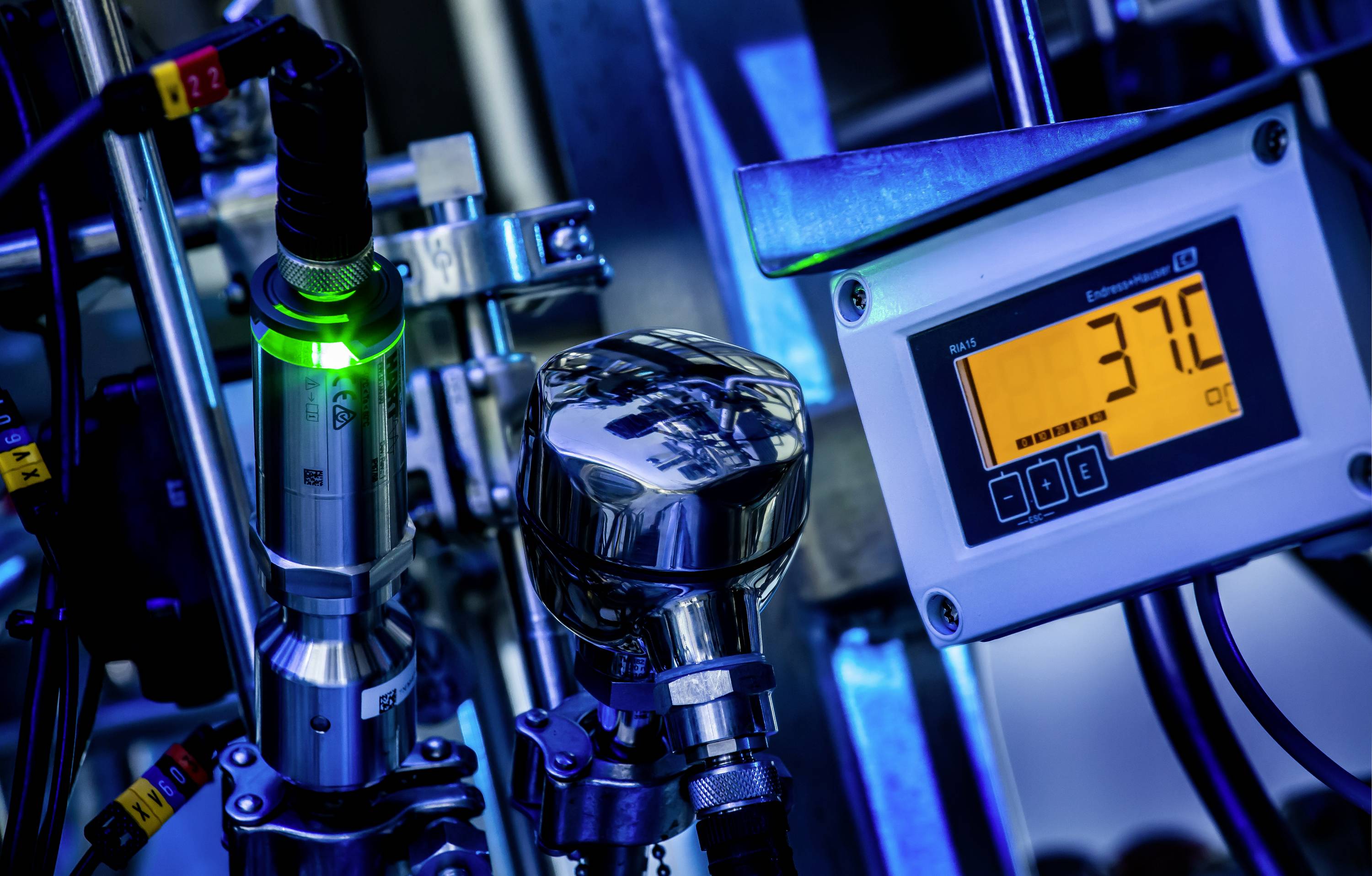

Industrial scene with metal pipes and a display showing '37.0'. Temperature reading in a technical process.
CHF 291.10
VAT included
plus
Delivery time: 3-4 days
in stock
30 days free return shipment
Endress+Hauser RIA15-AAC1 RIA15 N/A 1 pc(s)
CHF 291.10
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : CHF 288.18 1,0 % savings
from 5 piece : CHF 285.27 2,0 % savings
from 10 piece : CHF 282.36 3,0 % savings

Product description

Overview

Material housing: Plastic
LCD display 17 mm
Input type: Analogue input 4-20 mA
Field casing version
Approval: Non-explosive area
Housing: Plastic field housing

Description

The loop-fed RIA15 process indicator displays 4 to 20 mA measured values or optionally up to four HART® process variables of a sensor in all sectors. The RIA15 has a 5 digit measuring value display with 17 mm digit height with dimension, bar graph and switchable background lighting and can be used as an on-site display in the control panel installation housing or in the field housing.

Characteristics

Simple configuration and parameter assignment on site with 3 buttons on front
No external power supply required, the device is supplied directly from the current loop
Perfect solution for measurement points that are difficult to access, especially in case of long wiring distances/ voltage drop 1V
Queries and displays up to 4 different measured values in an ongoing process (via HART protocol)

Keywords

Endress+Hauser, RIA15-AAC1, RIA15, meter accessories, meter replacement, meter spare part

A digital indicator from Endress+Hauser displays the value '91.139'. The device has a display and control buttons on the front panel.
Industrial scene with metal pipes and a display showing '37.0'. Temperature reading in a technical process.
