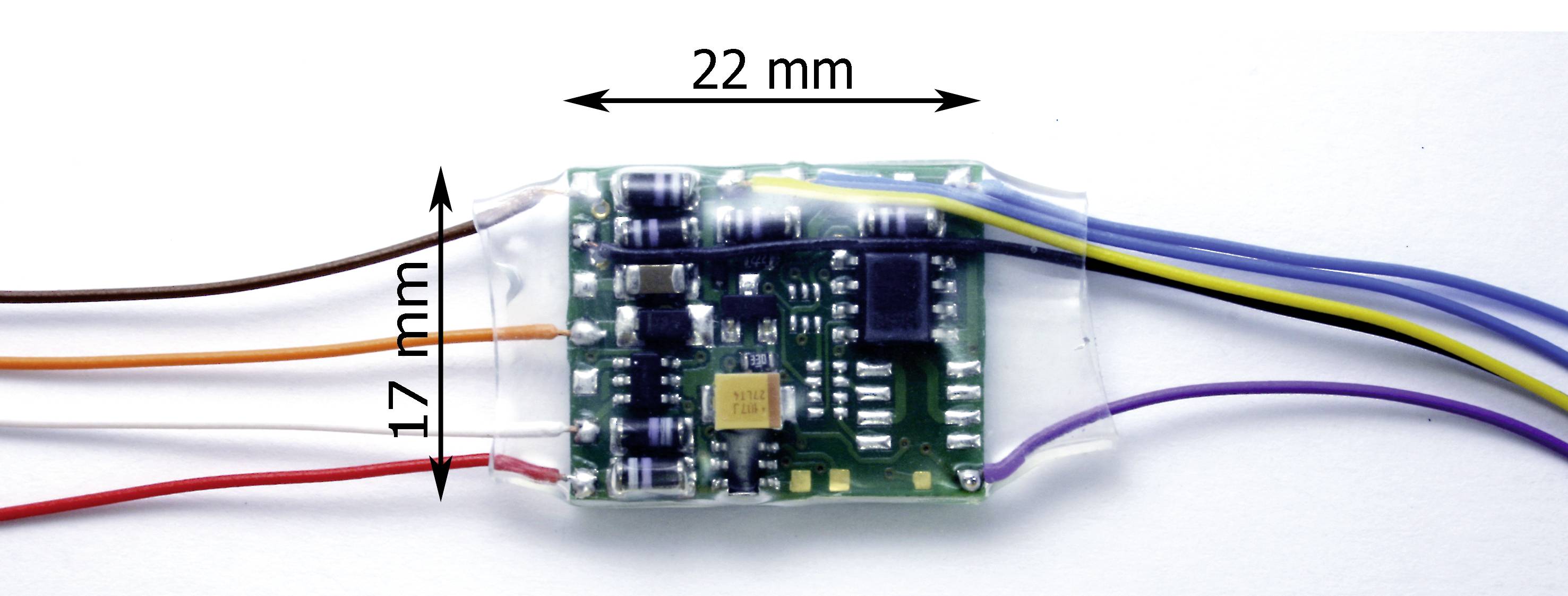

TAMS Elektronik 43-02316-01 WD-31 Point decoder Module

Description

For switching of a magnetic article or light main signal like switch and semaphore signal with double-coil drive, uncoupling or 2-term light-main signal with cross-fading. Additional output for an additional consumer can be switched either via its own address or together with the magnetic article or the light main signal. Control via switch position commands in the DCC or Motorola format with automatic format recognition. Programming with a DCC central unit via DCC configuration variables (CVS) or programming key (address only). Note: The button is not included.

Characteristics

Two outputs for connection of a magnetic item or light-skin signal. Maximum current per output: 1,500 mA (up to 2 s) | 800 mA (duration)
One output for any consumer (e.g. switch point light). Maximum current 300 mA
Electrically insulated with heat-shrink tubing
With soldered cables for the connections to the track, the switch or the main signal, the additional load and the programming button
Data formats: Motorola-I and –II, DCC (DCC/14, DCC/28, DCC/128, DCC/SDF corresponding to NMRA and RCN standard)
Number of Addresses: DCC-Format: 1 - 2040 | Motorola-Format: 1 - 1020

Delivery content

• WD-31 point decoder
• Double-sided adhesive pad (approx. 30 x 15 mm)
• User manual.
