Digitus DS-55507 HDMI / RJ45 Adapter [1x HDMI socket - 1x HDMI socket] Black 4K UHD

Overview

Extends the maximum HDMI cable length to up to 150 m using a simple network cable
Extension of the signal (unlimited distance) via the existing local network infrastructure or by means of commercially available network switches (IP-connection)
Supports Full-HD video resolutions (1920x1200/60 Hz, 4:4:4)

Description

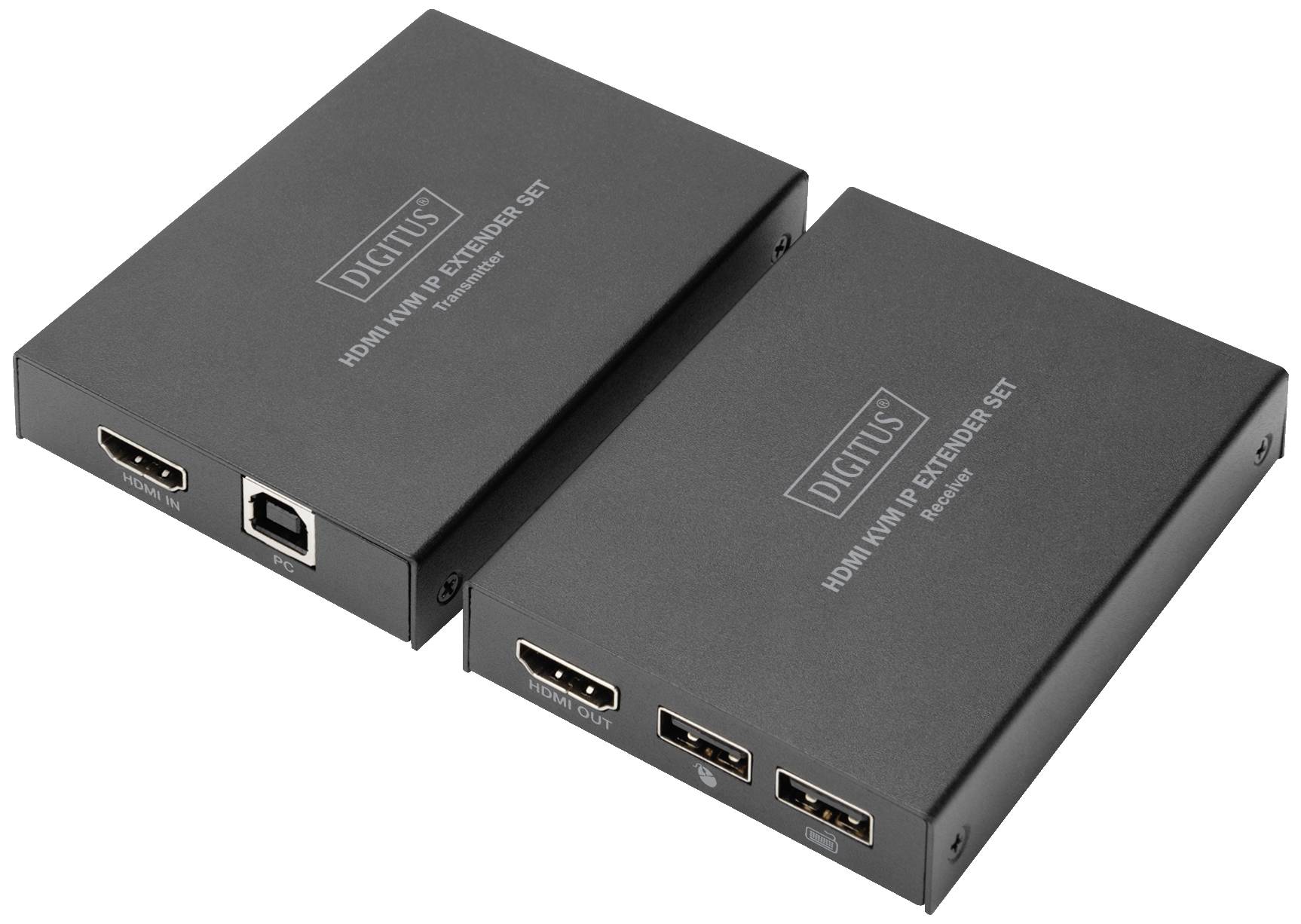

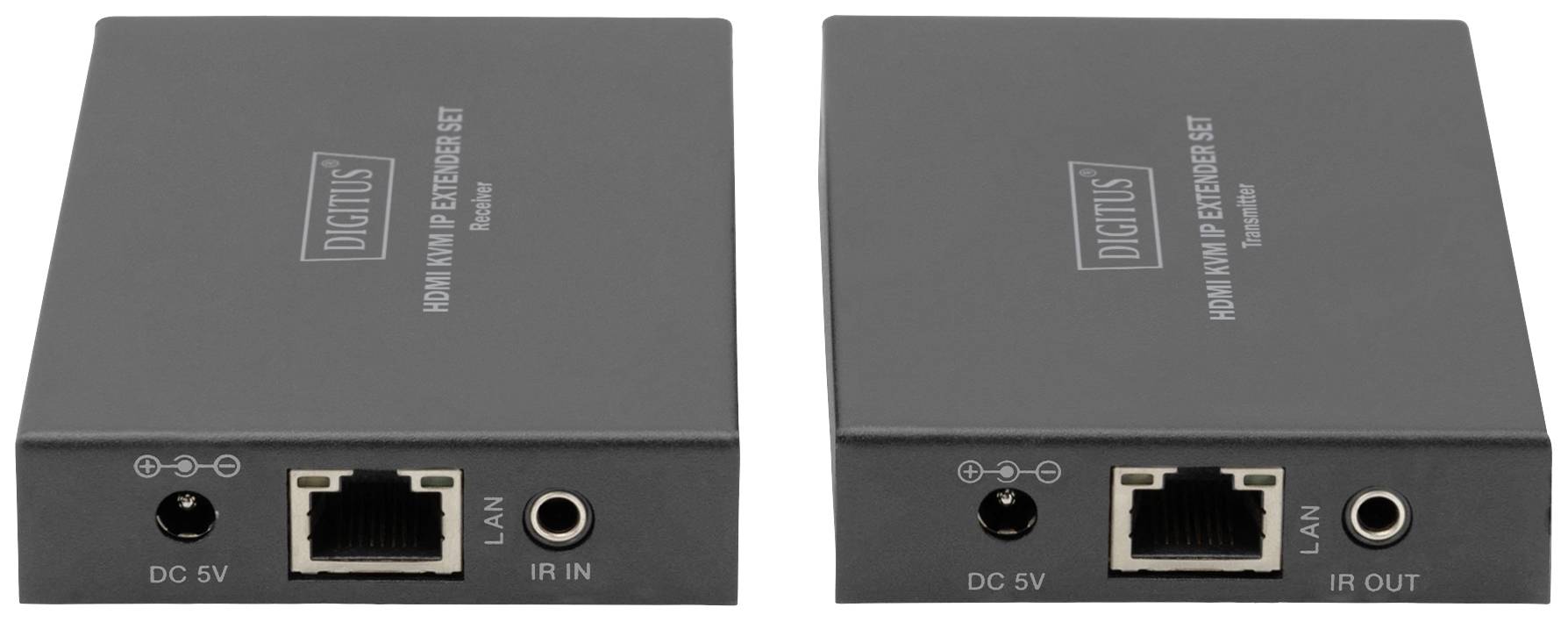

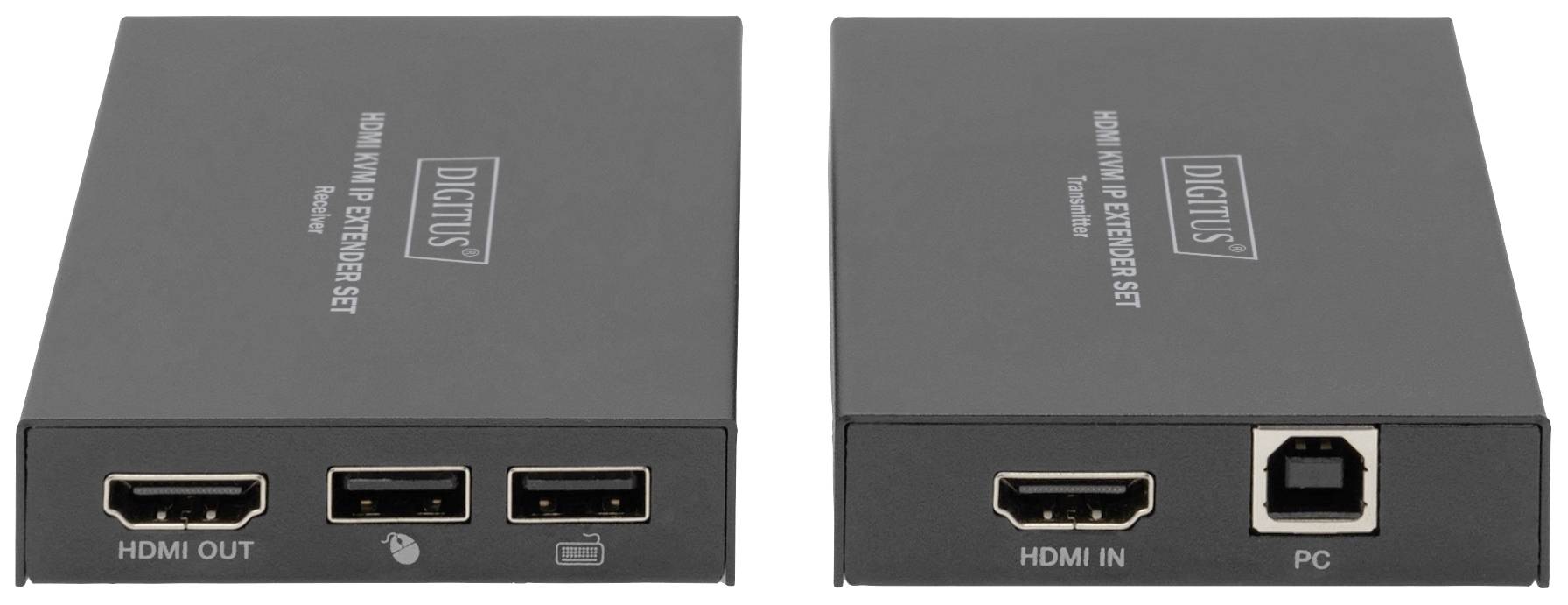

The HDMI KVM IP Extender Set comprises of a transmission unit (local location) as well as a receiver unit (remote location). The HDMI signal can be extended to a maximum distance of 150 m via a network cable (CAT 5e or higher) (point-to-point connection). The HDMI signal can also be extended to an unlimited distance over the existing network infrastructure or using standard IP network switches (IP connection). The highest supported video resolution is Full HD (1920x1200/60 Hz, 4:4:4). Similarly, it enables the comfortable access to a computer (mouse & keyboard) via the USB-ports on the receiver unit. It is perfect for industrial, commercial and public applications.

Characteristics

KVM functionality for connecting mouse and keyboard
Supports CAT 5e, 6, 6A, 7, 8 network cables
IR transmission
Compact design for simple and flexible installation
Robust metal casing

Delivery content

• 1x transmitter unit
• 1x receiver unit
• 1x IR transmitter cable (1.5 m)
• 1x IR receiver cable (1.5 m)
• 2x power supply (DC 12V/1A, 1.15 m)
• 1x USB B-A cable (1.5 m)
• 1x user manual

Keywords

Digitus, DS-55507, monitor adapter, screem adapter, tv adapter
