Overview
Supports HDBaseT™ 1.0 via CAT6A/7/8 cables up to 100m
Transmission distance - Full HD (1080p/60Hz): 150 m (max.)
Transmission distance - UHD (4K/60Hz): 120 m (max.)
Digitus DS-55526 HDMI® input, RJ45, Infrared, USB A (USB 2.0) via RJ45 network cable 150 m
CHF 304.30
VAT included
plus
Delivery time:
3-4 days
in stock
30 days free return shipment
CHF 304.30
VAT included
plus
Product description
Description

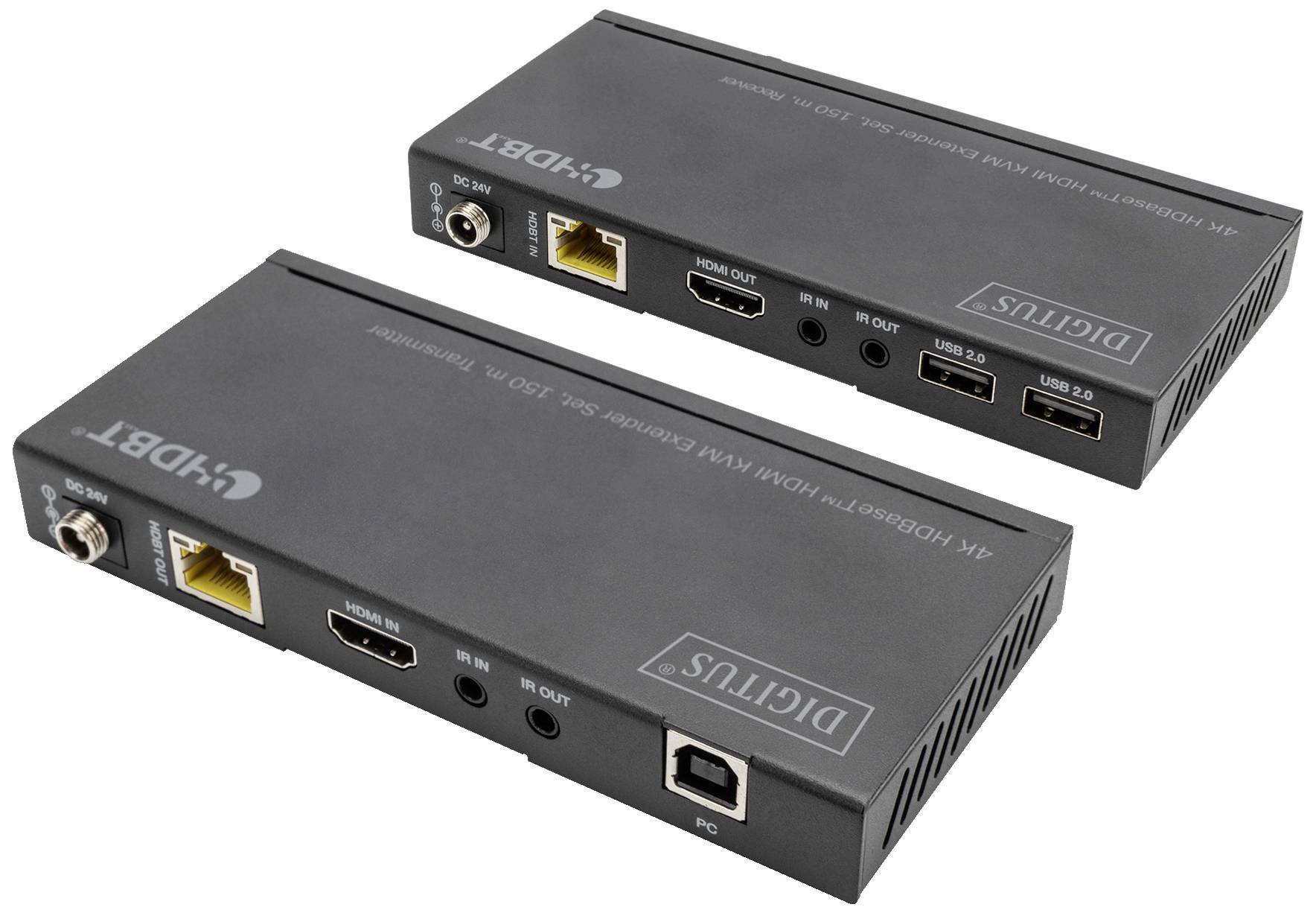

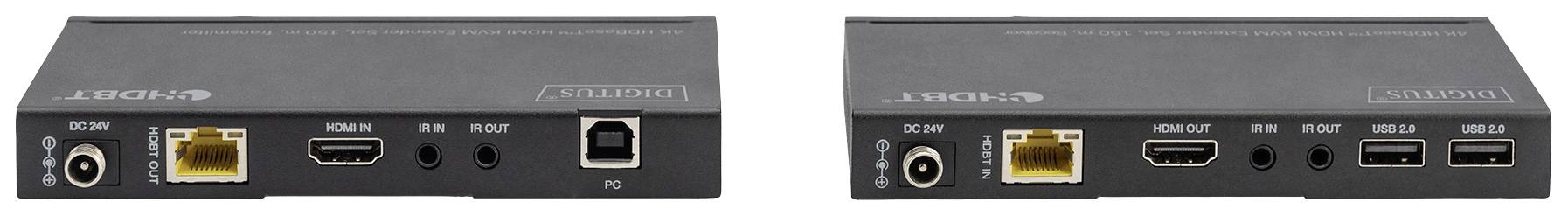

The HDBaseT™ HDMI KVM Extender Set enables uncompressed, high-resolution AV signal transmission over long distances over a CAT6 (or higher) network cable. The maximum transmission distance is 150 m. Thanks to PoC, only one unit with an external power supply unit needs to be supplied with power. The receiver unit has two USB 2.0 ports for the connection of, for example Webcam, data carrier as well as mouse & keyboard. Touch displays are also supported, thanks to the back control of the touch panel, the signal source can also be controlled by finger gestures. Bi-directional IR transmission is also included.
Characteristics
Supports 4K2K/60Hz (4:4:4)
Video bandwidth 18 Gbps
2x USB 2.0 connections at the receiver for connection of for example Webcam, data carrier, touch panel as well as mouse & keyboard.
Touchpanel support/touch panel back control
PoC (Power over Cable) - only one unit requires an external power supply

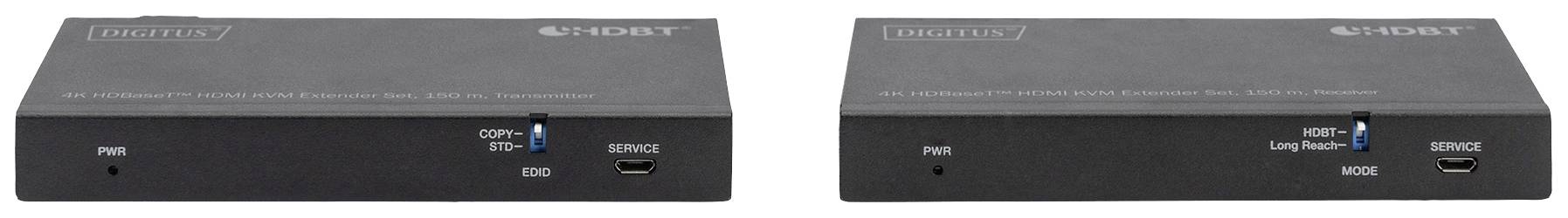

EDID support (2 modes) - 1: Copy - HDMI output receiver / 2: Standard - 1080p, 2 channel
Bi-directional IR signal transmission

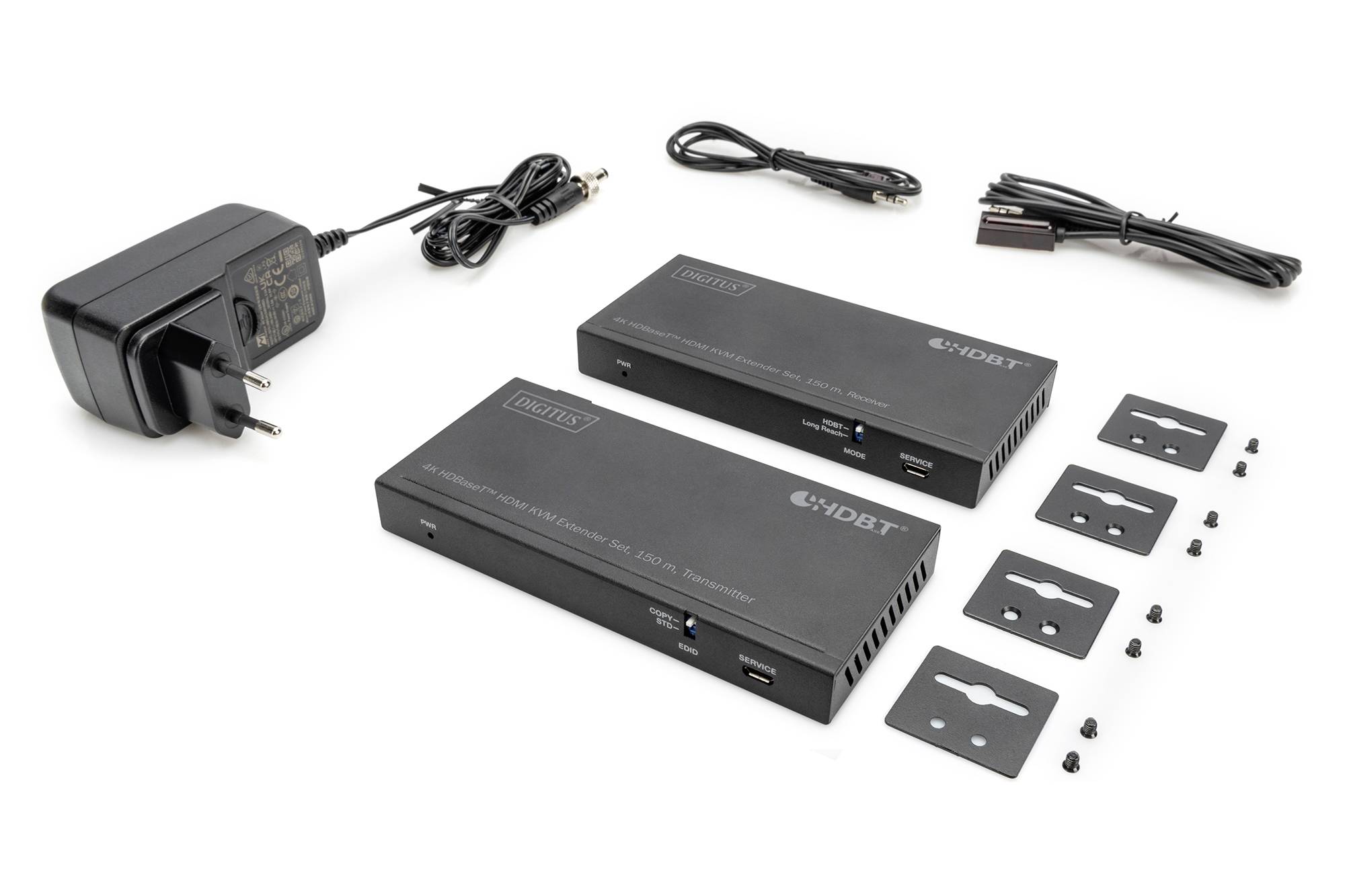

Delivery content
- 1x transmitter unit
- 1x receiver unit
- 1x IR transmitter cable (1.5 m)
- 1x IR receiver cable (1.5 m)
- 1x power supply (DC 24V/1A, 1.15 m)
- 1x USB connection cable (1.5 m)
- 1x installation material
- 1x user manual
