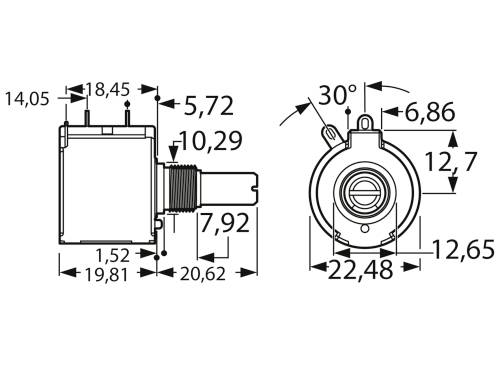

Bourns 3549S-1AA-103A Wire-wound pot 2 W 10 kΩ

Overview

10 kΩ
linear

Description

Precision turning potentiometer in 10 turn design Type Bourns 3549. With 6.34 mm axis; linearity: ±0.2 %, load capacity: 2.0 W, rotation angle electrical/mechanical: 3600°, operating temperature: 40 up to +125 °C, protection class: IP 50. As wire wound potentiometer type 3549S. Tolerance: ±3.0 %, temperature coefficient: ±50 ppm/°C, life span: 2.0 MIO. Revolutions. Type 10K

Delivery content

• 3549S-1AA-103A.

Keywords

Bourns, 3549S-1AA-103A, variable resistor
