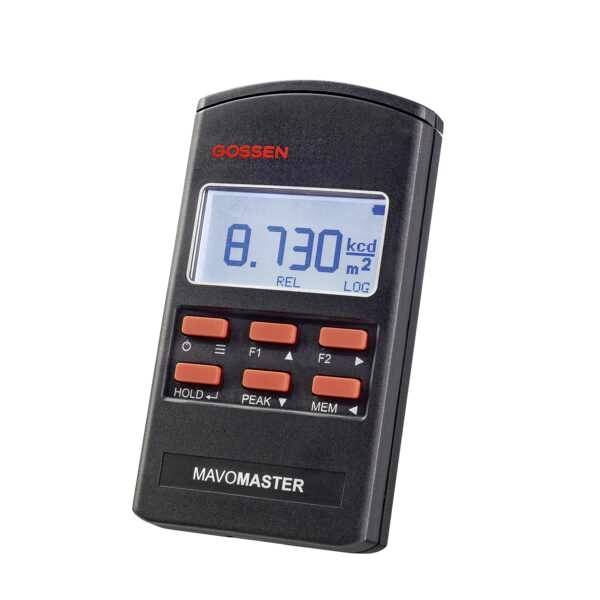

Gossen Photo M525V MAVOMASTER Lux meter

Overview

Raster measurement for the evaluation of work places and interior lighting
Extensive measurement functions, relative, integral, deviation, ratio measurement
Acquisition of minimum value, maximum value and average value calculation
Data logger with adjustable log interval
Large 4 GB measurement memory, readable via USB, like an external drive on the PC
Continuous operation via USB with power bank, plug-in power supply or at your PC
EXCEL macros for logging and data logging

Description

The integrated measurement functions evaluate the measurement results and provide evaluation on site with storage possibility in CSV format. They can be assigned to the two function keys F1 and F2 as required and consist of a data logger, a relative measurement, a grid measurement for the evaluation of workplace lighting with calculation of the Emin/EMAX/Eavg/U0/UD values, a ratio measurement B/A to the contrast measurement, a deviation measurement B-A, a deviation measurement %A and an integral measurement to determine the radiation dose. Measured values can be stored in the CSV format in 4 GB memory and be read via the USB interface.

Delivery content

• MAVOMASTER
• 1.5V AA alkali-manganese battery (IEC LR 6)
• USB 2.0 cable connector A to Micro B connector, length 1.0 m
• EXCEL evaluation/data logger (download)
• Operating instructions GB/GB

Keywords

Gossen Photo, M525V, MAVOMASTER, lux meter, lux meters, light intensity meter
