Joy-it PIEnergy Mini Raspberry Pi® add-on PCB

  • item model number: V513603
A Raspberry Pi heat sink module on a circuit board, with a black heatsink on top, contributes to temperature regulation.

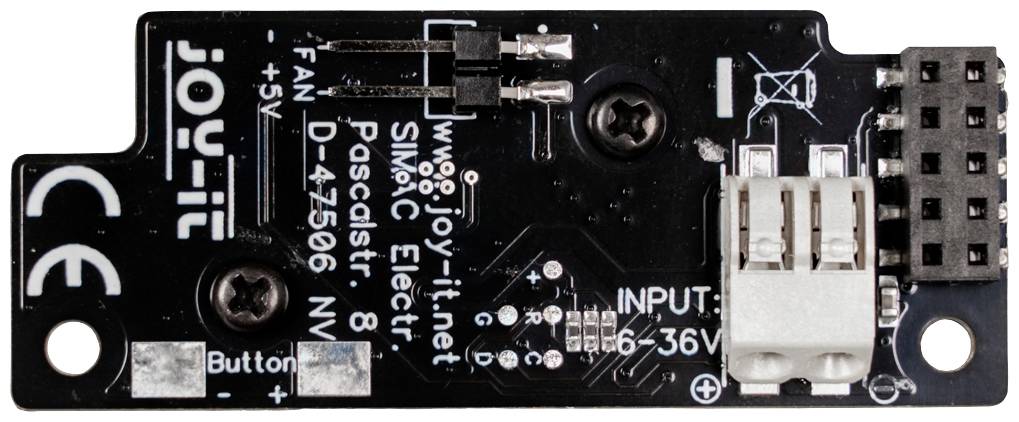

'Joy-it' electronic circuit board with connectors and switch. Black board with white labelling, including link to manufacturer's website.

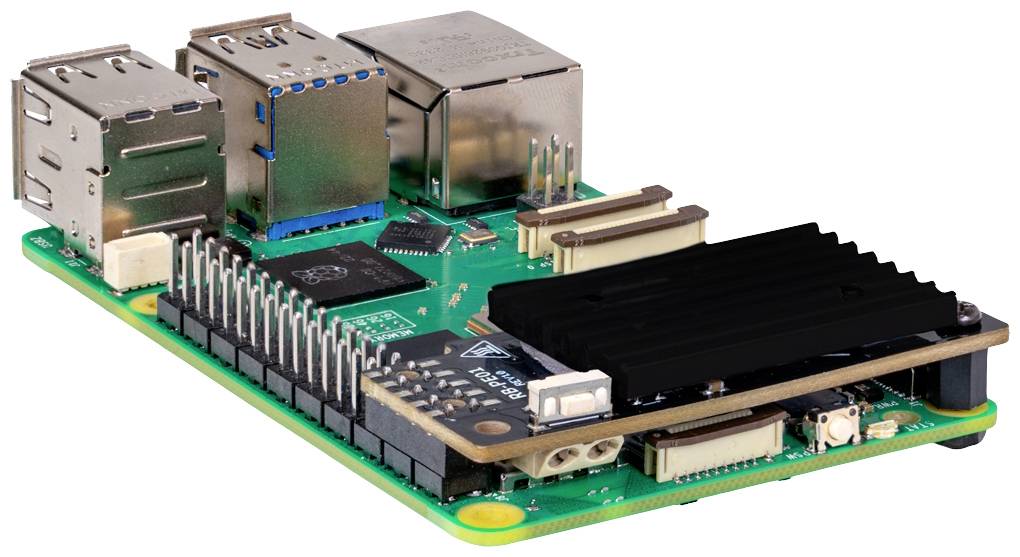

A single-board computer with multiple USB ports and a heatsink mounted on a green circuit board. Ideal for DIY tech projects.
CHF 11.25
VAT included
plus
Delivery time: 3-4 days
in stock
30 days free return shipment
Joy-it PIEnergy Mini Raspberry Pi® add-on PCB
CHF 11.25
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : CHF 11.13 1,1 % savings
from 5 piece : CHF 11.02 2,0 % savings
from 10 piece : CHF 10.91 3,0 % savings

Product description

Overview

Inwide power supply 6-36V
Output voltage 5.1V / output current up to 3A
Compatible with all PI3, PI4 and PI5 variants
5V Fan-connection (2Pin / 2.54mm)
Solder pads for external on/off switch
Ultra-slim design

Description

With the PiEnergy mini, you can operate your Raspberry Pi with a voltage of 6 to 36 V DC. The board comes with a built-in button that allows you to boot or shutdown your Raspberry Pi. Communication with the Raspberry Pi runs on GPIO4, but this connection can also be parsed by removing a resistor in order to freely use the pin. With the ultra flat design, it can also be used with many housings. The pin strip is enclosed and not soldered to hold the construction even flatter.

Keywords

Joy-it, RB-PE01, PIEnergy Mini, arduino, raspberry pi, raspberry

A Raspberry Pi heat sink module on a circuit board, with a black heatsink on top, contributes to temperature regulation.
'Joy-it' electronic circuit board with connectors and switch. Black board with white labelling, including link to manufacturer's website.
A single-board computer with multiple USB ports and a heatsink mounted on a green circuit board. Ideal for DIY tech projects.
