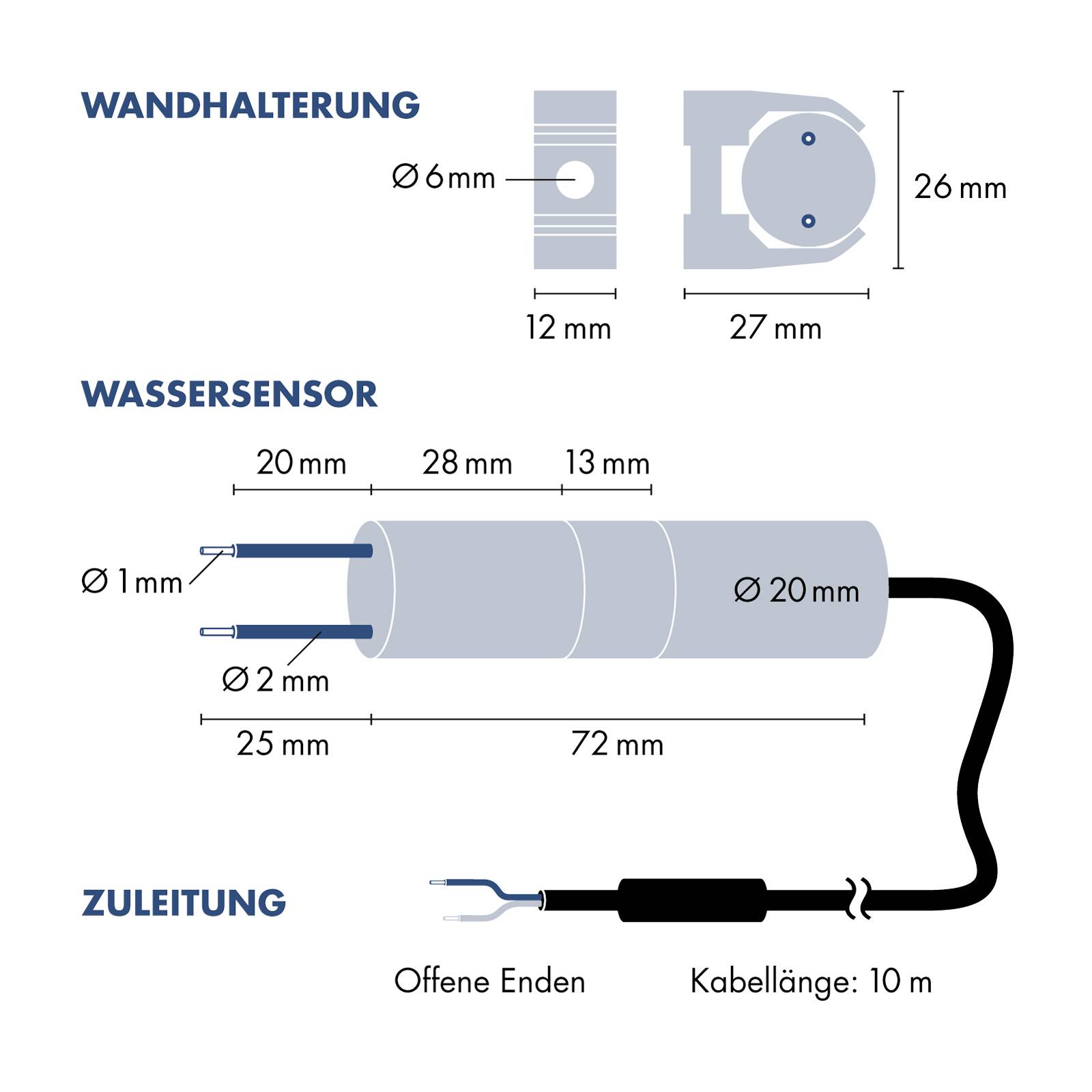

H-Tronic 1114446 WS 10-2 Water level sensor 10 m

Overview

Water sensor WS 10-2 for WPS 1000 V2
Length 10 meters

Description

The water sensor WS 10-2 is suitable in connection with the H-Tronic water level switch WPS 1000 for automatic level monitoring of conductive liquids in containers, wells, basements and similar applications. The measuring tips of the sensor are cast in a plastic casing. This sensor with a 10 meter long PVC connection cable is only intended for detecting liquids in non-aggressive media.

Characteristics

Design: Sensor cast in plastic (for conducting liquids)
Special features: The measuring electrodes are resistant to chlorine and salt water (stainless steel AISI 316 / V4A)
Connection: Approx. 10 m PVC cable with open cable ends

Information

H-Tronic water level switches and water sensors work in conjunction with conductive liquids.
Water is not the same as water, depending on the salts dissolved in it or Ions, water can be more or less conductive. An adequate conductivity of the liquid to be measured is important for the proper functioning of the water sensors.
Tap water, salt water or contaminated water are good conductive liquids. Osmosis water, distilled water or pure rain water are poorly conductive liquids and may therefore not be suitable for water sensors.
Especially in the case of rain water, the function of the water sensor may be alternating, since the conductivity of rain water is subject to strong fluctuations due to environmental influences.
If you want to use a water level switch for poorly conductive liquids, we recommend that you use a mechanical float switch from our assortment instead of a water sensor.

Delivery content

• Water sensor WS 10-2 (10 m)

Keywords

H-Tronic, 1114446, WS 10-2
