Tamiya 1:10 RC model car Electric Road version 4WD Kit

Description

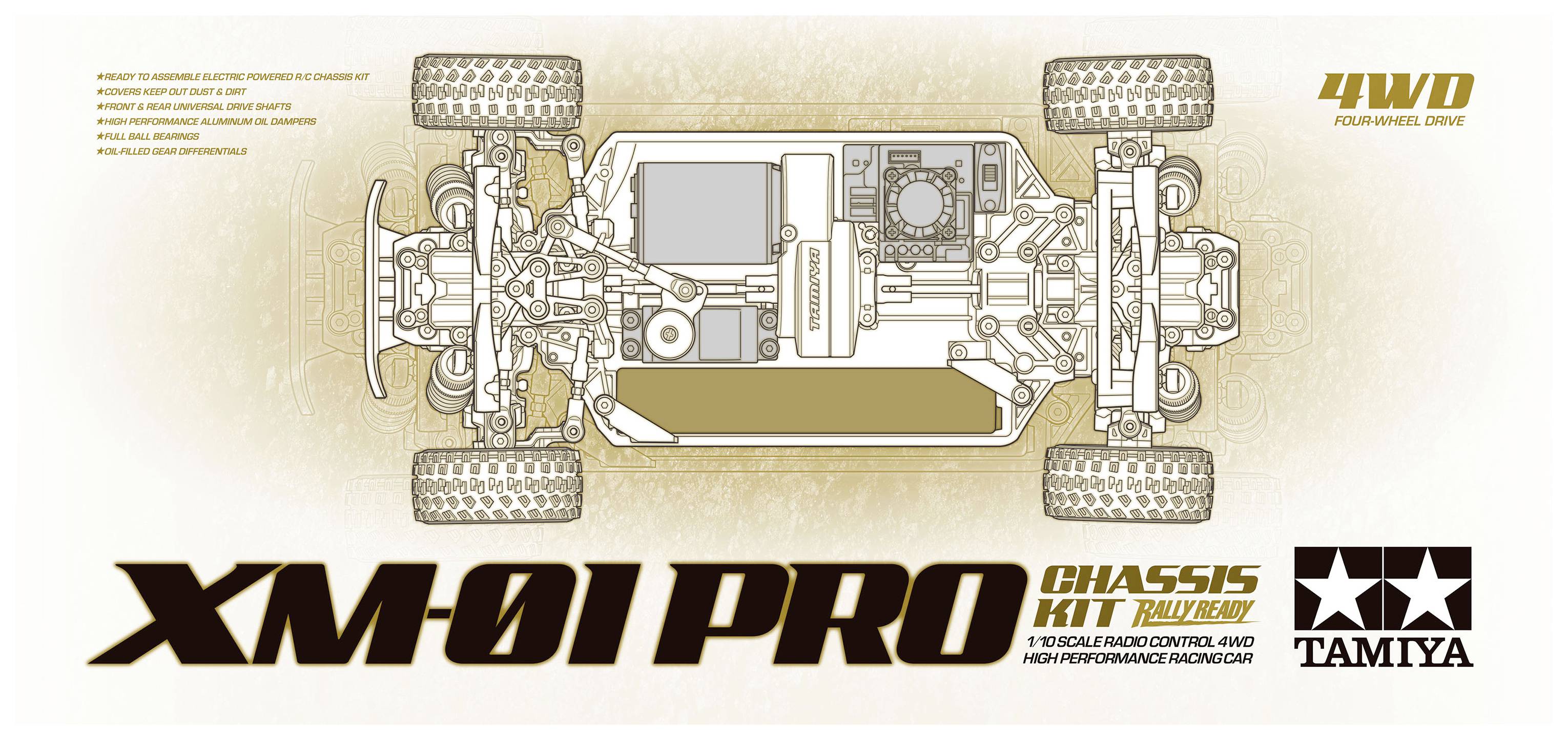

The XM-01 Pro chassis is a tuning chassis for all M-Chassis. The chassis possess numerous tuning parts from the house and is based on its big brother XV-02.
The model can be built in 3 different wheel stands: 210mm (short), 225mm (medium), 239mm (long) and can thus be adapted to different M-Chassis.
The chassis has a tub frame and a polycarbonate chassis cover. Additional mud guards prevent serious dirt from entering rally cars.
The all wheel drive can be tuned using different differential gears. 1:1 Transmission with the 39-series front and rear gears or a 40-series gear for more drive at the rear axle or front axle.

Characteristics

Kit model in the scale of 1/10
XM-01 chassis with 4WD drive
Centrally installed motor, along the direction of travel
By changing the rear housing in 3 different wheel stands, it can be built: 210mm (short), 225mm (medium), 239mm (long)
Pan frame chassis and polycarbonate tub-cover and mud guards prevent the penetration of coarse dirt during rally drives
C hubs and rear axle beams allow construction in 2 different vehicle heights/ground clearance (8mm and 13mm).
Follow-up can be set to 5 degrees
Oil-filled differentials
Two 39 teeth diff and a 40 teeth diff for the adjustment of the drive balance (front/rear drive balance)
Front bumper
Aluminium oil-pressure shock absorbers front and rear
M-chassis 11-spokes racing rims (51394) and 60D rally Block tires (51427)
Universal cardan shaft front and rear
Slipper optional
Compatible with numerous tuning parts of the Tamiya XV-02 chassis

Delivery content

• 4WD kit model
• XM-01 Chassis
• 3-different wheel bases can be built
• Chassis-Cover
• Numerous tuning parts
• Inclusive of instructions

Requirements

Required accessories: Remote control with receiver, steering servo, 7.2V NiMH battery pack, motor, M-chassis body, Charger, color for polycarbonate body (Tamiya PS-)

Keywords

Tamiya, 58738-000
