Deko Light 843340 Dimmer receiver 1 pc(s)

Overview

Brightness can be dimmed
Compatible with DALI1 and DALI2 (1 channel)
Push dim function via button (8 - 230V AC)
Minimum adjustable brightness (only push function)
Output 400 W

Description

The DALI Triac dimmer allows precise adjustment of the brightness of dimmable lights. Compatible with DALI1 and DALI2 as well as with a push-dim function via switch (8-230V AC), it offers a flexible solution for different application areas. With the option of adjusting the minimum brightness (push function only) and a small size, it is ideally suited for the DALI-extension or for the conversion of triac dimmable lamps. Power is up to 200W/230V for LED (C-load) or 400W / 230V for halogen (R-load) without limit on the number of bulbs.

Characteristics

Dimmable LED lights and power supplies: Power LED (C-load) 200W/230V/max. 10x LM or ballasts or halogen (R-load) 400W/230V not limit the number of bulbs. Push-Dim (8-230 V/AC) maximum cable length 80 m.
Adjustable minimum brightness (push-dim only)
1/DALI1/DALI2, DT6, 2 CHANNELS
Power consumption on the Dali-Bus: Max. 2 mA

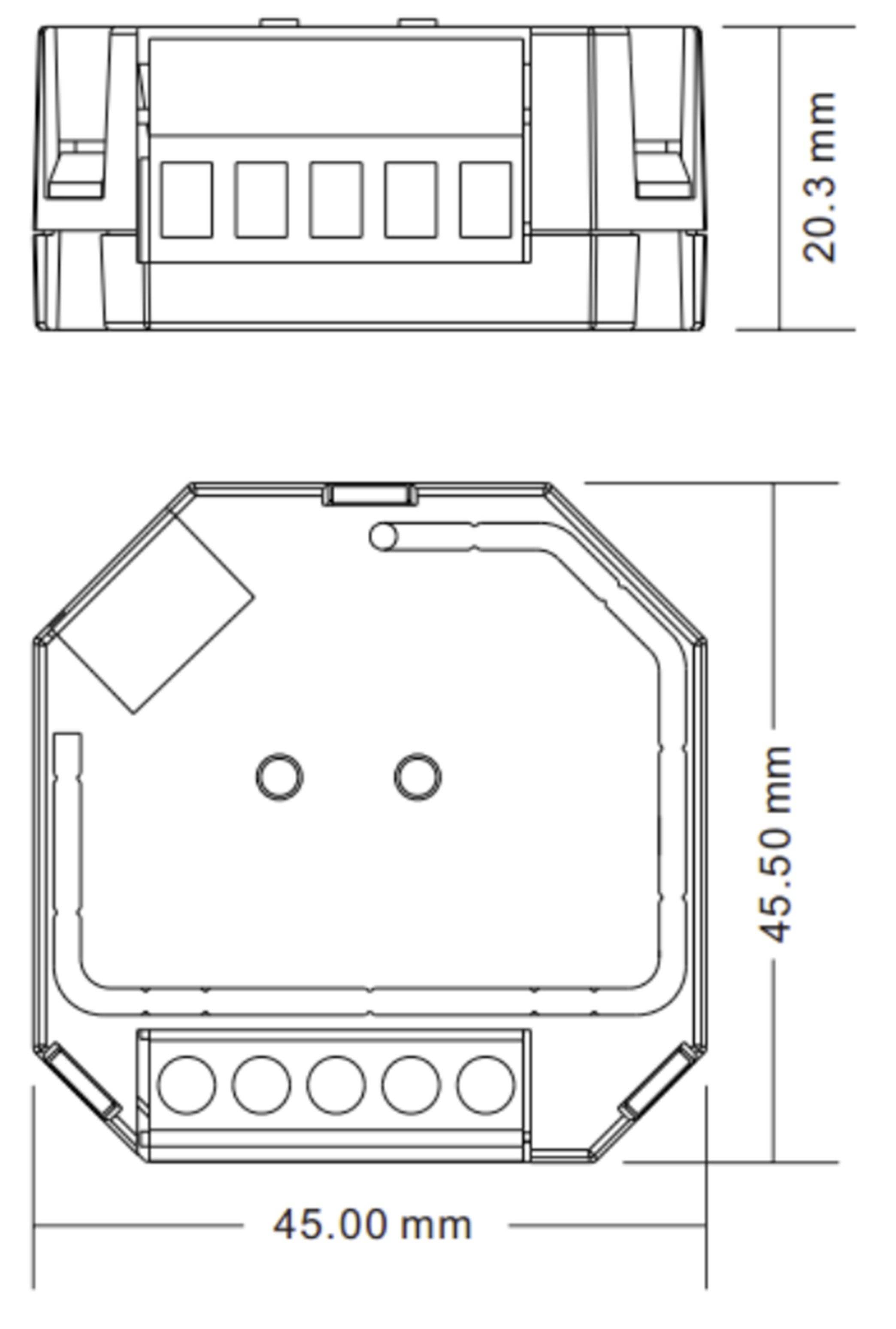

Due to small size, ideal for DALI expansion/conversion or Installed in/from triac dimmable lights

Delivery content

• Dimmer
• User manual.

Keywords

Deko Light, 843340, DALI, Triac-Dimmer, 100-240V, 400W
