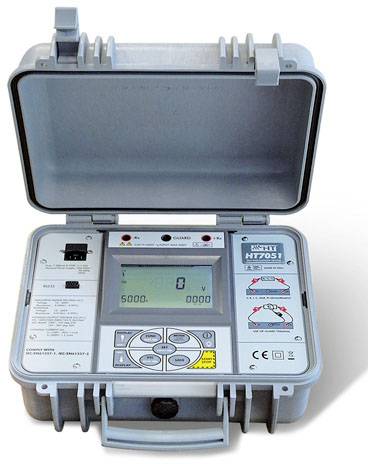

HT Instruments HT7051 Insulation tester

Overview

Insulation test with test voltages from 100 V to 5 kV DC
Resistance measurement range up to 10 TΩ
Measurements with permanently selectable test voltages in 25 V steps
Up to 3 voltage/time ramps can be retrieved from program
Smooth function for stabilizing the measurement results
Dielectric discharge
Polarization Index (P.I.)
Dielectric Absorption Ratio (D.A.R.)
DC/AC TRMS voltage measurement up to 600 V.
Rechargeable internal NiMH battery
Guard connection for eliminating surface currents
Automatic object discharge after testing

Description

The HT7051 is a professional digital measuring device for measuring the insulation resistance with test voltages up to 5 kV DC. The insulation tester is suitable for a wide application in industrial electrical systems, such as for preventive maintenance and troubleshooting of motors, transformers and electrical cables etc. In programming mode, up to 3 different ramp functions can be selected in addition to the measurement duration. The HT7051 can also be used to determine the polarization index (PI) (loss of the insulation value due to external influences such as corrosion, dust, grease or moisture). Thanks to this control, the maintenance engineer can determine the future quality of the insulation in advance and plan accordingly for preventive action. The insulation tester has an internal memory to store the measured data and an interface for data transfer to the PC.

Delivery content

• Test lead set with test tip and alligator clips
• NiMH battery
• Power supply cable
• Bag for accessories
• PC software TOPVIEW
• Interface cable
• User manual
• ISO 9000 calibration certificate.
