Overview
Active/passive test for 1+3-phase devices, also for welding devices
For complete DGUV regulation 3 tests in combination with device testers
Load capacity up to 32 A.
1.264,42 €
VAT included
Free shipping
in stock
Delivery time:
2-3 days
1.264,42 €
VAT included
Free shipping
One article is not enough for you and you want to save money?
| from 3 piece: | 1.251,77 € | 1,0% savings |
| from 5 piece: | 1.239,13 € | 2,0% savings |
| from 10 piece: | 1.226,48 € | 3,0% savings |
-
Product description
Description

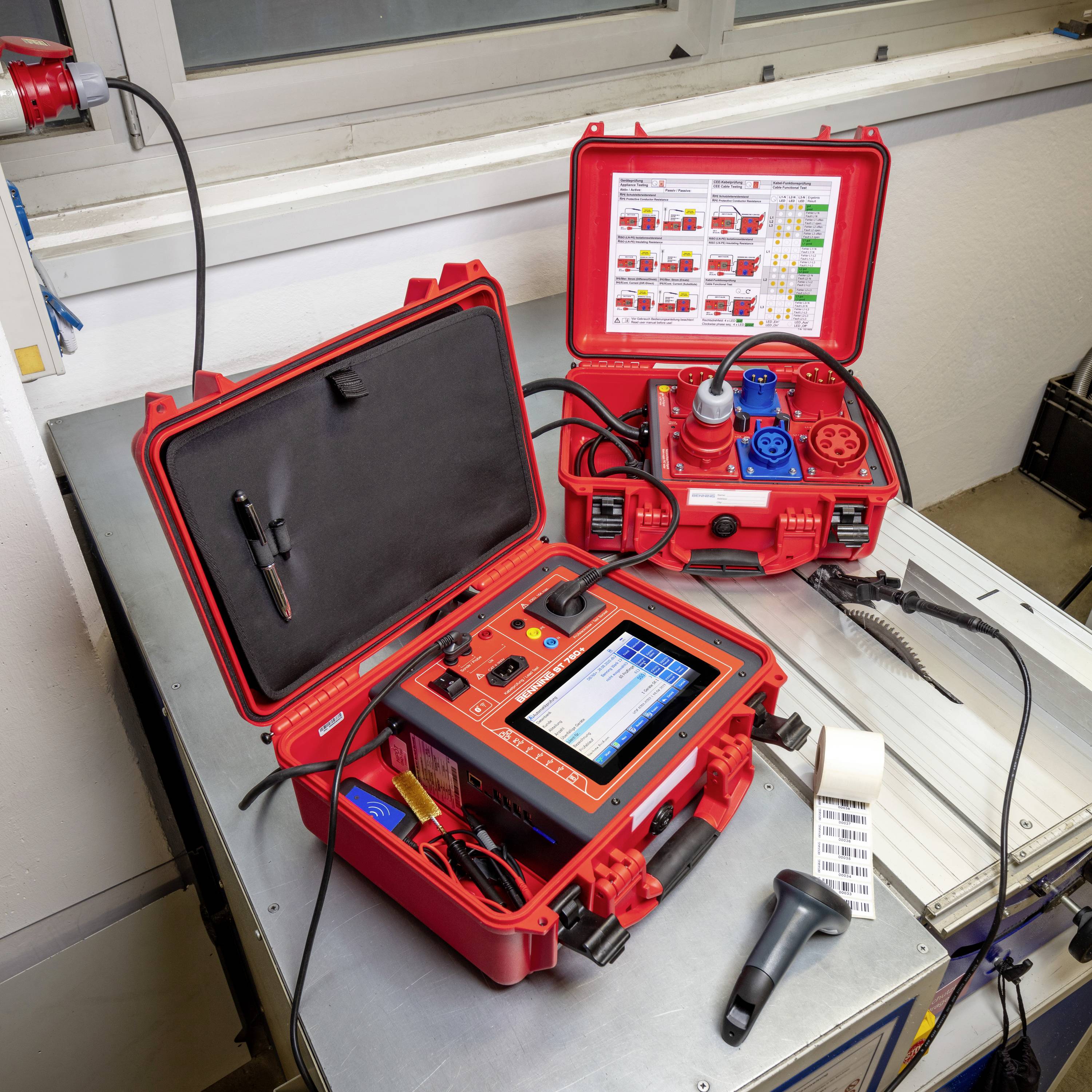

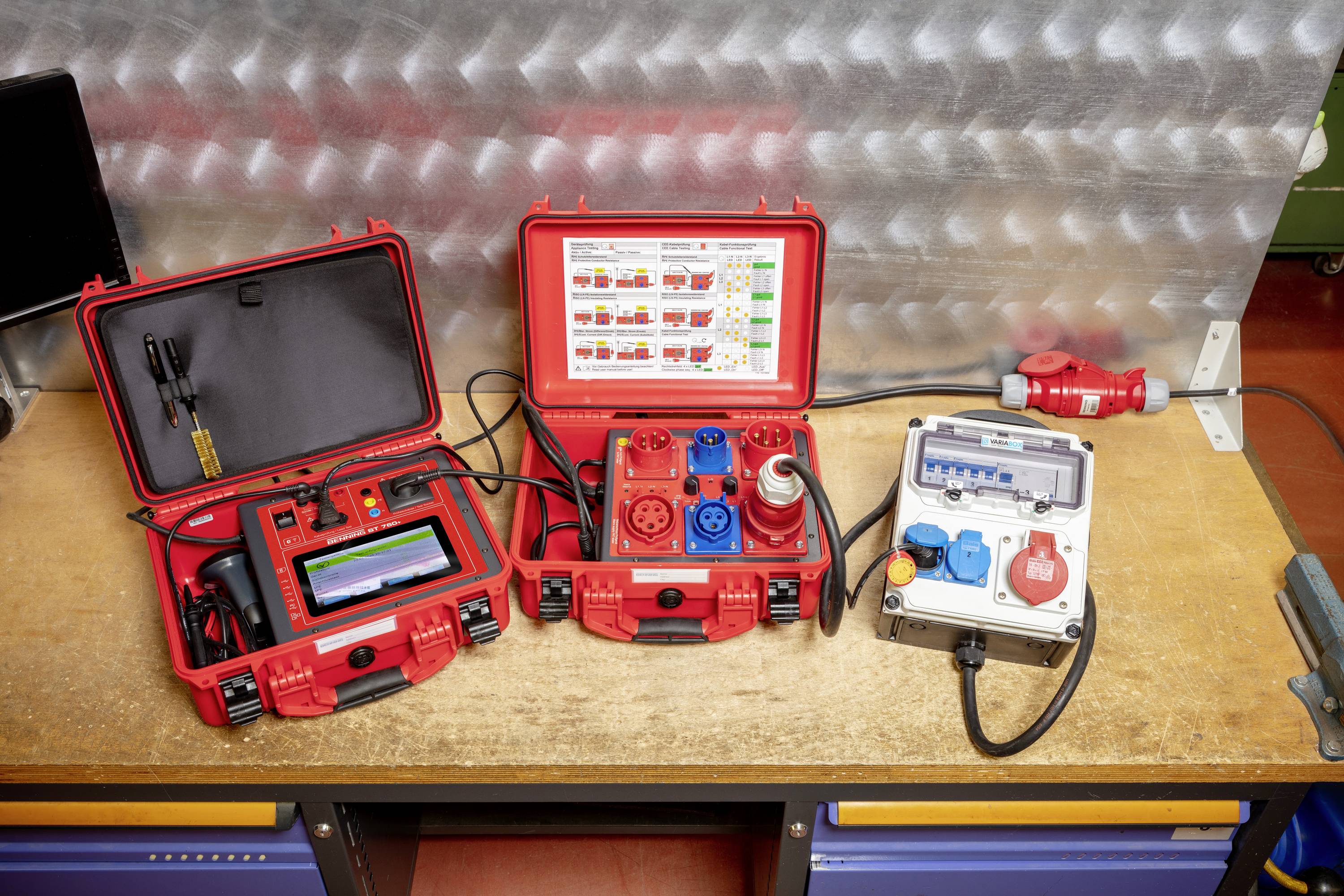

Adapter case for the active and passive testing of 1- and 3-phase CEE-accessories and CEE-extension lines in combination with device testers.
The measuring adapter makes it easier for you to check devices which change in location. Its rugged design is particularly suitable for use in industrial environments. Its simple handling allows the user to work quickly and rationally with the measuring adapter. You can test devices and extension cables that have the following IEC 60309-1-compliant connectors.
CEE-plug:
16 a, 50 Hz – 60 Hz, 230 V, L+N+PE, 6 h
16 a, 50 Hz – 60 Hz, 380 V – 415 V, 3L+N+PE, 6h
32 a, 50 Hz – 60 Hz, 380 V – 415 V, 3L+N+PE; 6h

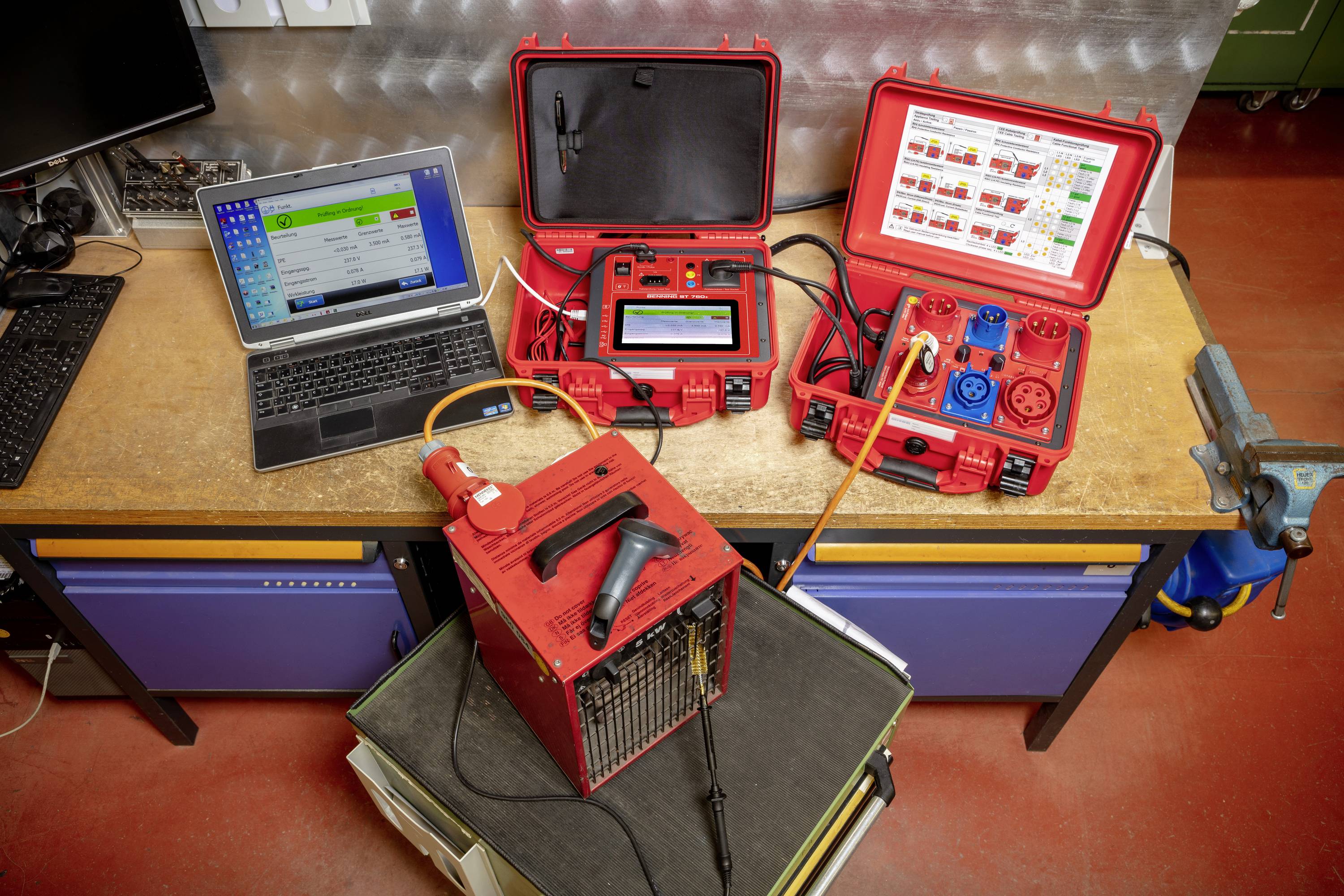

Connect the measuring adapter to a device tester for testing devices that change locally according to DIN EN 50678 (VDE 0701), DIN EN 50699 (VDE 0702) or DIN EN 62353 (VDE 0751-1) or DIN EN 60974-4 (VDE 0544-4).
The device tester must have a socket with earthing contact for connecting the measuring adapter. Depending on the type of test, a CEE 16A or 32A socket may also be available. An adapter cable is required for the CEE 16A.
The measuring adaptor is suitable for connection to the device testers:
Benning ST 725
Benning St 750 / 750A / 755 / 755+ / 760 / 760+
Other devices that can actively connect 230 V mains voltageInformation
Can also be used for non-manufacturer devices.
