Network cable tester R157000 Trend Networks SignalTEK 10G CT Networks

  • item model number: Y313642
Two blue and black network testers. The left one shows 'Pass' and 'Fail' in green and red. The right one displays network test results. Image is similar

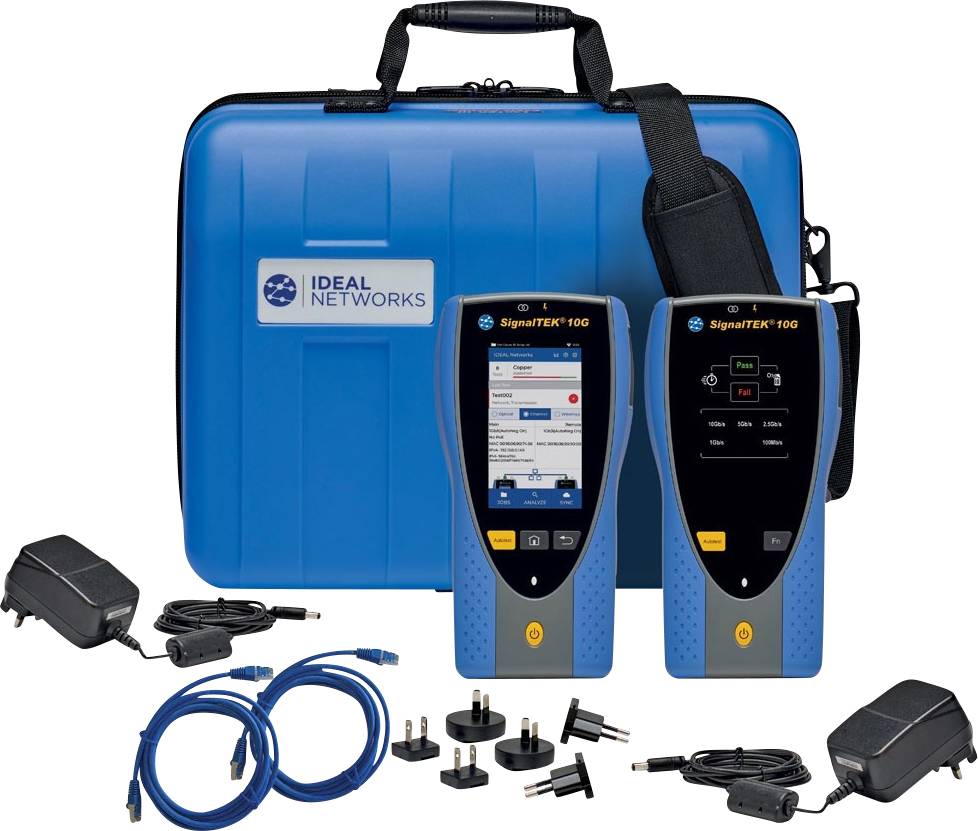

Image shows network cabling measurement devices with accessories and blue carrying case. Inscription: 'Ideal Networks'.

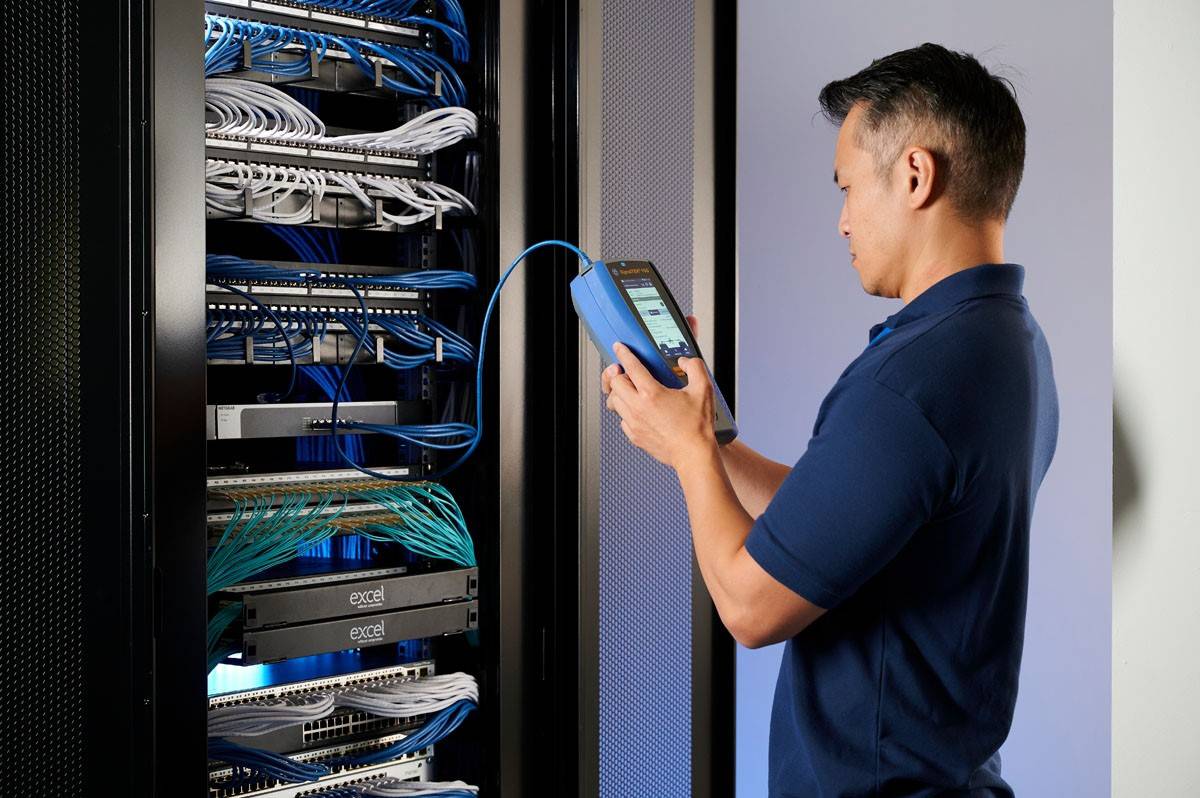

A person in a blue shirt is checking network cabling in a server room with a handheld device.

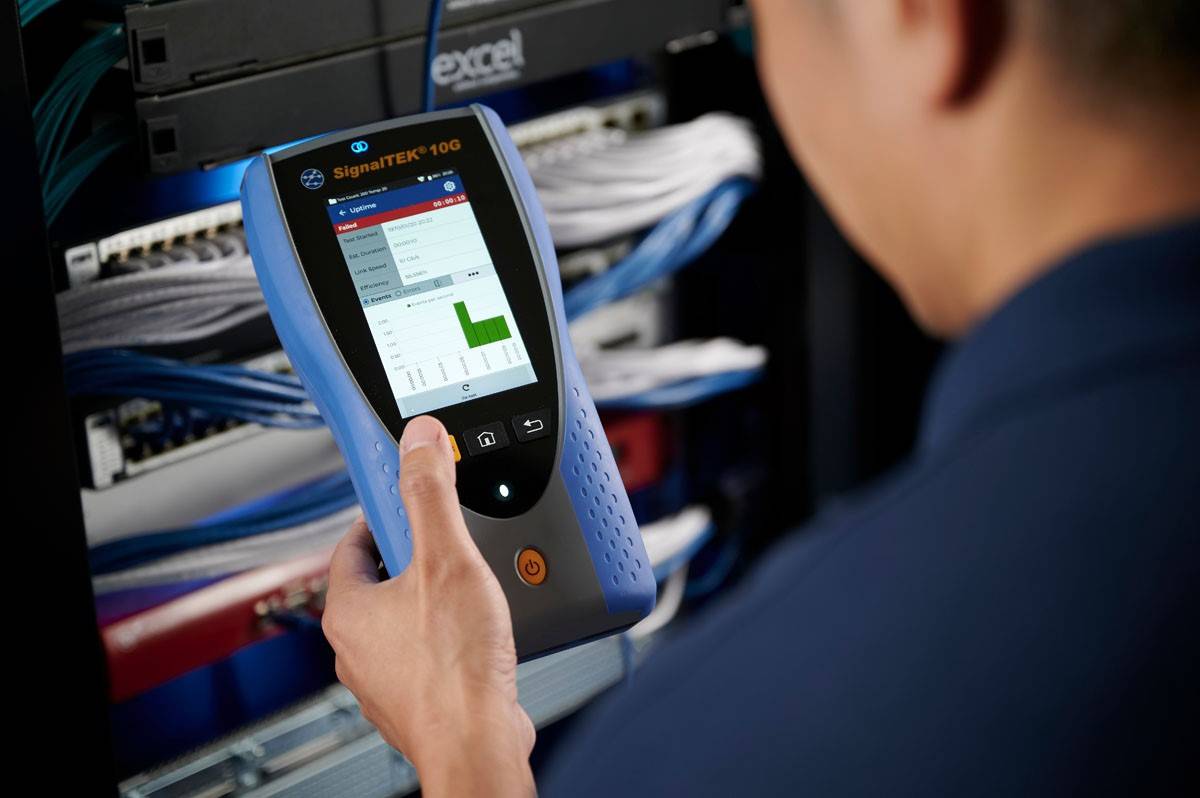

A person is holding a SignaTEK 100 device in front of a network server stack. The display shows a bar graph with network data.

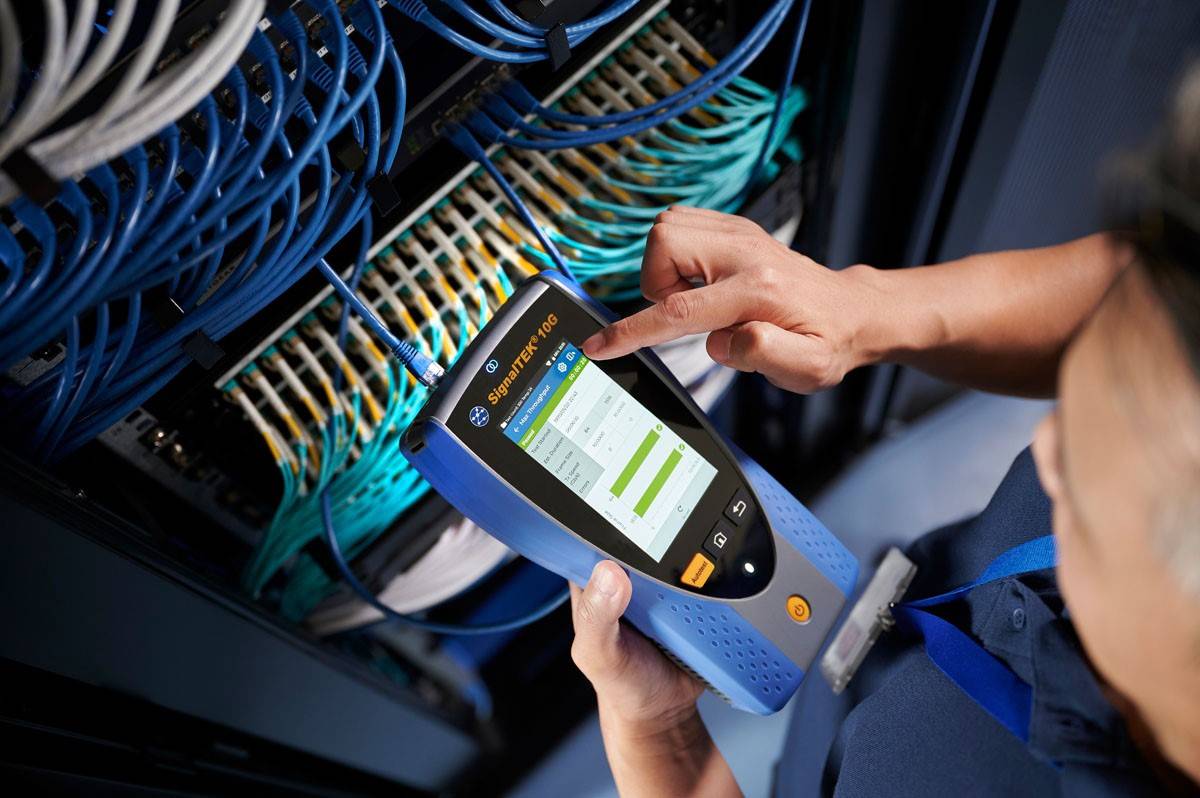

A person is operating a network testing device on a server rack to check the network connection. Cables are neatly arranged in the rack.

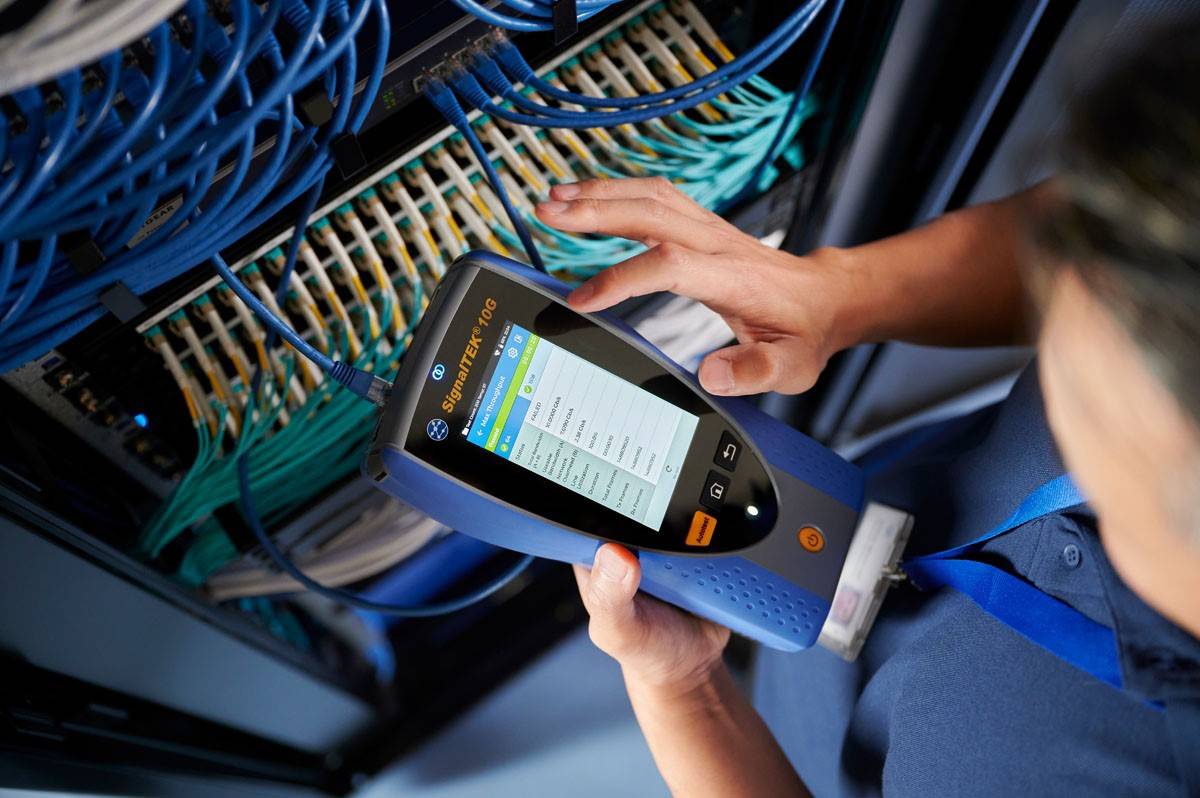

A person is operating a network diagnostic device in front of a server rack with numerous cables to check connections and signal strength.

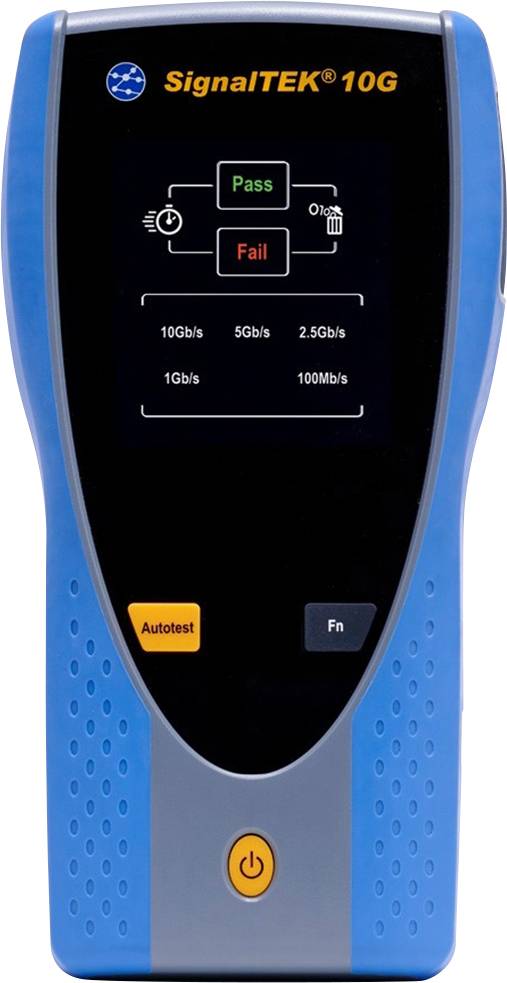

A handy network testing device with a digital display shows test results 'Pass' and 'Fail'. Various speed options: 10Gb/s to 100Mb/s.

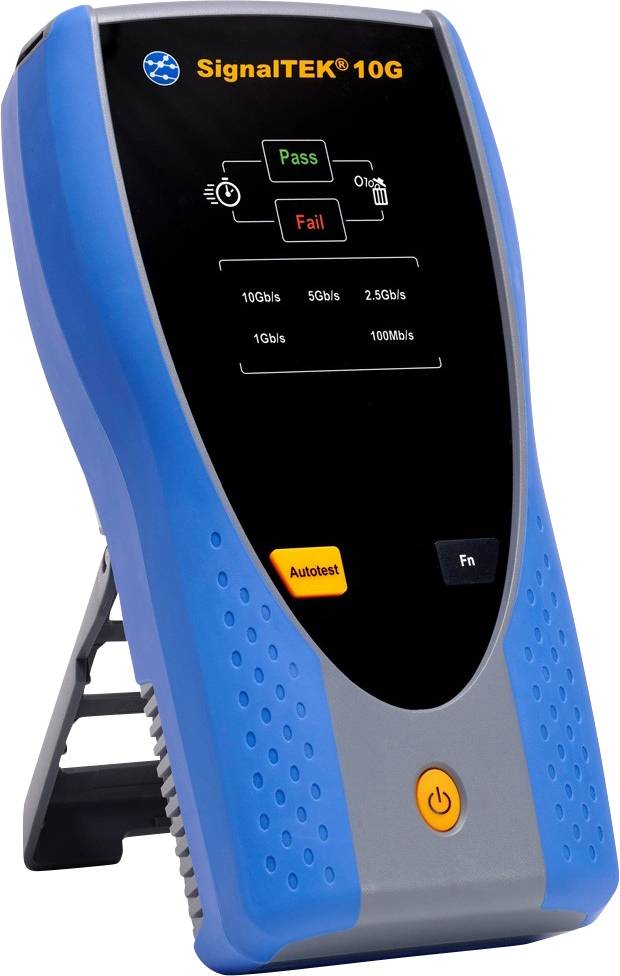

Handheld device with display showing 'Pass' and 'Fail' LED indicators, speed options ranging from 1Gb/s to 10Gb/s, large orange button.

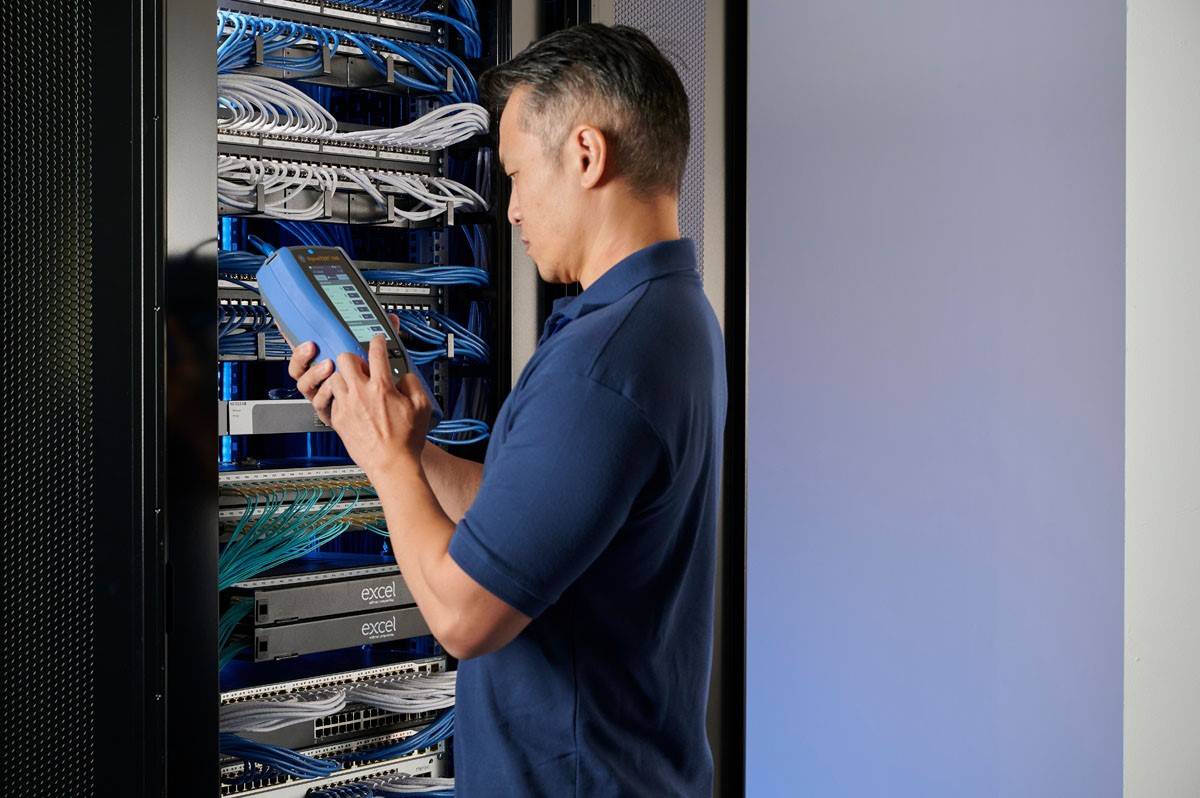

A technician in a server room is checking the connectivity of network cables in a rack using a tablet.
CHF 4 619.70
VAT included
plus
Delivery time: 4-6 days
available from 01/10/2026
30 days free return shipment
Network cable tester R157000 Trend Networks SignalTEK 10G CT Networks
CHF 4 619.70
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : CHF 4 573.50 1,0 % savings
from 5 piece : CHF 4 527.30 2,0 % savings
from 10 piece : CHF 4 481.10 3,0 % savings

Product description

Description

The SIGNALTEK 10G CT for the qualification of copper lines over 10 Gbit/s determines the bandwidth actually available in the network and identifies bottlenecks for the detection whether a cabling supports a transmission up to 10 Gbit/s according to IEEE 802.3. The SIGNALTEK 10G uses automatic tests to provide precise information and evaluation. The compact tester is characterized by a user-friendly operation, a 5" high-resolution touch-screen display and a stable housing. The integrated WiFi-connectivity enables the SIGNALTEK 10G a direct connection with the free Anyware Cloud management system. The SIGNALTEK 10G CT also offers a comprehensive set of basic functions and supports the testing of max. throughput up to 10 Gbit/s, data transmission test up to 1/2.5/5/10 Gbit/s, NBaseT/Multi-Gigabit test up to 1/2.5/5/10 Gbit/s, wiring, error removal (DTF), length, OK/error display according to IEEE standards for copper, testing of PoE installations up to 90 W (PoE+) Test all PoE classes (0-8) and PoE types (af/at/bt), display of voltage and PoE wire pairs, tone generator for cable search (with compatible inductive receiver 62-164). TeamViewer Live support to assist with device diagnostics. Configurable Autotest function for quick testing of common applications. PDF report of test results.

Characteristics

• supports testing of maximum throughput up to 10 Gbit/s,
• Data transmission test up to 1/2.5/5/10 Gbit/s,
• NBaseT/multi-gigabit test up to 1/2.5/5/10 Gbit/s.
• Wiring, error removal (DTF), length
• OK/error display according to IEEE standards for copper
• Verification of PoE installations up to 90 W (PoE++), testing of all PoE classes (0-8) and PoE types (af/at/bt)
• Display of the voltage and the PoE wire pairs
• Tone generator for cable search (with compatible inductive receiver 62-164)
• TeamViewer Live support to assist with device diagnostics
• Configurable Autotest function for quick testing of common applications
• PDF report of test results

Delivery content

  • SIGNALTEK 10G main-/end device
  • 2 Li-ion batteries
  • 2 power supplies
  • 2 cat. 6a patch cable 2 m
  • 2 carry straps
  • 1 Quick operating instructions
  • 1 transport bag.

Keywords

05056310400455, Trend Networks, R157000, SignalTEK 10G CT

Two blue and black network testers. The left one shows 'Pass' and 'Fail' in green and red. The right one displays network test results. Image is similar
Image shows network cabling measurement devices with accessories and blue carrying case. Inscription: 'Ideal Networks'.
A person in a blue shirt is checking network cabling in a server room with a handheld device.
A person is holding a SignaTEK 100 device in front of a network server stack. The display shows a bar graph with network data.
