Secure storage and quick charging station for up to 20 smartphones, tablets and other USB devices
USB-C power delivery (PD 3.0) charging ports with output power up to 3 A/18 W per port and 360 W total
Robust, secure, powder-coated metal housing, lockable with two keys included
Rubber feet for non-slip use on all surfaces
Universal C20 power connection, C19 on CEE 7/4 EU power cable included, can be replaced with regional versions if required
The loading solution for classrooms, restaurants and more
Visitors, guests, and employees take their mobile devices with them wherever they go. Give them a safe place to charge the empty batteries of their mobile phones and tablets with this Manhattan 20-port charging cabinet 360 W. It is the ideal loading solution for restaurants, schools, gyms, doctors' offices, universities, Hotels, car rentals and more.
Quick charging function with the latest device safety
Mobile users want to get their devices back as soon as possible. power Delivery 3.0 technology on all 20 USB-C ports means you don't have to wait long. With output current up to 18 W/3 A per port, smartphones, tablets and other USB devices can be used again in no time at all. Even convertibles with 18W USB-C PD support can be loaded. All these expensive devices are a lot of responsibility, but you can trust the comprehensive safety mechanisms of this cabinet without any hesitation. It offers protection against over-charging, over-voltage, short-circuit, voltage peaks and lightning.

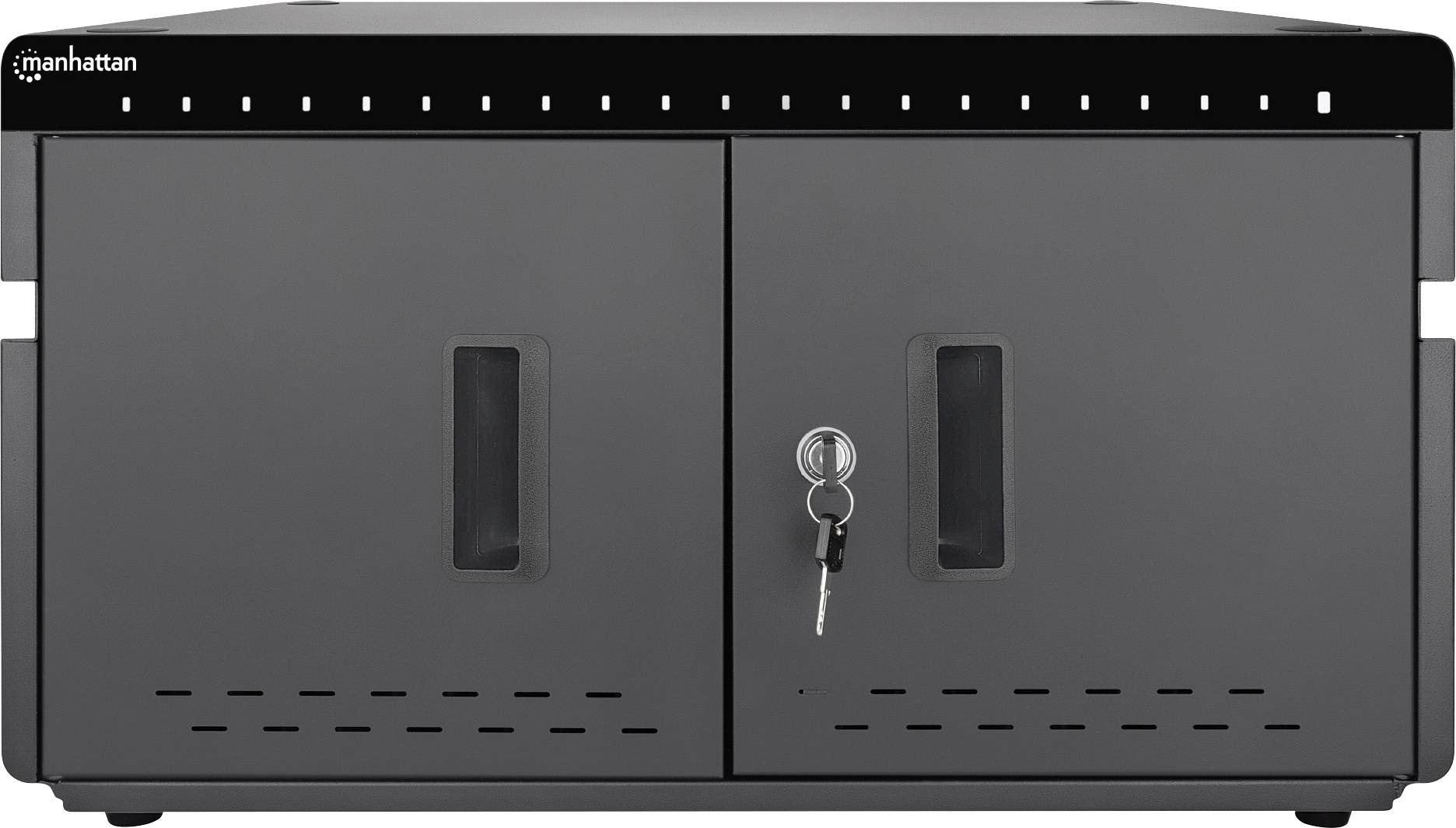

Physical security without compromise
Thieves and vandalism have no chance against the extremely robust metal housing of this cabinet. Your devices are securely locked and you only share access with authorized personnel via the enclosed 2-key set. The vertically divided double door is ideal for narrow spaces. An integrated fan and perforated door efficiently dissipate heat and keep all devices cool. The rubber feet guarantee non-slip use on any surface.

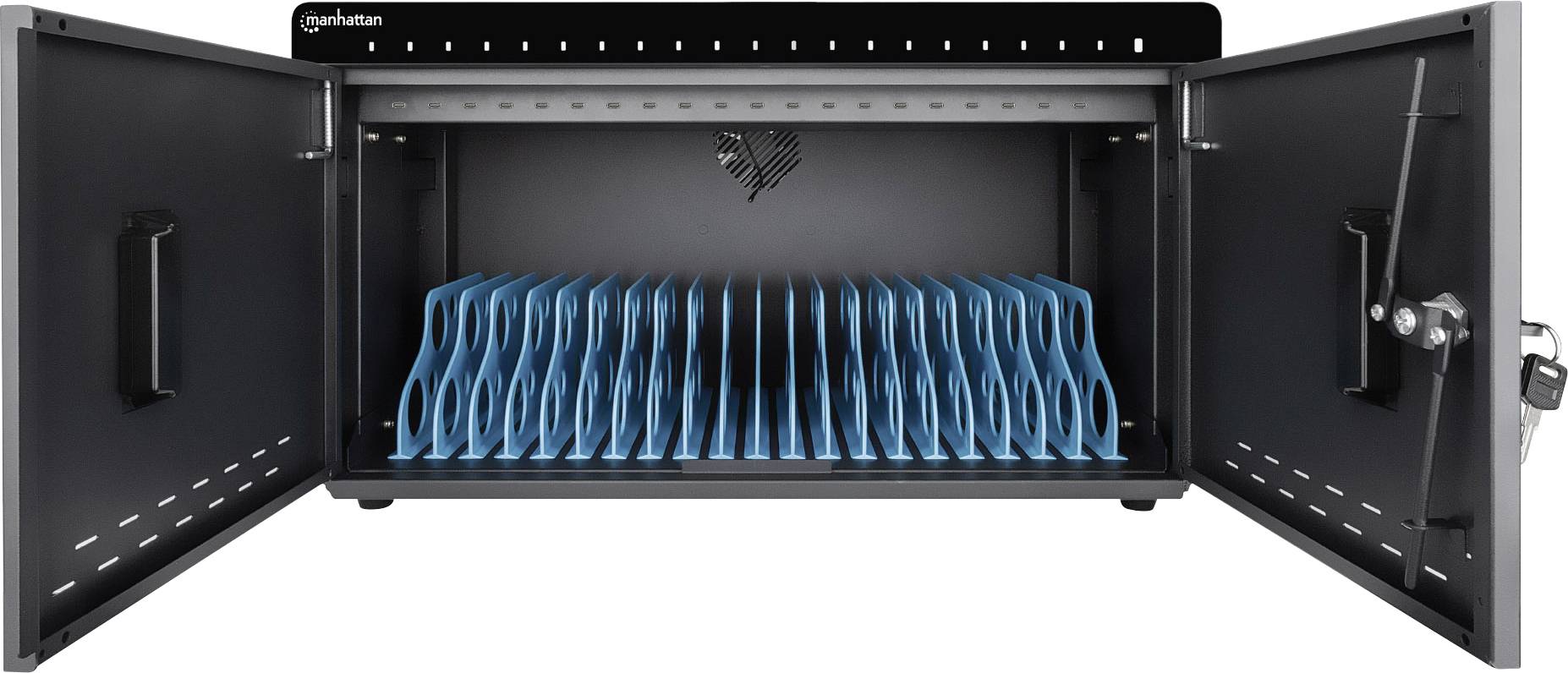

Spacious, structured and versatile

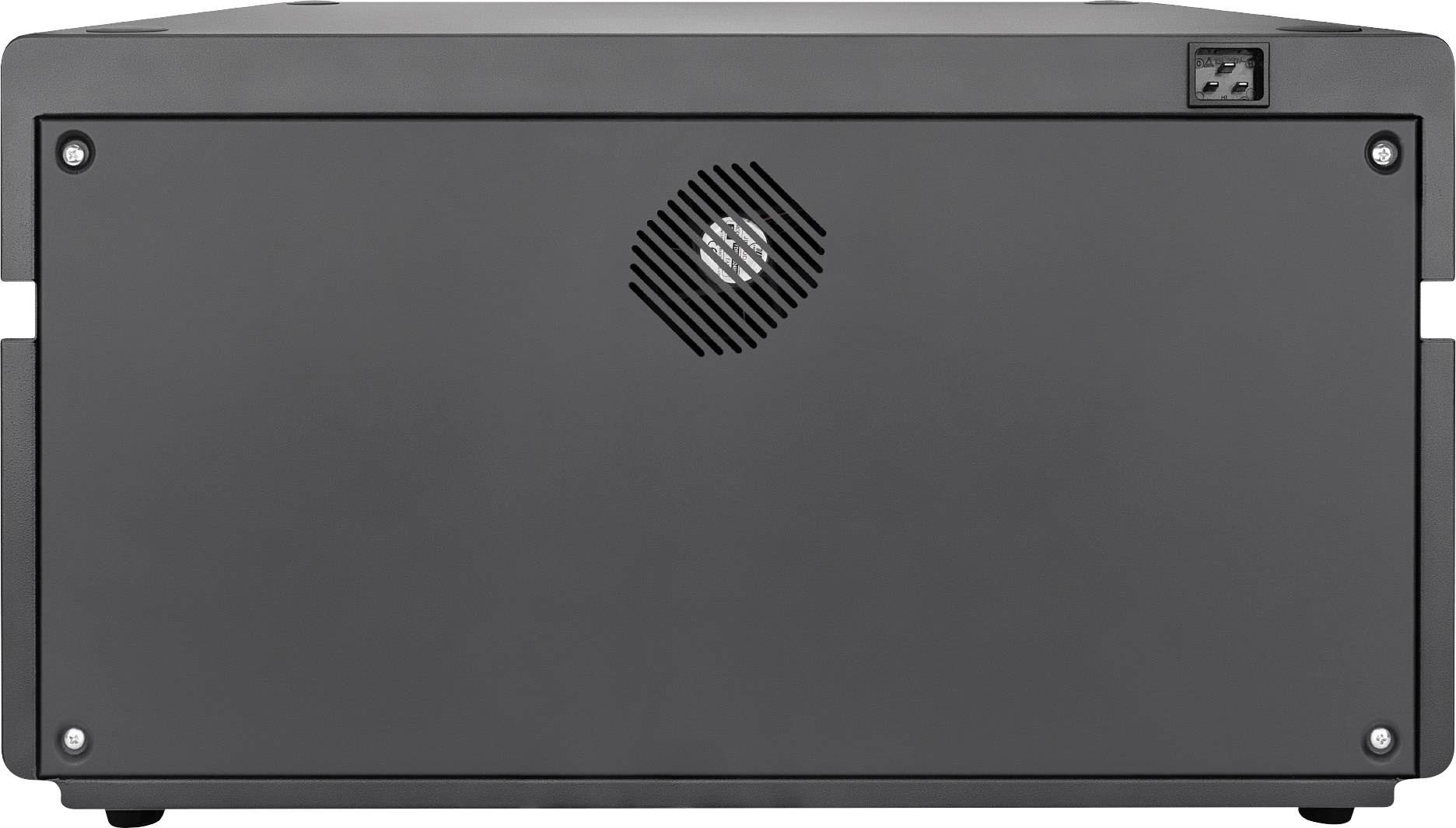

With 264 (T) x 22 (W) x 235 (H) per compartment, your devices have space in the 20 separating compartments, even if they are inserted in bulky protective covers. Minimize cable clutter in the built-in cable guides. If you are still looking for suitable USB-C charging cable, you can get it from a single source at Manhattan. Since this charging cabinet is based on USB-C ports instead of sockets, you do not need any USB chargers. The rear power connection is a universal C20 connection. For Germany and Austria you can use the enclosed 2 m long C19 on CEE 7/4 EU power cable, for other countries like Switzerland you can replace it with your own cable as required.
Standards and certificates
PD 3.0
CE
RoHS
Electrical details
Input 110 - 240 V; 16 A; 50 - 60 Hz
USB-C outputs: 5 - 12 V; maximum 3 A; 18 W; 20 output ports with 360 W total
Voltage/current settings (max.):
USB C
- 5 V/3 A.
- 9 V/2 A.
- 12 V/1.5 A
Protective measures
Short Circuit Protection (SCP) with Auto Recovery Mode
Overvoltage Protection (OVP) with Auto Recovery Mode
Overcurrent Protection (OCP) — Voltage limit 150% (max)
Physical details
Power switch
LED status indicators
Vertical split double door
Casing: Cold-rolled steel with 1 - 1.5 mm thickness
Compartment dimensions (20) 264 (D) x 22 (W) x 235 (H) mm
Power cable length 2 m
Ambient conditions
Operating temperature: 0 - 45°C
Storage temperature: -15 - 45°C.
Humidity (non-condensing): 20 - 80%
