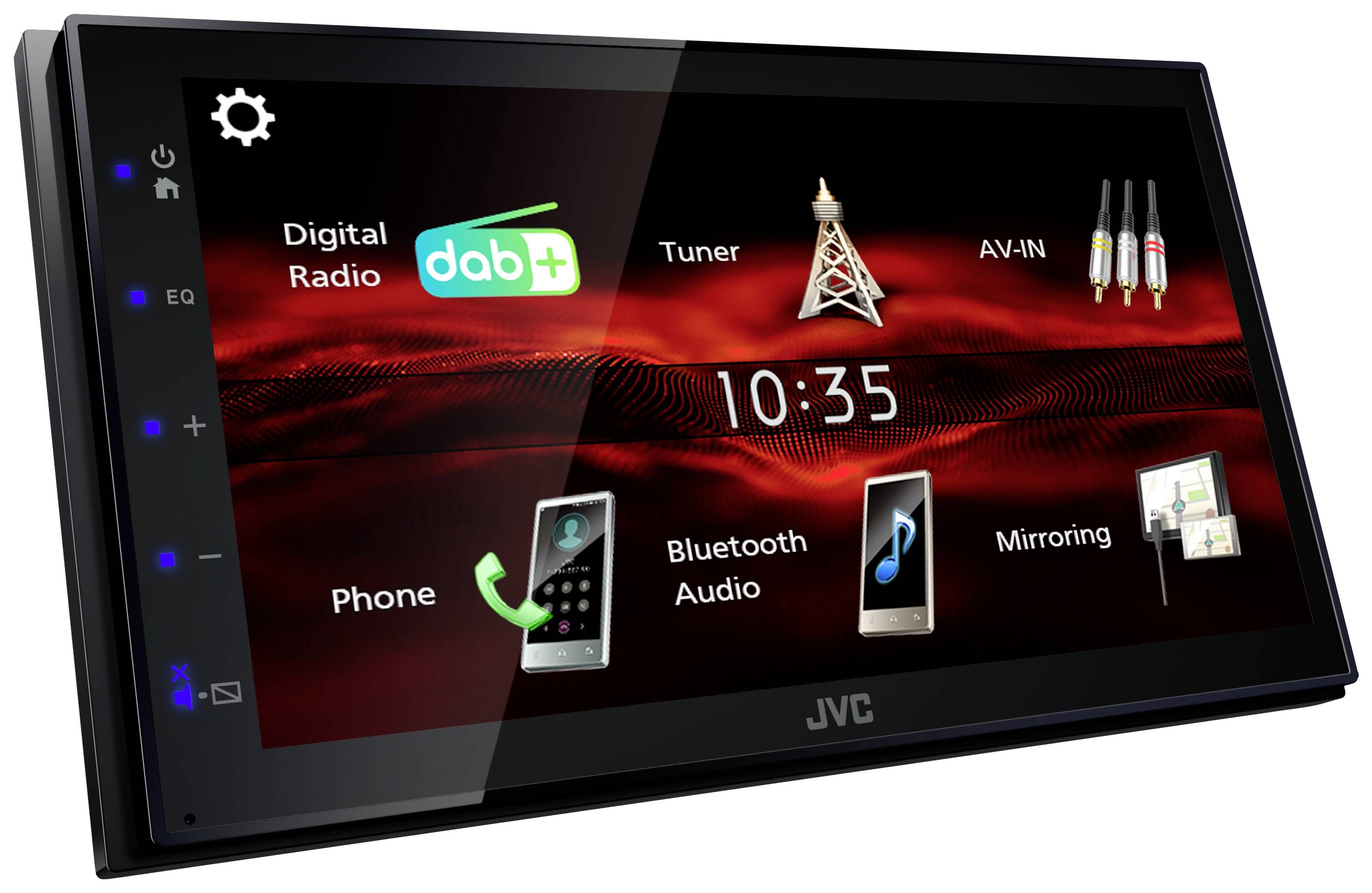

JVC KWM180DBT Double DIN monitor receiver Bluetooth handsfree set, DAB+ tuner, Rearview camera connector, Steering wheel RC

Overview

17.3 cm (6.8") WVGA double DIN monitor with capacitive high gloss touch panel
Responsive touch panel control
DAB+ and FM radio, USB connection
Bluetooth module for handsfree (HFP 1.6) & A2DP (included AVRCP 1.5)
Cable microphone included in delivery
Clear user interface with menu display in 12 languages
Blue key illumination
Quickly ready for use - With the "Quick Boot" function you are ready to start shortly after activating the ignition
Over 50% lower installation depth (no CD-drive): Only 75 mm

Description

Digital media receiver with capacitive WVGA touch screen with Android USB mirroring, DAB+ tuner, Bluetooth®, 13-band EQ, rear-view camera input, 75 mm short casing.

DAB+ digital radio
Android USB mirroring enables the display contents of the telephone to be mirrored via digital image data transfer via USB. This allows navigation apps and other useful applications to be used. The mirrored content can also be conveniently operated directly via the KW-M180DBT touchscreen.

Android USB mirroring
Android USB mirroring enables the display contents of the telephone to be mirrored via digital image data transfer via USB. This allows navigation apps and other useful applications to be used. The mirrored content can also be conveniently operated directly via the KW-M180DBT touchscreen.

Characteristics

Tuner:
20 FIXED STATION MEMORY (15 FM, 5 MW & LW)
Digital radio receiver
A/V
USB mirroring for mirroring of Android smartphones
IPod*/iPhone* control incl. Search functions
USB port on the back for memory with video data in MPEG1/2/4, H.264, MKV as well as audio data (MP3/WMA/WAV/AAC/FLAC)
Rear connections: Rear-view camera, AV input, AV output (video: Cinch)
3 pre-amplifier outputs 2 V (front, rear, sub)
DSP with 13-Band Graphic equalizer, loudness function runtime correction (DTA)
Connection possibilities of external components:
Port for rear view camera
Connection for iPods/iPhones via the optional connection cable
Connection for OEM steering wheel remote control (opt. Adapter is required)

Information

* Playback and control of audio content with compatible iPhones and iPods is possible for use
A Apple device with an Lightning connector is equipped with an appropriate adapter. Video content can be accessed via
The Lightning connector is not displayed.

Delivery content

• Mounting bracket
• Front panel
• 2 x unlocking tool
• Hands-free microphone.

Keywords

JVC, KWM180DBT, car radio, car cd player, car audio

Other notes

Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
