Display of rotating field direction for three-phase cables
Synchronous or asynchronous motor direction
Fault display
Touch and wireless recognition of motor direction of rotation while motor is running

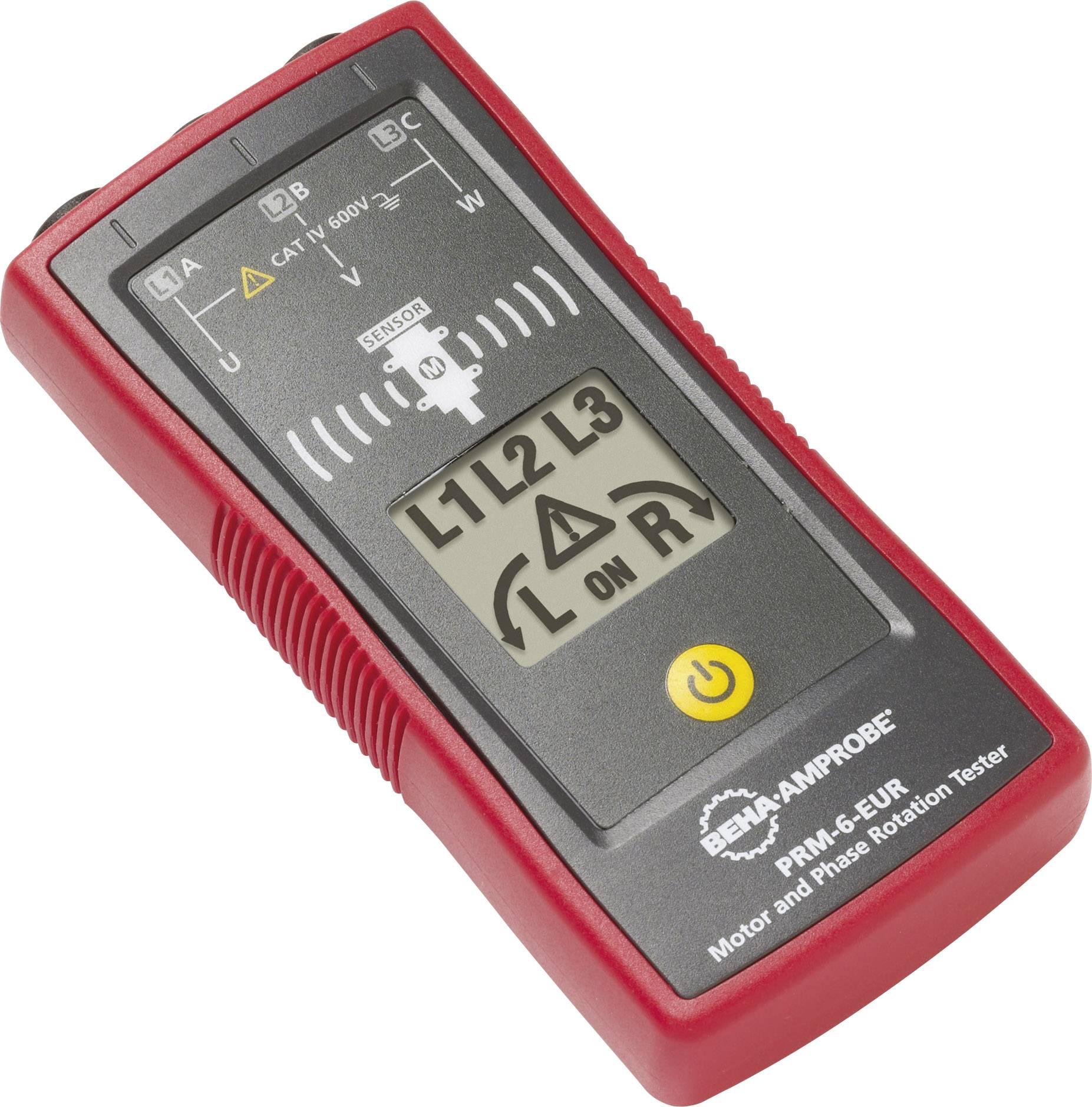

Clear, illuminated LCD display with easy-to-read symbols

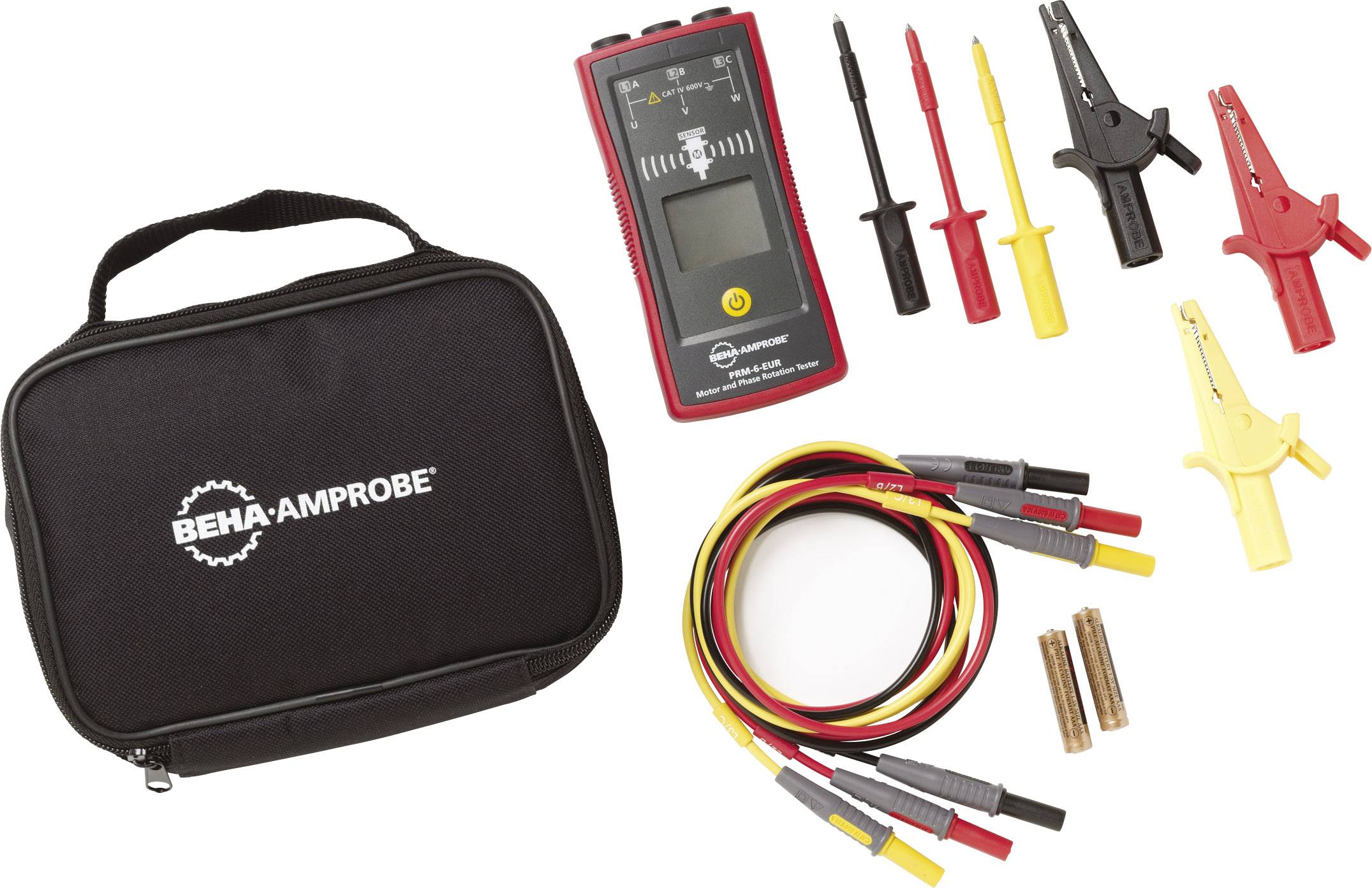

The PRM-6-EUR is a simple and reliable tester for the correct rotating field direction on three-phase cables and sockets, it has a clear, illuminated LCD display and can test the direction of rotation of separate motors using test leads. An advanced feature of the PRM-6 is the non-contact detection of the direction of rotation of the motor, which detects the direction of rotation of the motor without test leads. The PRM-6-EUR has a sturdy construction with a rubber outer shell, is classified in CAT IV 600 V and complies with EN 61010 and EN 61557 standards, making it ideal for testing the direction of motor rotation and the rotary field direction in electrical systems up to 700 V in commercial and industrial environments.

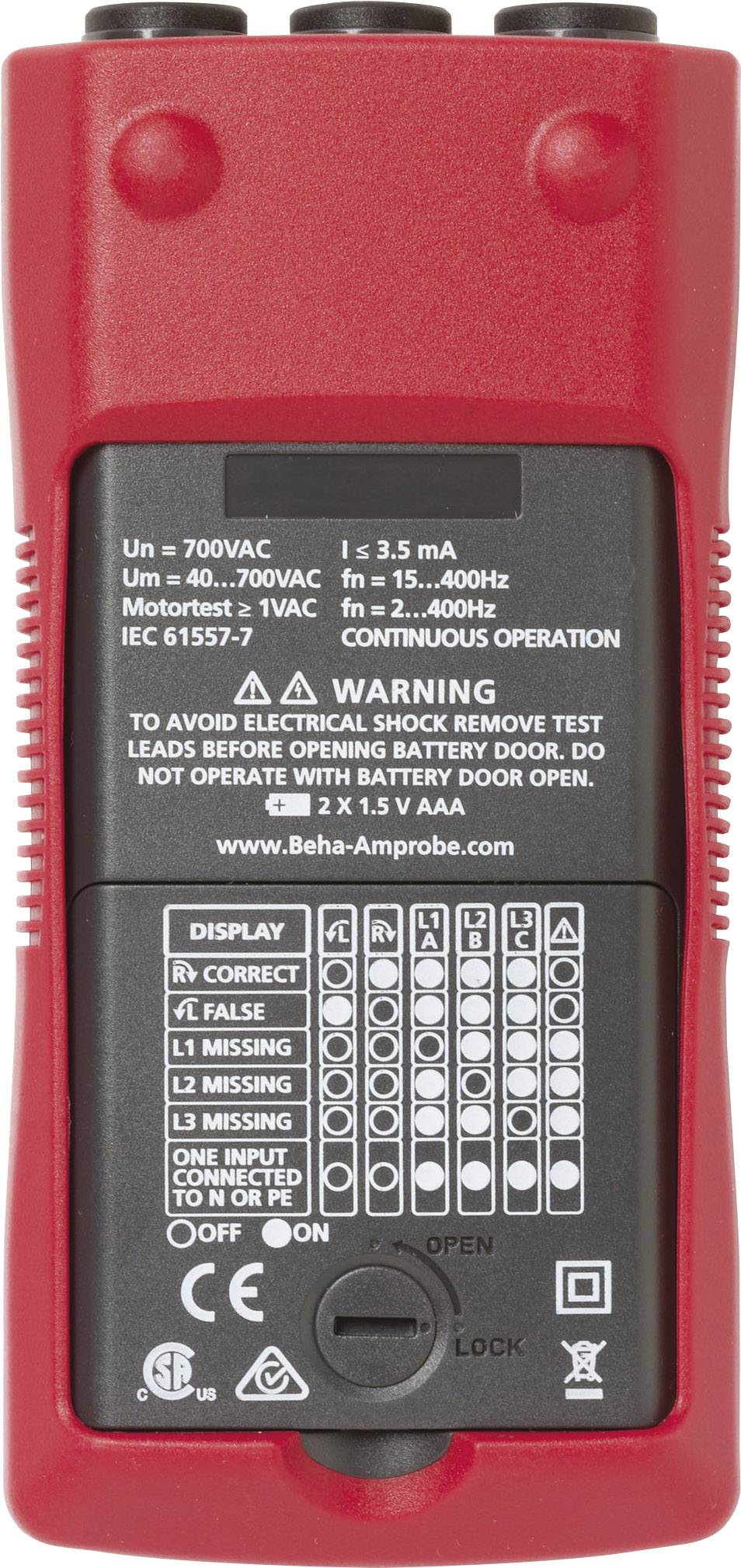

Error indication: missing phase, an input is connected to Neutral or PE or the voltage difference between the phases exceeds 30 % from phase to phase or 65 % between phase and Neutral.
00095969785679, 095969785679, Beha Amprobe, 4633222, PRM-6-EUR
