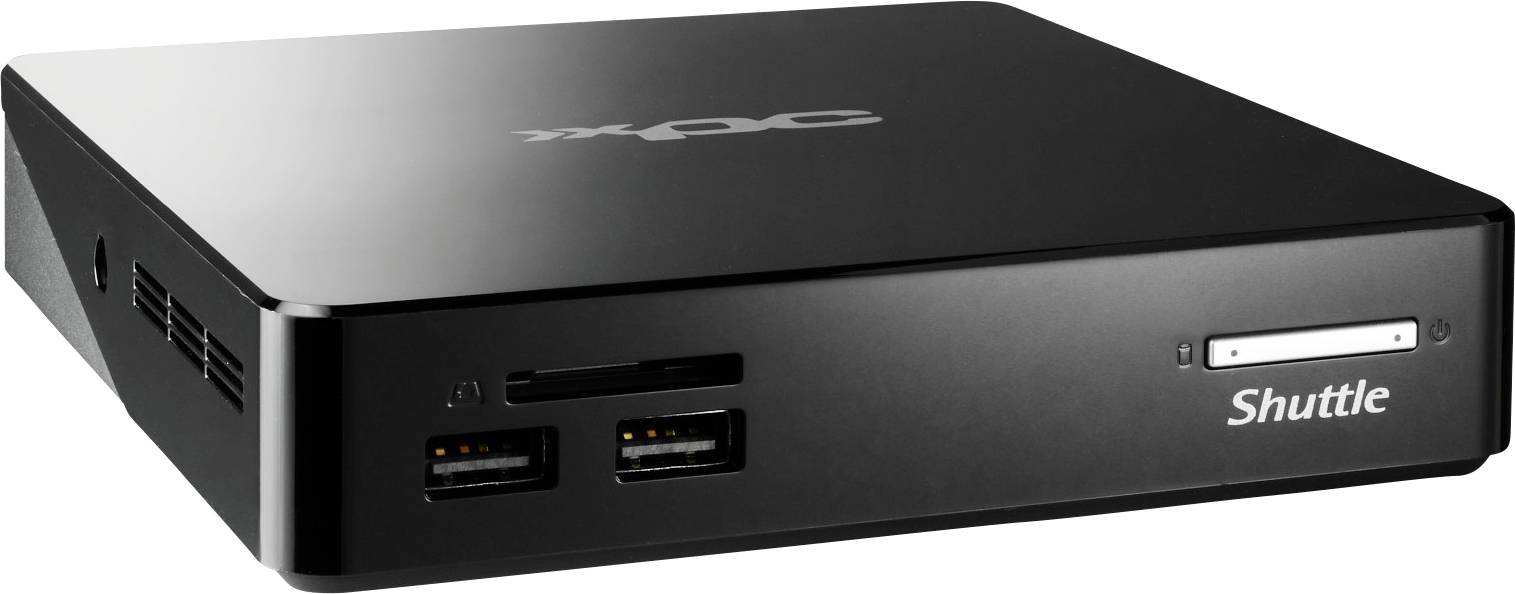

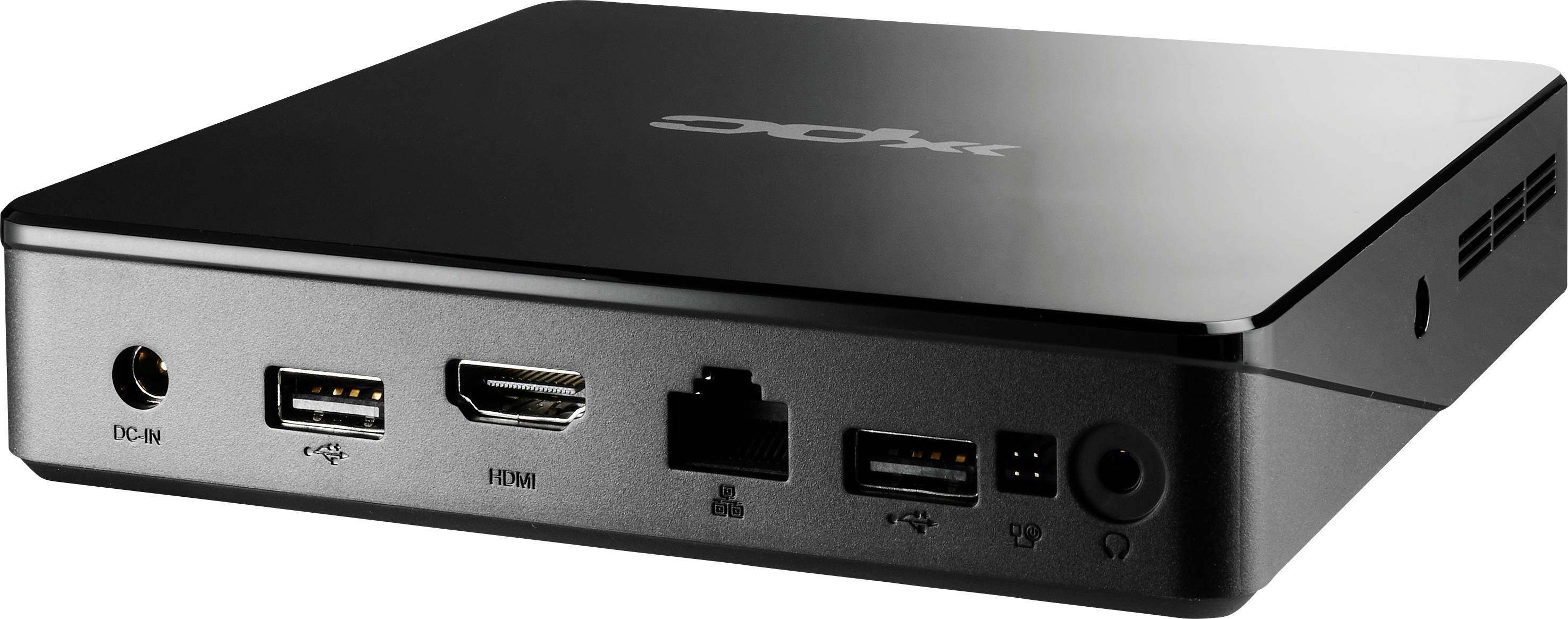

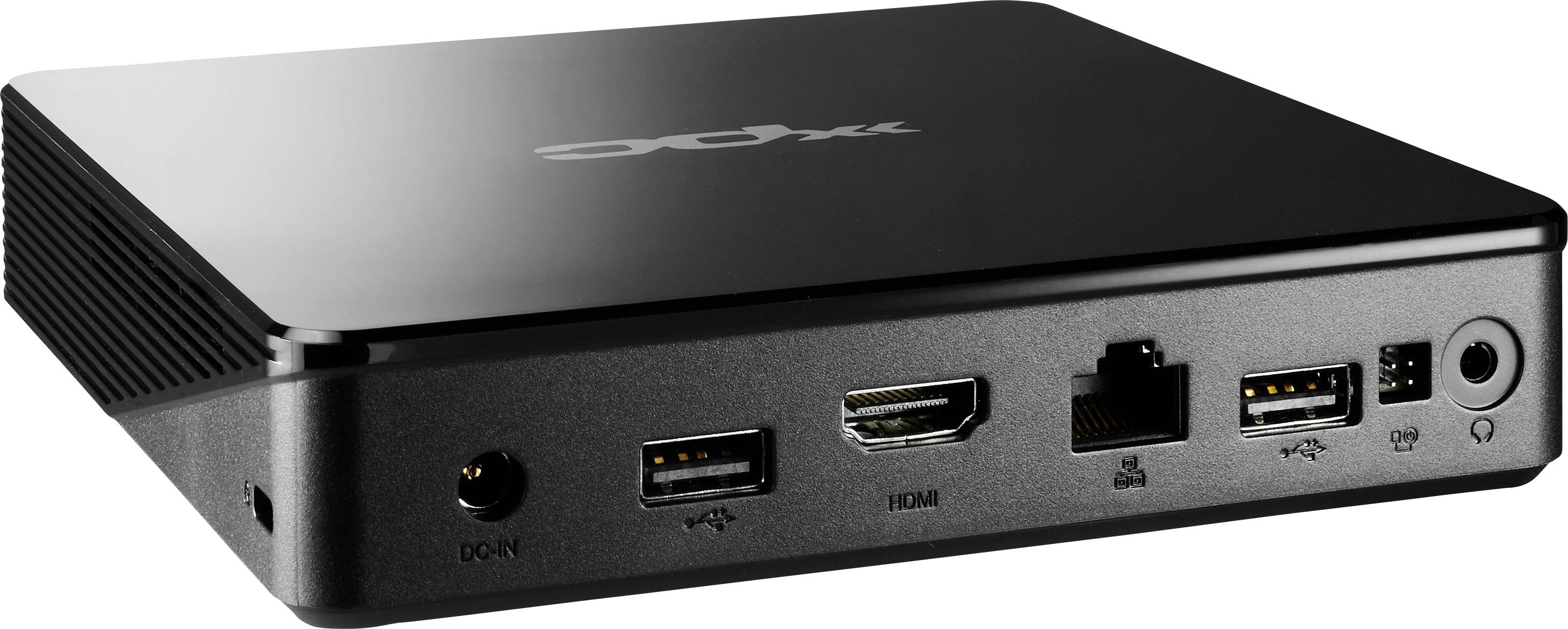

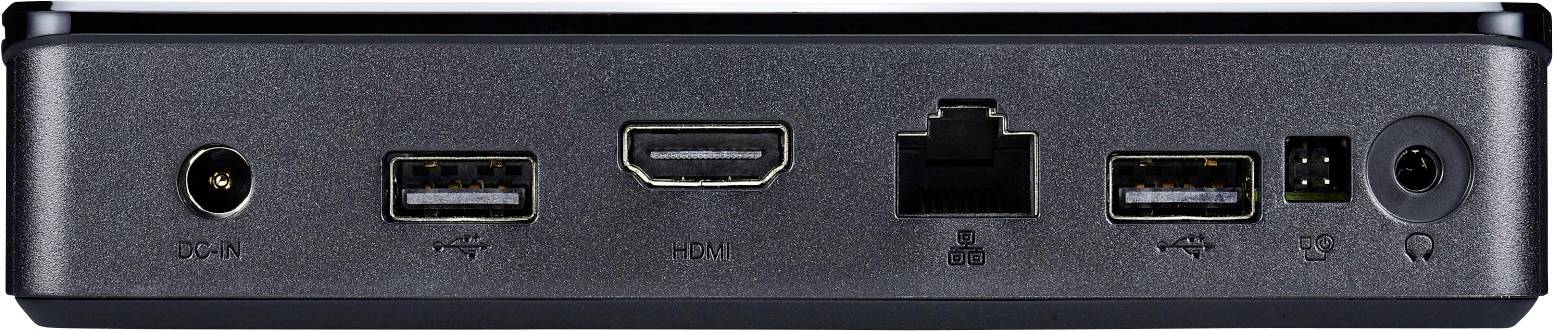

Shuttle Android Mini PC NS02AV2 Rockchip RK3368 2 GB RAM 16 GB eMMC Imagination Android 8.1 NS02AV2

Overview

Processor: Rockchip (RK3368) (8 x;1.5 GHz)RAM: 2 GB;DDR3 RAMMemory: 16 GB;eMMCGraphics: ImaginationOperating system: Android™ 8.1 Oreo

Description

Fanless 0.5 liter Android-based PC supports HDMI 2.0
shuttle XPC nano NS02AV2 is one of the most affordable models of the shuttle XPC product family. It not only impresses with its stylish appearance and stability, but is also particularly powerful thanks to the eight-core ARM processor and the pre-installed Android operating system. With HDMI 2.0, 4x USB 2.0, Gigabit-LAN, WLAN-ac and card reader, a variety of connection options are available for various application scenarios. This product is especially designed for digital signage and thin client applications.

Characteristics

Housing made of black plastic · Dimensions 141 x 141 x 29 mm (LBH) · Weight: 0.27 kg net, 0.65 kg with packaging · Opening for Kensington lock · approved for 24/7 continuous operation · Android 8.1 ("Oreo") pre-installed [1] · Player software - use this free app on your mobile phone or tablet to upload digital signage content such as body copy, images, videos and website links to shuttle XPC nano NS02AV2. The connection is made via the WLAN within the local network · supports hardware solution for automatic power on (Power-On-after-Power-Fail) · supports switching on and off after time setting · supports image rotation · supports scaling of video output (zoom-in/out) · Processor: Rockchip RK3368 Octa-Core Cortex-A53 · 64-bit SoC with NEON co-processor · 28 nm HKMG manufacturing process · Frequency: 1.5 GHz max. · Integrated graphics: PowerVR SGX6110 graphics processor, clock frequency: Up to 600 MHz, supported · OpenGL ES3.1 and OpenCLES3 External 24 W power supply (fanless) · Input 100-240 VAC, 50/60 Hz, 0.7 A max. · Output 12 V DC, max. 2.0 A, max. 24 W · DC plug 5.5/2.5 mm (outside/inside diameter) · Memory: 2 GB DDR3L onboard · Flash memory: 16 GB eMMC flash memory onboard · Audio chip: Realtek® ALC5640-VB · 3.5 mm analogueue audio line output for headphones · Digital audio output via the HDMI connection · LAN chip: Realtek® RTL8211F-CG · supports 10 / 100 / 1,000 MBit/s data transfer rate (Gigabit) · supports wireless LAN IEEE 802.11b/g/n/ac with 2.4 and 5 GHz · supports Bluetooth 5.0 (UART interface) · Integrated SD card reader for reading and writing SD, SDHC and SDXC · Flash memory cards · Connections Front panel: 2x USB 2.0, SD card reader (supports SD, SDHC, SDXC), on/off button, power LED (blue), Hard drive LED (orange) · Connections Rear: HDMI 2.0 supports 2160p/60Hz and CEC, 2x USB 2.0, Gigabit LAN (RJ45), audio line output / headphone connection, 3.5 mm socket, DC input for external power supply, 2-pin connection for e

Information

HDMI® is a registered trademark of HDMI Licensing, LLC.
Image may differ from actual product.
[1] An Android image with root access is available on request.
[2] the NS02AV2/NS02EV2 does not support Google Play services, this also applies to Google Play.
[3] The device is equipped with an internal WLAN antenna. The housing also has a perforation for the optional installation of an external WLAN antenna. The matching antenna cable with SMA connector is included, the antenna is not included in the delivery.

Delivery content

• User manual
• VESA bracket with screws
• External mains adapter
• Antenna cable, 10 cm [3]
• Rubber base.
