Overview

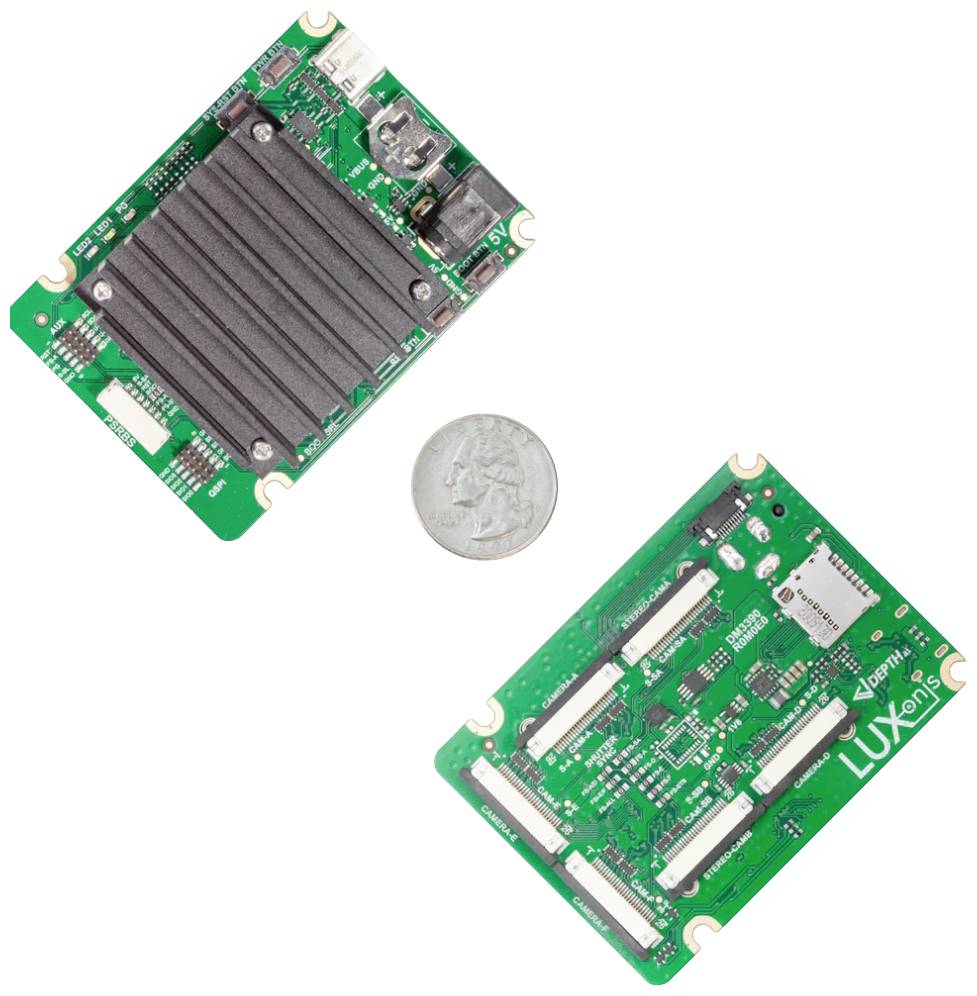

LUXONIS OAK-FFC-6P
Connection option for up to 6 x FFC cameras

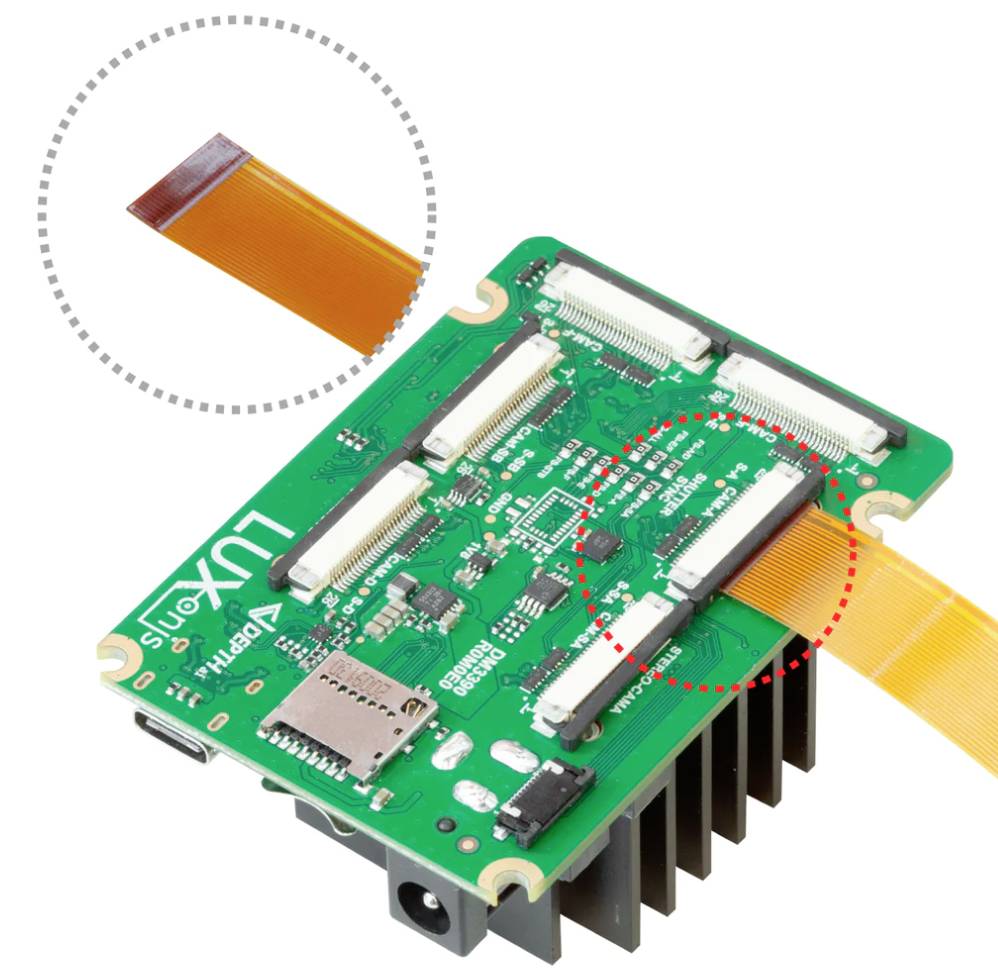

Improved ruggedness of the FFC connectors
ESD resistant
Ability to work with ArduCam cameras only with one adapter cable
Standardized pin assignment
This offer is only valid for business customers
This offer is only valid for business customers
-
Product description
Description

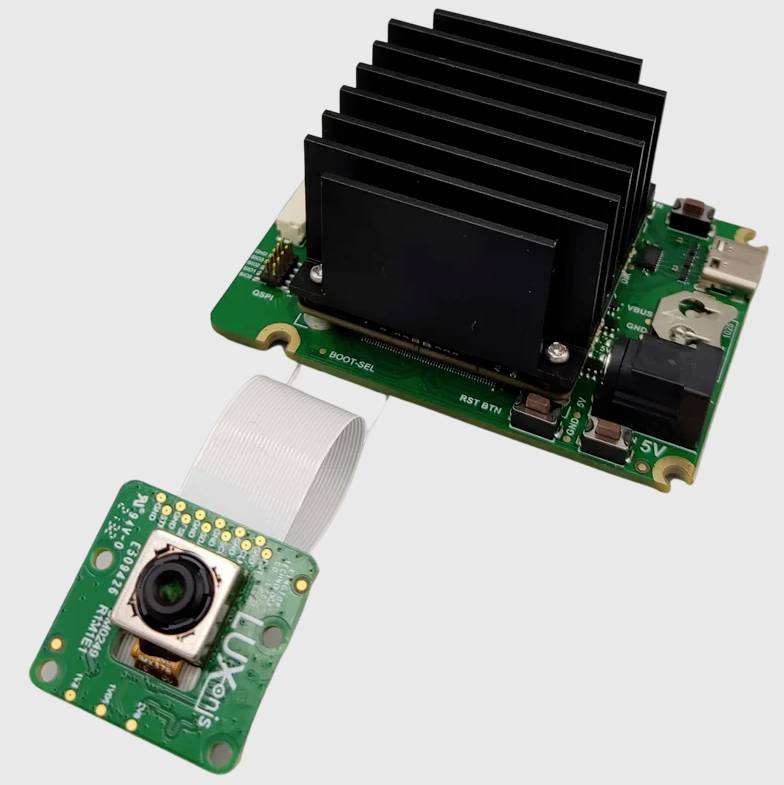

The OAK-FFC-6P uses the OAK-SOM MAX. This includes the new Robotics Vision 3 with a Quad-Core ARM CPU. Up to six 2-lane MIPI camera modules can be connected. It is therefore perfect for a quick prototyping with different stereo baslines, field of view and image sensor permutations.
Characteristics
USB-C port: Supports USB2 and USB3 protocols (5Gbps/10Gbps)
5V-current input via barrel jack
BNO086 IMU single-chip sensor: 9 axes and integrated sensor fusion
3.0 TOPS for AI
CODING: H.264, H.265, MJPEG - 4K/75FPS, 4K/60FP
Imaging: ISP, max. 6 cameras, 500MP/s HDR, 3A
Computer Vision: Warp/Dewarp, resize, cropping via ImageManip nodes, edge detection, feature tracking
Stereo depth perception with filtering, post-processing, RGB depth matching and high configurability
Object tracking: 2D and 3D trackingDelivery content
- OAK-FFC 6P ASSEMBLY
- Flexible flat cable, 15 cm (6pc)
- Power-supply mit international adapters
- Cable USB-CA-1m
