Description

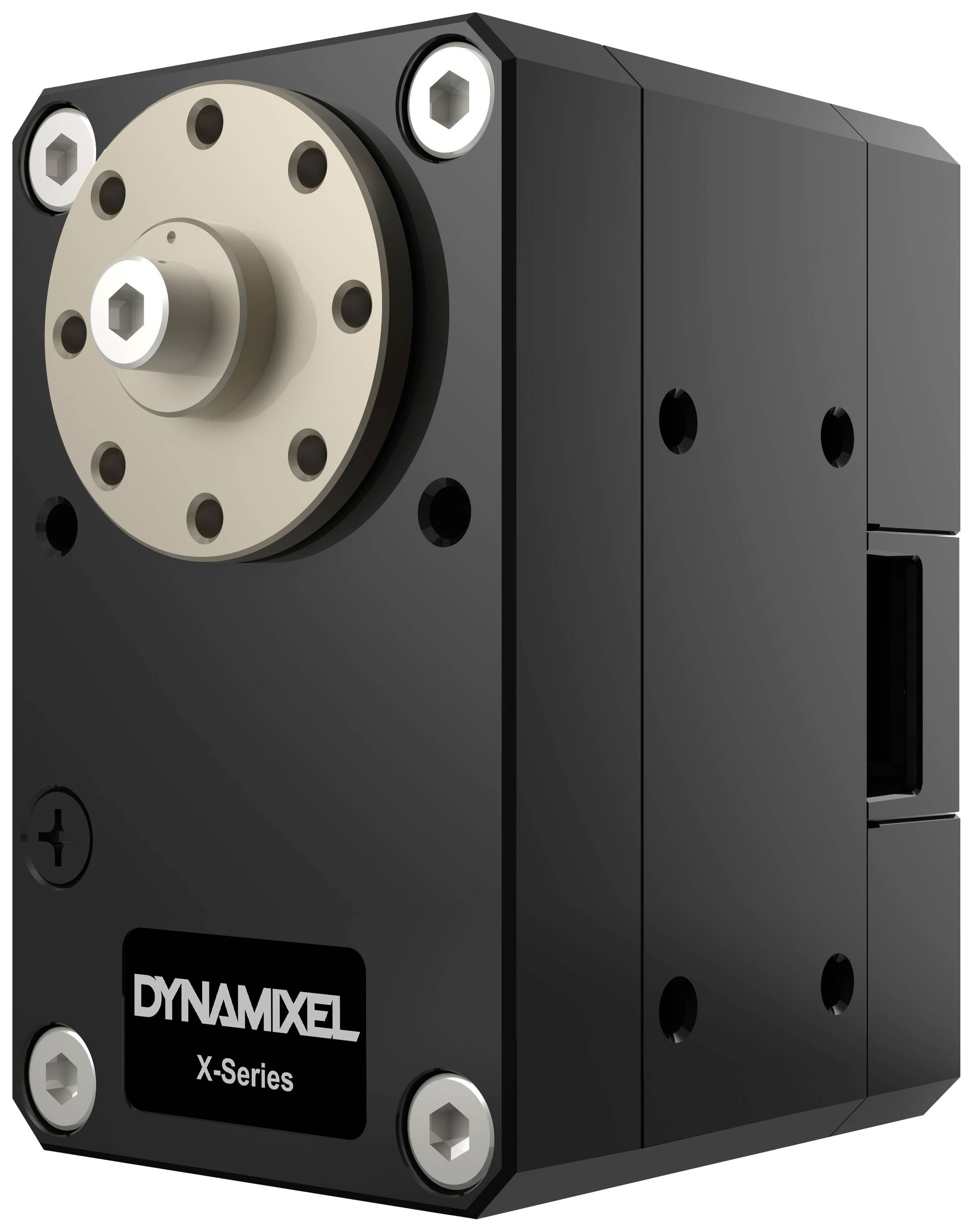

The Dynamix X-Series, is currently the latest network servo-motors series, by ROBOTIS. The XD540-T270-R servomotor has a non-contact magnetic encoder which enables 360° rotations with a speed of up to 60rpm. Torques of up to 6.4N.m with a voltage of up to 24V are possible. These outstanding performance features coupled with the extremely low weight of only 170g result in a very powerful servo motor for the universal application area. Beyond that the cable routing was fundamentally revised with the Dynamic X-series, whereby a still higher reliability was achieved. The cables are no longer connected to the rear of the servo motor as is usual in the AX/MX series, but are guided past the pivot and pivot points, thus reducing the cable strain and minimizing exposed cables.
