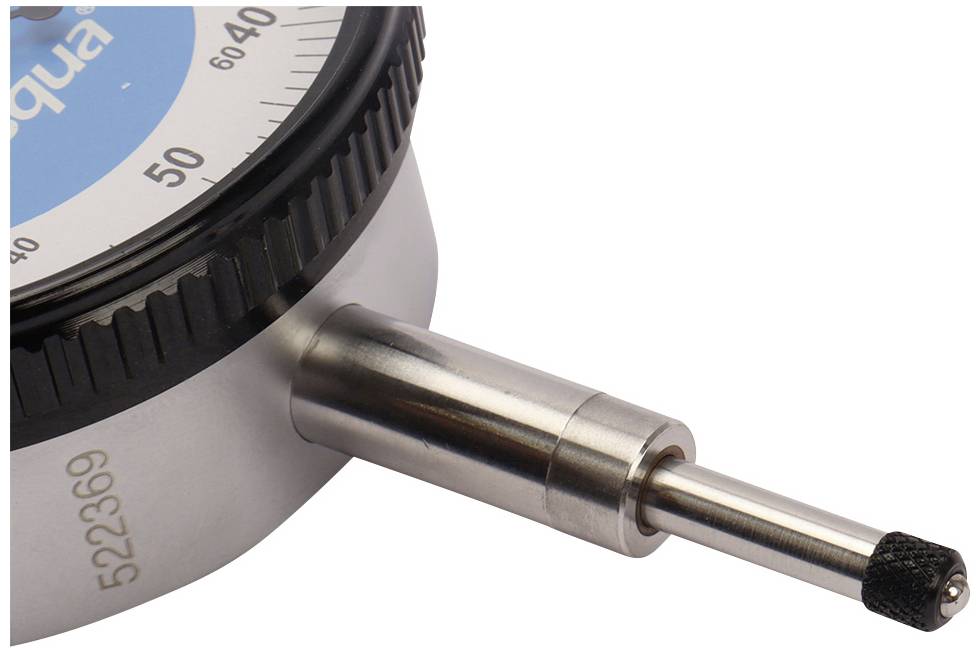

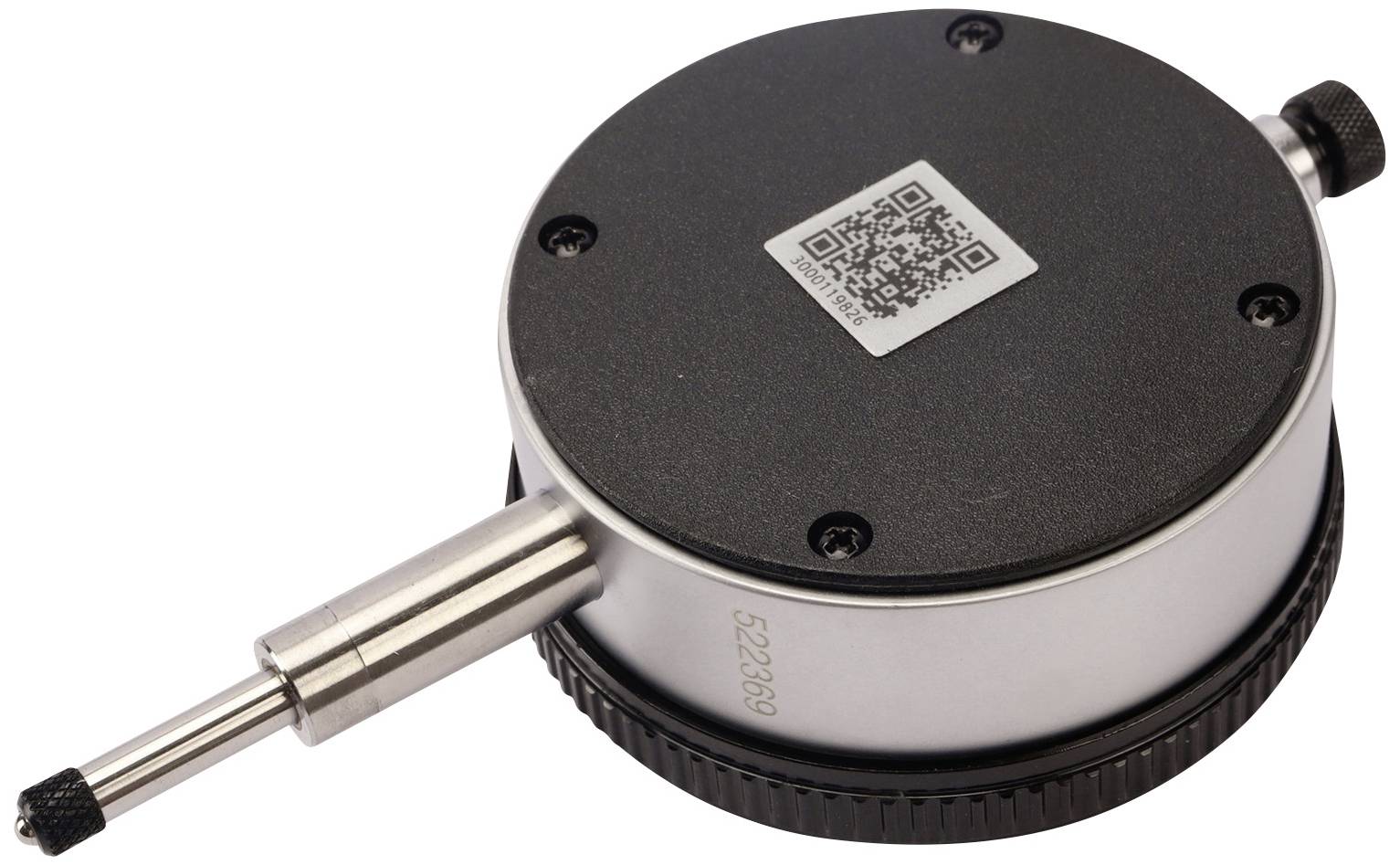

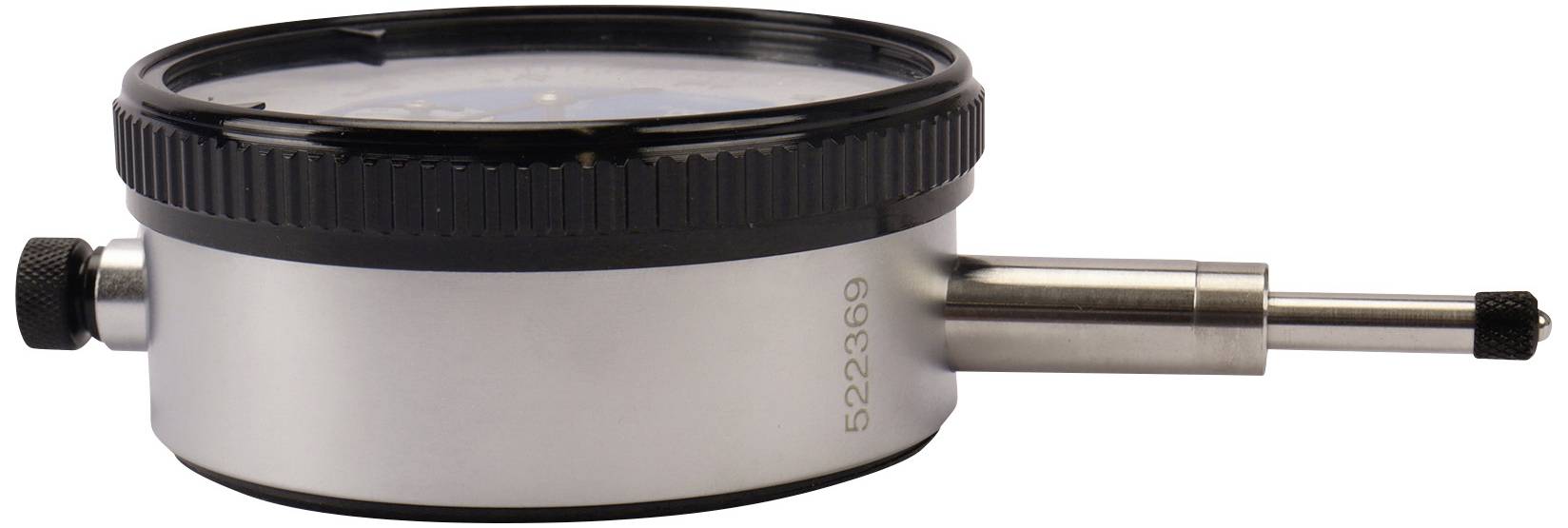

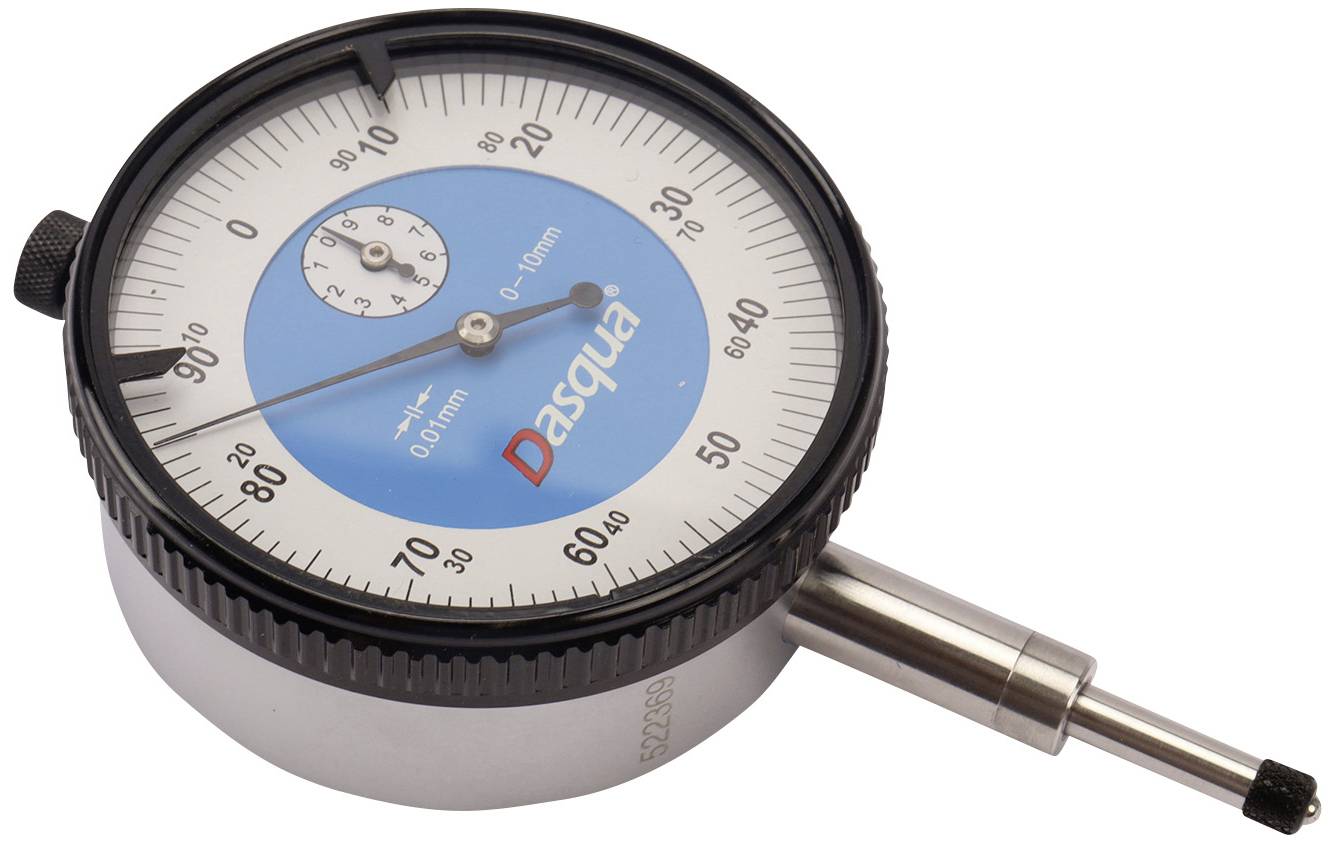

Dasqua 5111-1105 + 8511-0060 Dial gauge
Product description
Description

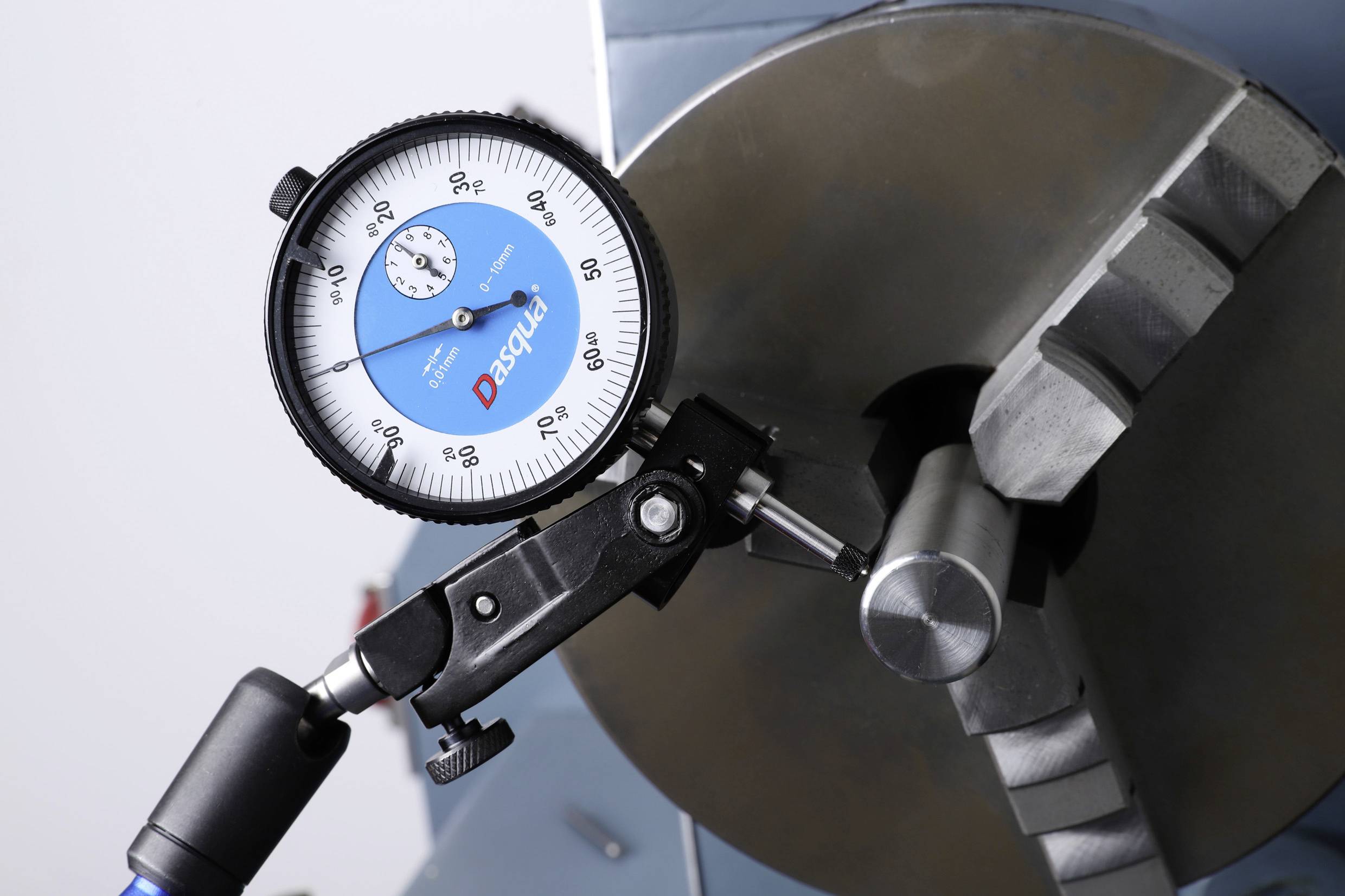

For measuring the flatness of surfaces, of axial rough edges and for checking the fitting and the lawfulness of tools.

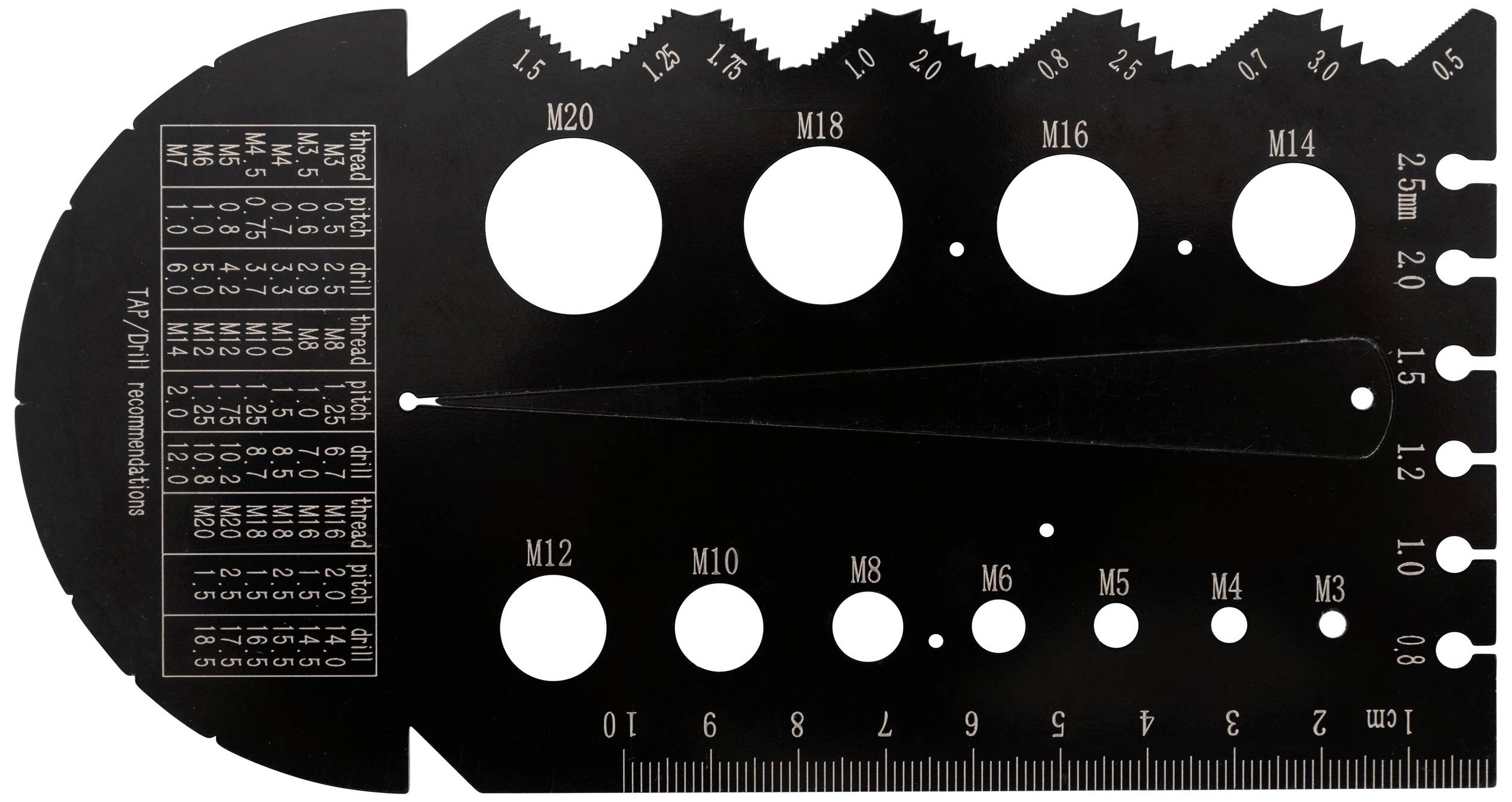

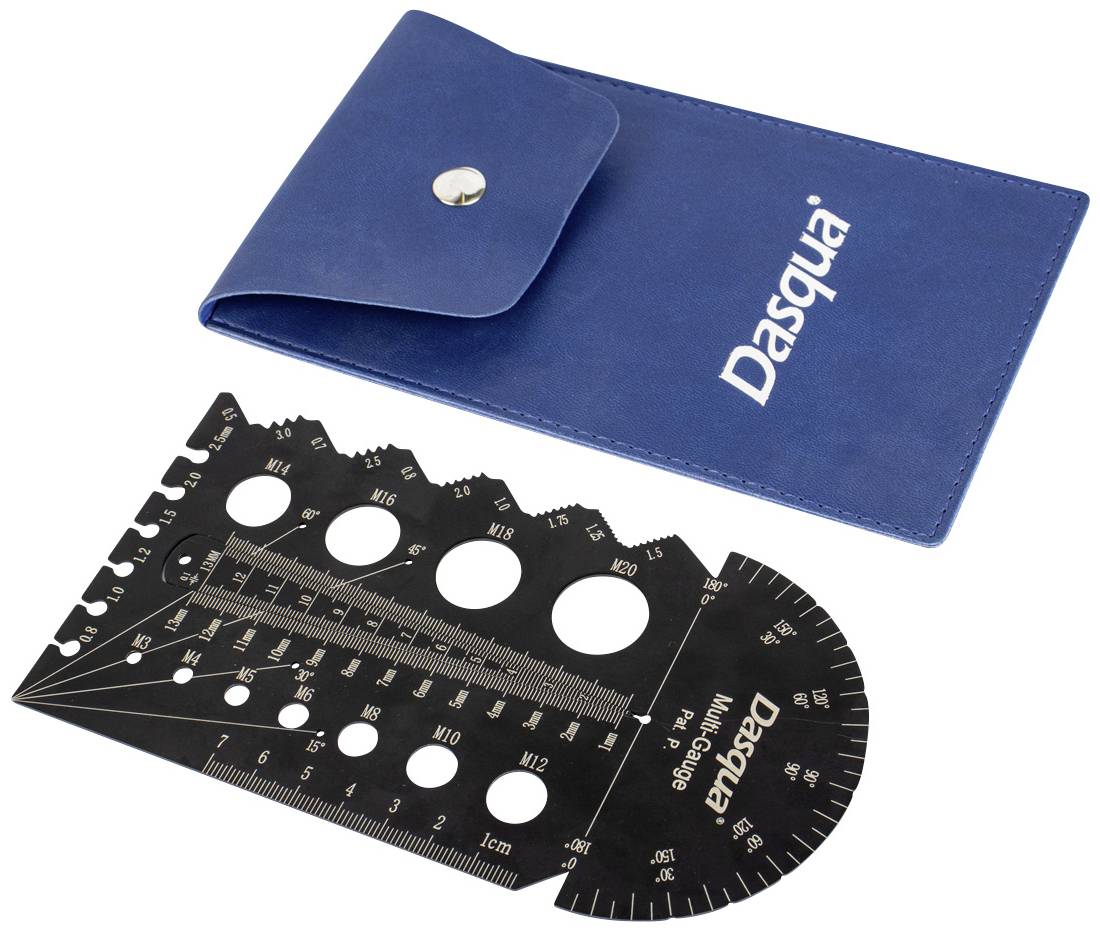

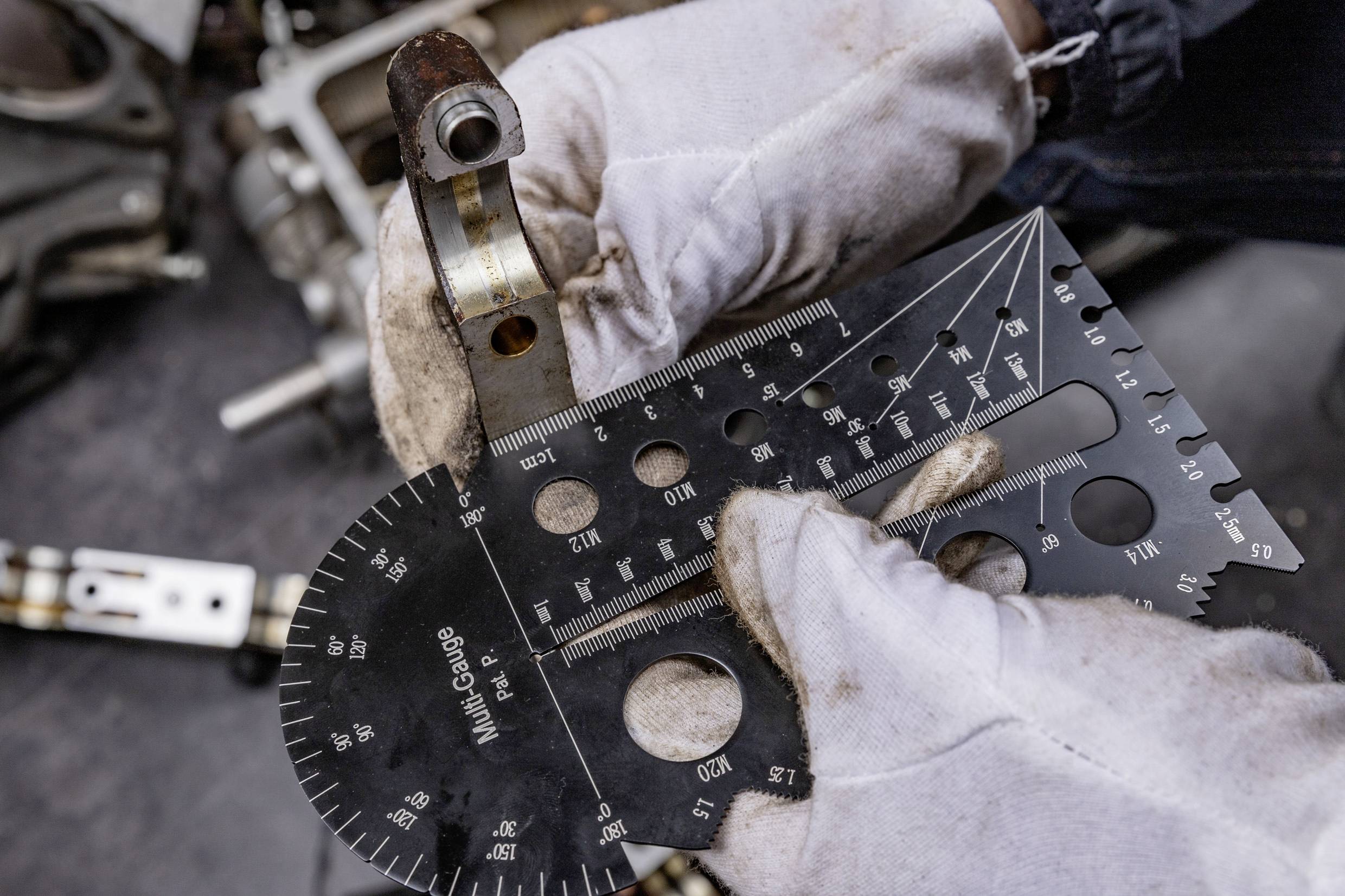

Thread and bolt gauge
Check the slope of screw threads with 10 - 40 TPI
The thread diameter can also be checked (from #5 to #12 and ¼" to 5/8" in 1/16" steps plus 3/4").
The length of a screw thread can be measured with the side of the multi-function gauge.
Wire measurement function for sizing cables, washers and sheet metal with #3 to #24 and 0.03" to 0.035"
Quickly mark lines with hole marks between 15° and 60° in 15° increments
Characteristics
Adjustment rings are supplied
Manufactured in accordance with DIN 878
Small measuring range and higher accuracy
Solid measuring rod
Soft grip surface

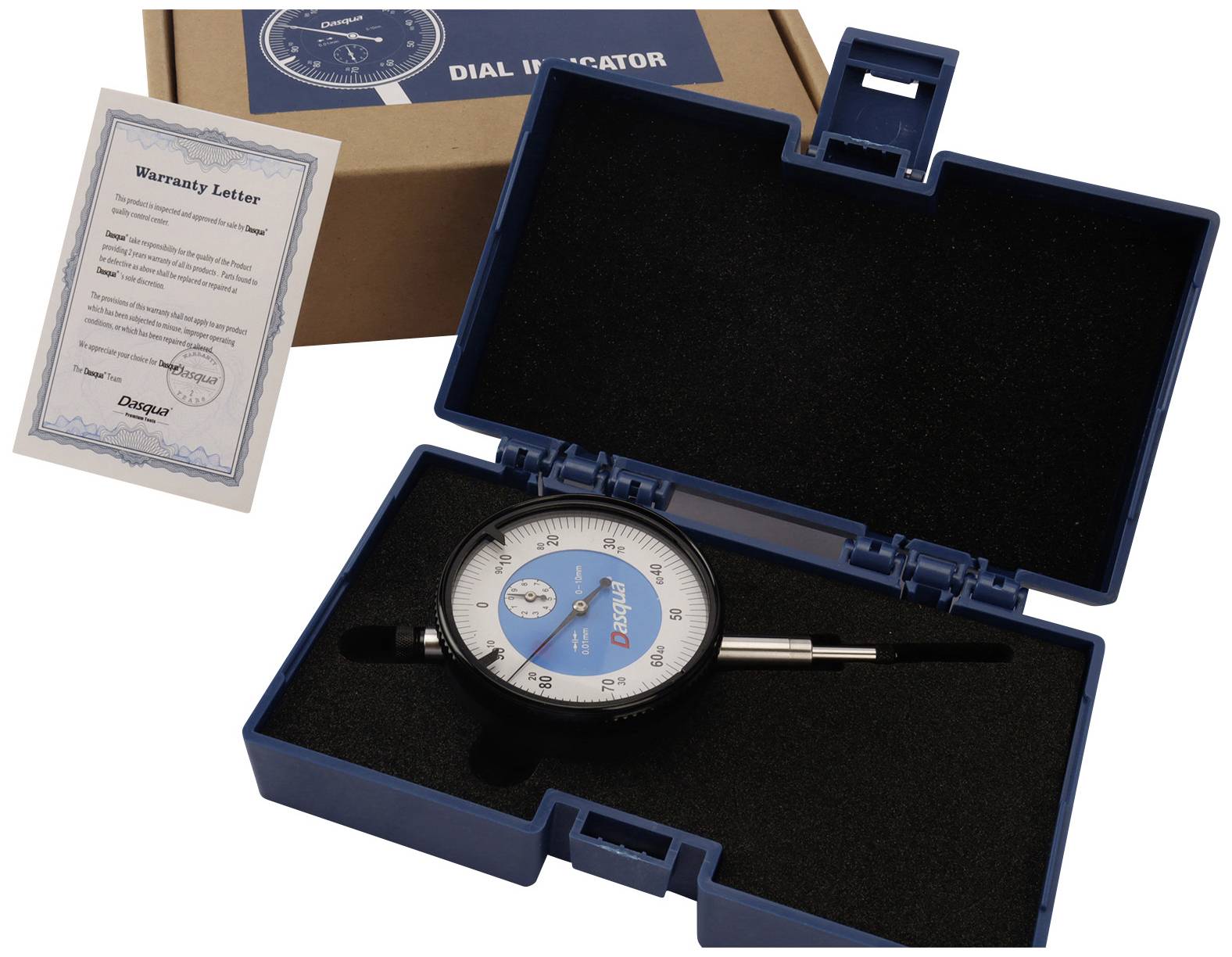

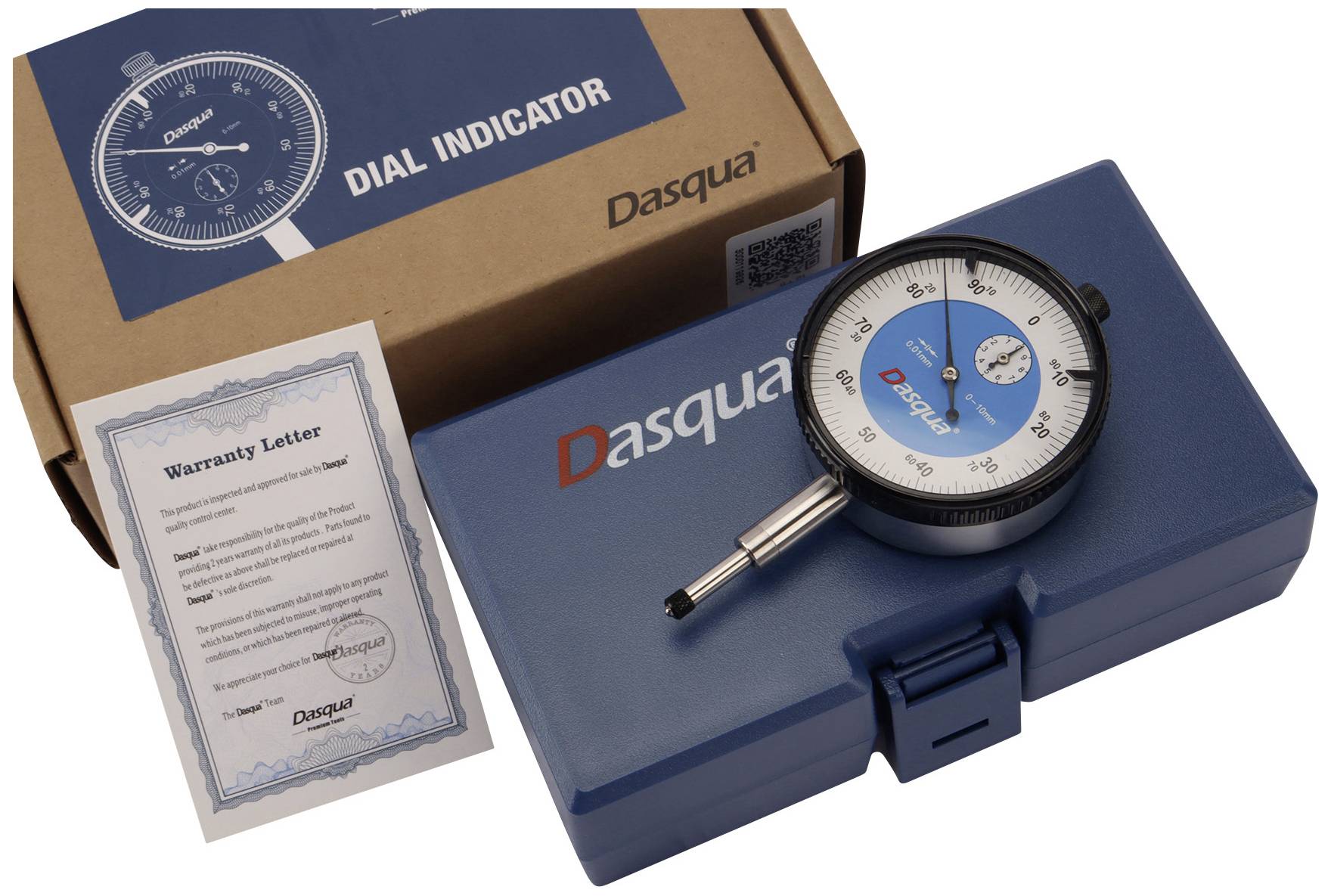

Delivery content
- Dial gauge
- Thread and bolt gauge
